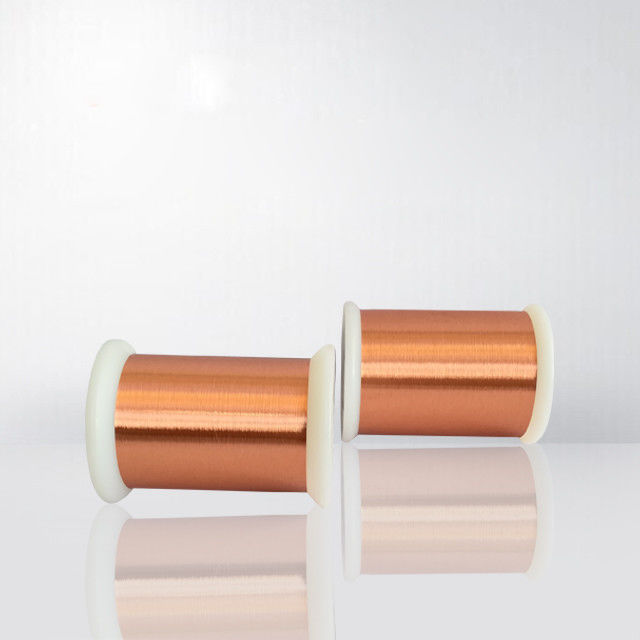

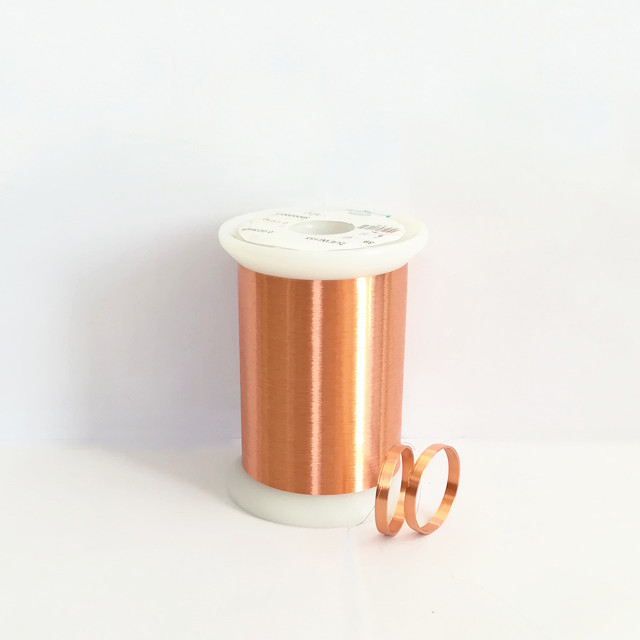

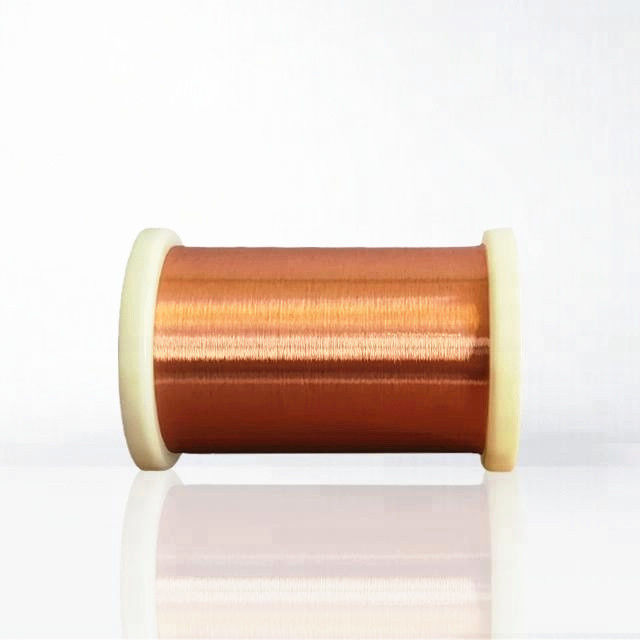

0.012mm Enameled Copper Wire Solderable

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: 0.012mm
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Thermal Class: 155 Insulation: UEW
Size: 0.012mm Conductor: Copper
Solderability: Yes Conductor Type: Solid
High Light:

self solderable enameled magnet wire

,

self solderable enamelled copper winding wire

,

self solderable enamelled copper wire


Product Description

HIGH FREQUENCY 0.012MM ULTRA FINE ENAMELED COPPER WIRE POLYESTER IMIDE SOLDERABLE MAGNET WIRE

We are one of the pioneers in producing ultra-fine enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with a share of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materialsWe surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...



0.012mm Enameled Copper Wire Solderable 0



Characteristics

Technical requests

Test Results





Sample 1

Sample 2

Sample 3

Surface

Good

OK

OK

OK

Bare Wire Diameter

0.012±

0.0005

0.012

0.012

0.012

Coating Thickness

Min.0.002 mm

0.0030

0.0040

0.0035

Overall Diameter

Max.0.017 mm

0.015

0.0160

0.0155

Conductor Resistance

≤ 165.99Ω/m

155.18

154.36

154.78

Elongation

≥ 5 %

8

8

7

Breakdown Voltage

≥110 V

314

305

314

Pinhole Test

≤ 12 hole/5m

0

0

0



Test Items

Technical Requests

Results

Adhesive

Coating layer is good

OK

Cut-through

200℃ 2mins no crack

OK

Heat Shock

175±5℃/30min no crack

OK

Solder Ability

390± 5℃ 2 Sec

OK
