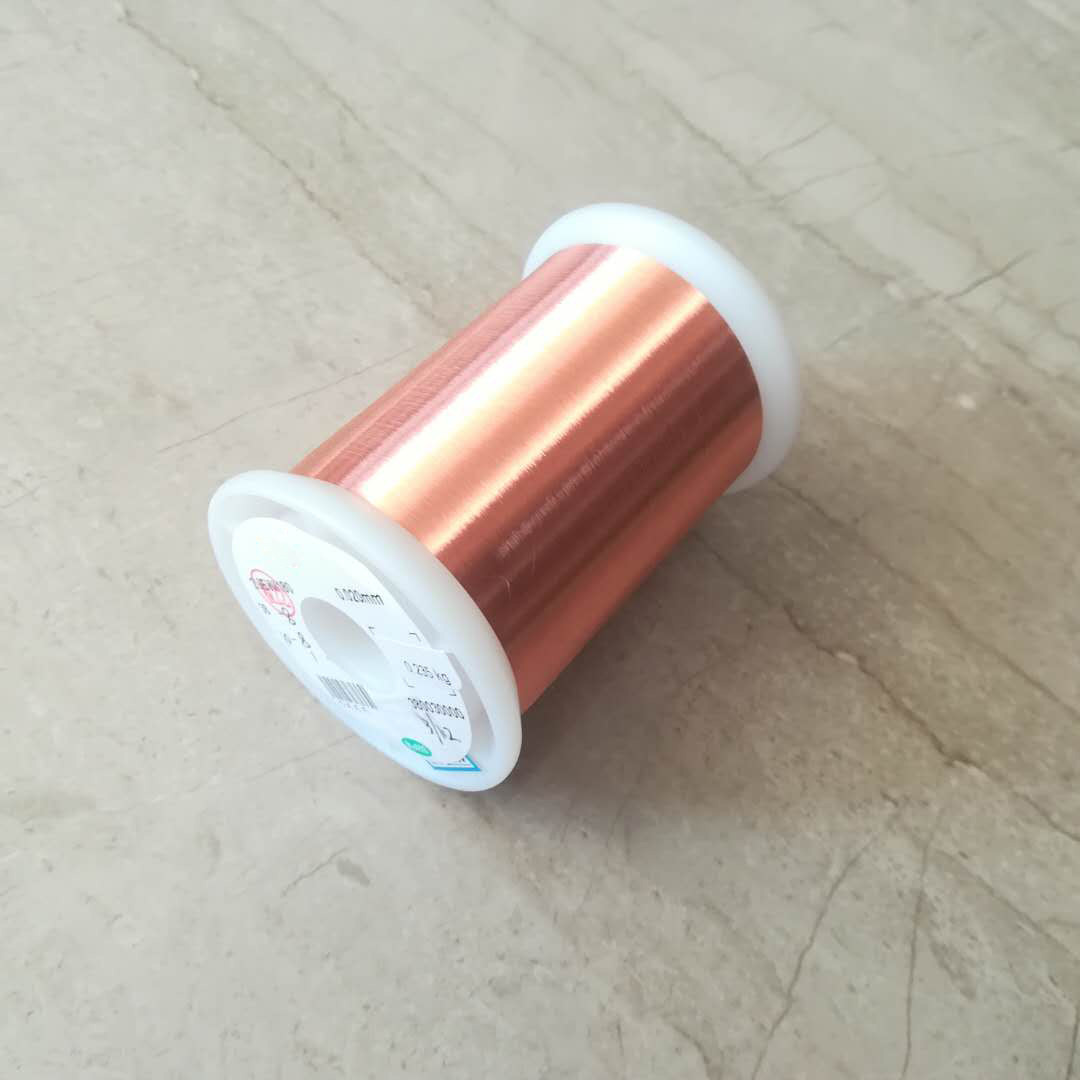

Polyurethane 0.06mm 155°C/180°C Enameled Round Copper Wire for High Purity Copper Insulated Solid

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.06mm

Minimum Order Quantity:	5kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	Polyurethane 0.06mm 155°C/180°C Enameled Round Copper Wire For High Purity Copper Insulated Solid	Thermal Rating:	155°C
Insulation Material:	Polyurethane	Diameter:	0.06mm
Conductor Material:	Copper
Highlight:	Polyurethane enameled round copper wire , Ultra fine insulated solid copper wire , High purity copper wire 155°C 180°C

Product Description

Polyurethane 0.06mm 155°C/180°C Enameled Round Copper Wire

High purity copper insulated solid wire designed for precision applications requiring ultra-fine dimensions and consistent performance.

Applications

Electroacoustic Devices: Miniature receiver/speaker voice coils for TWS Bluetooth headsets, hearing aids, and high-fidelity miniature speakers where wire thickness, weight, and consistency are critical
Miniature Microphone Coils: Precision audio applications
Sensors and Detection Equipment: High-precision current sensors (Rogowski coils) requiring high turn counts for sensitivity while minimizing coil size
Flaw Detection Coils: Precision eddy current detection systems
Medical Sensor Coils: Receiving coils in MRI equipment and biomedical detection probes

Technical Specifications

Characteristics	Technical Requirements	Sample 1	Sample 2	Sample 3
Surface	Good	OK	OK	OK
Bare Wire Diameter	0.060±0.002 mm	0.060	0.060	0.060
Insulation Thickness	≥0.008 mm	0.012	0.011	0.012
Overall Diameter	≤0.074 mm	0.072	0.071	0.072
Electrical Resistance	≤6.415 Ω/m	6.129	6.113	6.102
Elongation	≥14%	22.4	20.5	21.6
Breakdown Voltage	≥500V	1763	1684	1869
Pinbole Test	≤5 holes/5m	0	0	0

Performance Tests

Test Items	Technical Requirements	Results
Adhesive	No crack	OK
Cut-through	200℃ 2mins no crack	OK
Heat Shock	175±5℃/30min no crack	OK
Solder Ability	390±5℃ 2Sec Smooth	OK
