Name: 0.032mm Enameled Copper Magnet Wire For High-Precision Current Sensors
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: 0.032mm
Price: 24.06 USD
Availability: InStock

Detail Information

Product Name:	0.032mm Enameled Copper Magnet Wire For High-Precision Current Sensors	Diameter:	0.032mm
Insulation:	UEW	Thermal Class:	155/180
Type:	Solid
Highlight:	0.032mm enameled copper magnet wire , ultra fine enameled copper wire , high-precision current sensor wire

Product Description

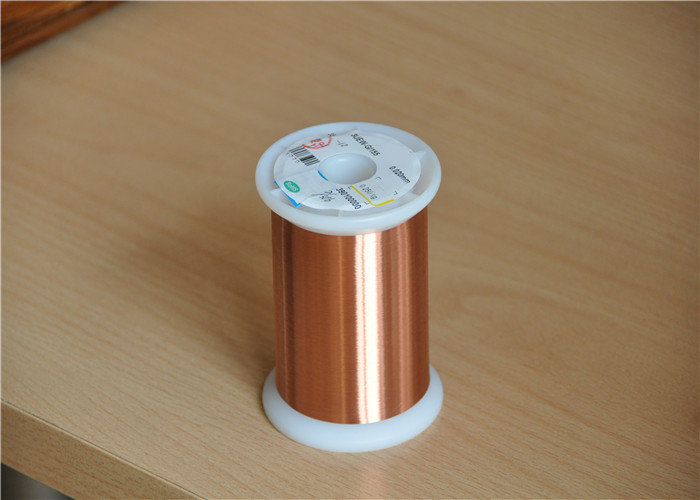

0.032mm Enameled Copper Magnet Wire For High-Precision Current Sensors

This ultra-fine enameled copper magnet wire is specifically engineered for high-precision current sensors, offering exceptional performance in demanding applications.

Core Characteristics

Why use such fine PU enameled wire?

Ultra-fine diameter: Enables miniaturized coil winding, meeting the requirements of product miniaturization and high density.

Polyurethane (PU) Enamel Coating Characteristics

Direct solderability: During high-temperature soldering, the enamel layer can be directly melted and tinned without pre-peeling, greatly improving production efficiency and automation, and avoiding damage to the extremely fine wire.
High-frequency performance: Relatively low dielectric loss, suitable for high-frequency signal transmission.
Solvent resistance: Withstands chemicals in processes such as impregnation and encapsulation.

High conductivity: The copper core provides an excellent conductive foundation.

Technical Specifications & Test Results

Characteristics	Technical Requirements	Sample 1	Sample 2	Conclusion
Surface	Good	OK	OK	OK
Bare Wire Diameter	0.032±0.001 mm	0.032	0.032	OK
Coating Thickness	≥ 0.005 mm	0.009	0.008	OK
Overall Diameter	≤ 0.042 mm	0.041	0.04	OK
Conductor Resistance	≤ 22.843 Ω/m	22.032	22.076	OK
Elongation	≥ 10 %	14	15	OK
Breakdown Voltage	≥ 275 V	1456	1312	OK
Pinhole Test	≤ 5 faults/5m	0	0	OK
Continuity	----	----	----	----

Test Items	Technical Requirements	Result
Adhesive	Coating layer is good	OK
Cut-through	230℃ 2min no breakdown	OK
Heat Shock	200± 5℃/30min no crack	OK
Solder Ability	390± 5℃ 2Sec Smooth	OK
Solvent Resistance	No blister, no expansion, no shed	OK

Tag:

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.032mm

Minimum Order Quantity:	10 Kilogram/Kilograms
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	50KG per week
