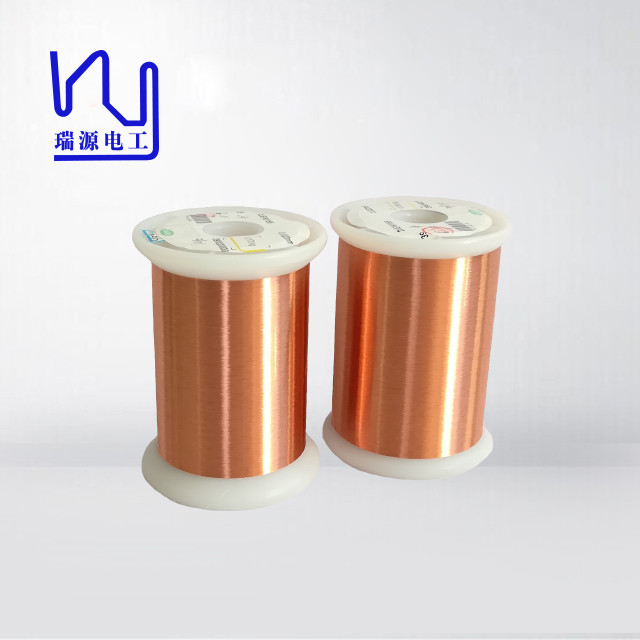

44 AWG Enamelled Copper Winding Wire Solderable Type For Flaw Detection Coils

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	UEW

Minimum Order Quantity:	5kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	44 AWG Enamelled Copper Winding Wire Solderable Type For Flaw Detection Coils	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.05mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Polyurethane
Rated Temperature:	155/180
Highlight:	44 AWG enamelled copper wire , solderable enameled winding wire , ultra fine copper wire for coils

Product Description

44 AWG Enamelled Copper Winding Wire Solderable Type For Flaw Detection Coils

Product Overview

44 AWG Enamelled Copper Winding Wire Solderable Type designed specifically for flaw detection coils and miniature electromagnetic components requiring ultra-fine precision.

Primary Applications

Main applications of enameled copper wire in miniature and precision components:

Miniature Inductors and Ferrite Beads: Used for power filtering and signal processing on ultra-high-density motherboards in smartphones, wearable devices, and ultra-thin laptops
High-Frequency Transformers/Inductors: Miniature winding components in communication equipment (such as 5G modules), network transformers, and RFID tags
Ultra-Miniature Relays and Micromotors: Miniature actuators in medical devices (such as insulin pumps and endoscopes), precision instruments, and micro-robots

Technical Specifications & Test Results

Characteristics	Technical Requirements	Sample 1	Sample 2	Sample 3	Conclusion
Surface	Good	OK	OK	OK	OK
Bare Wire Diameter	0.050±0.001 mm	0.0500	0.0500	0.0500	OK
Coating Thickness	≥ 0.007 mm	0.0110	0.0110	0.0110	OK
Overall Diameter	≤ 0.063 mm	0.0610	0.0610	0.0610	OK
Conductor Resistance	≤ 9.528 Ω/m	8.756	8.863	8.782	OK
Elongation	≥ 12 %	16	17	17	OK
Breakdown Voltage	≥ 400 V	1493	1638	1382	OK
Pinhole Test	≤ 5 hole/5m	0	0	0	OK
