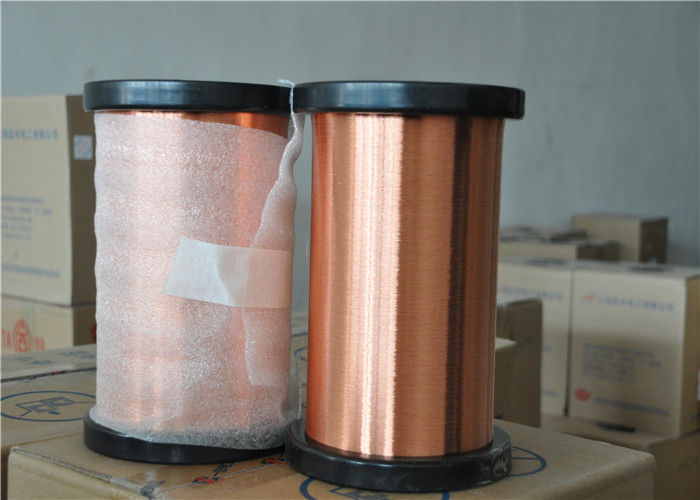

Temperature 155 PU 0.02mm Enameled Copper Wire Magnet Wire For Medical Devices

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	0.020mm

Minimum Order Quantity:	Different types with differet MOQ
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	7 days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Product Name:	Temperature 155 PU 0.02mm Enameled Copper Wire Magnet Wire For Medical Devices	Insulation:	Polyurethane
Conductor Type:	Solid	Temperature:	155
Stock:	Avalable	Diameter:	0.020mm
Material:	Copper
Highlight:	155 temperature enameled copper wire , ultra fine magnet wire , medical device enameled wire

Product Description

Temperature 155 PU 0.02mm Enameled Copper Wire Magnet Wire For Medical Devices

This thin polyurethane enameled copper wire, with a diameter ranging from 0.02mm to 0.09mm, falls into the category of ultra-fine enameled wire. Due to its extremely fine diameter and the properties of the polyurethane enamel coating, it has irreplaceable key applications in advanced electronics and electrical engineering fields requiring high precision, miniaturization, high frequency, or special electrical properties.

Technical Specifications

Characteristics	Technical Requests	Sample 1	Sample 2	Sample 3	Conclusion
Surface	Good	OK	OK	OK	OK
Bare Wire Diameter	0.020±0.001	0.020	0.020	0.020	OK
Overall diameter	≤ 0.027 mm	0.0260	0.0260	0.0260	OK
Insulation thickness	≥ 0.003 mm	0.0060	0.0060	0.0060	OK
Elongation	≥ 8 %	11	10	11	OK
Breakdown voltage	≥ 200 V	1234	1178	1246	OK
Pinbole test	≤ 24 hole/30m	0	0	0	OK
Electrical Resistance	≤ 59.779 Ω/m	55.68	55.73	55.64	OK

Additional Test Results

Test items	Technical Requests	Results	Conclusion
Adhesive	No crack	OK	Approved
Heat Shock	175±5℃/30min no crack	OK
Solder Ability	390±5℃ 2Sec Smooth	OK
Cut-through	200℃ 2min No breakdown	OK
