Polyurethane Super Thin Enameled Copper Wire

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Class 130 - 180

Minimum Order Quantity:	Different types with differet MOQ
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Thermal Class:	130-180℃	Color:	Red/Blue/Green
Size Range:	0.011-0.8mm	Conductor Material:	Copper
Conductor Type:	Solid	Insulation:	Enamel
Highlight:	enamelled copper solderable magnet wire , magnet solderable enamelled copper wire , class 130 solderable magnet wire

Product Description

POLYERETHANE SUPER FINE ENAMELED ROUND COPPER WIRE CLASS 130-180 FOR TRANSFORMERS

FEATURES

1. Very good solderability

2. Dyeability

3. Less pinholes in brine

4. Less dielectric loss in

5. high frequency

CERTIFICATES
ISO 9001-2000, ISO TS 16949, ISO 14001-2004,
UL Approved, RoHS Directive Met

APPLICATION

Switching transformers, information & telecommunications equipment, game machines, consumer goods, inverters and other similar devices.

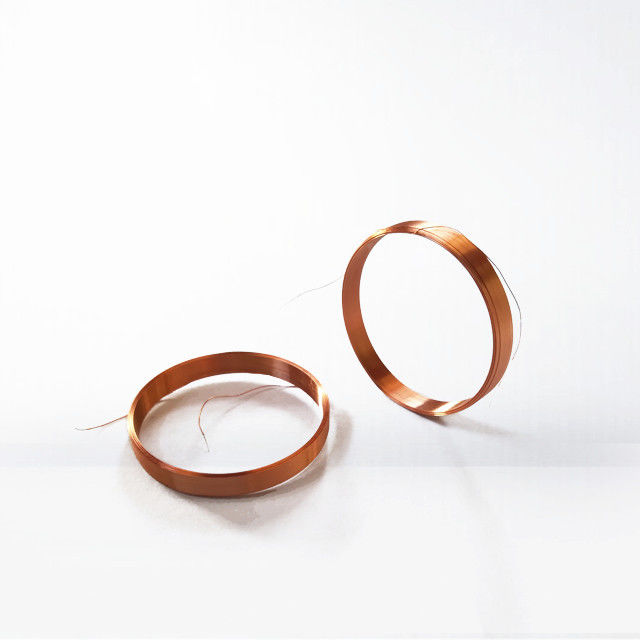

Polyurethane Super Thin Enameled Copper Wire 0

SPECIFICATION

Product Description	Polyurethane Enamelled Copper Round Wire Class 130	Polyurethane Enamelled Copper Round Wire, Class 155	Polyurethane Enamelled Copper Round Wire Class 180	Polyurethane Enamelled Copper Round Wire for Relay
Type	UEW/130	UEW/155	UEW/180	3UEW/155
Size(mm)	0.012-0.800	0.012-0.800	0.012-0.800	0.012-0.800
Thermal Class	130	150	180	155
Cut Through Temperature	170	200	230	200
Heat Shock	155	175	200	175
Solderability Temperature	375±5	375±5	390±5	375±5
Reference Standard	IEC60317-4 NEMAMW75C JIS 3202	EC 60317-20 NEMAMW79C JIS 3202	IEC 60317-51 NEMAMW82C JIS3202	IEC 60317-20 NEMAMW79C JIS 3202
Properties	Very good solderability Dyeability Less pinholes in brine Less dielectric loss in high frequency	Very good solderability Dyeability Less pinholes in brine Less dielectric loss in high frequency	Solderable at 375°C Very high thermal properties	Very good solderability Dyeability Less pinholes in brine Less dielectric loss in high frequency High winding speed
Applications	Micro transformer linear motor, relays, solenoid, micro motors, watch coils, magnet head, instruments coils	Micro motors Transformers Automobile coils	Micro motors Transformers Automobile coils	Appliance relays, communications relays, micro motor
