| Product Name: | Super Magnet Wire For Micor Motors | AWG: | 20-56 |
|---|---|---|---|
| Thermal Rating: | 130/150/180/220 | Application: | Micro Motor |
| Insulation: | UEW/2UEW/3UEW | Stock: | Available |
| Size: | 0.012-0.8mm | ||
| Highlight: | thin coated copper wire,soldering copper wire |
||

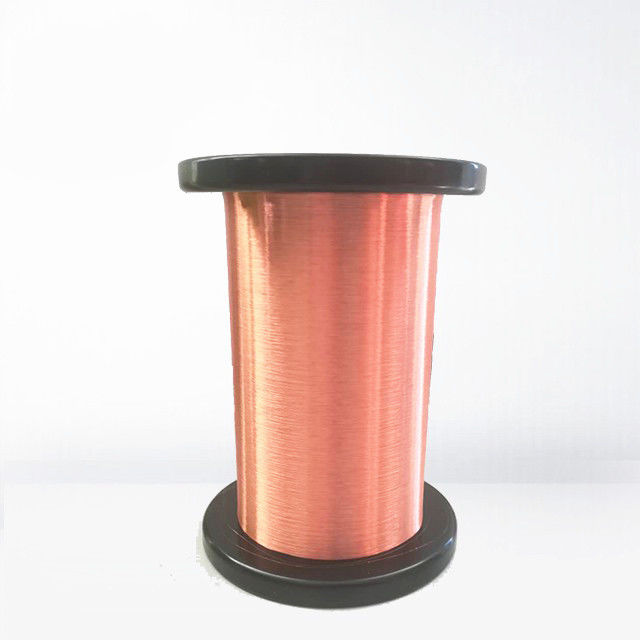

0.012 - 0.8MM ULTRA THIN COATED COPPER WIRE SOLDERABLE ENAMELED WIRE FOR MOTORS
Though many providers work with ultra-fine wire, Ruiyuan is one of a select few with the technical expertise and specialized machinery required to work with 20-56 AWG ultra-fine wire. The ability to use ultra-ultra provides important benefits for design engineers.Our enamelled wire has been widedly used in different types of micor motors, and it's been proved great quality and high stabiliy
FEATURES AND BENEFITS
Excellent bending property
High flexibility of the enamel
Good resistance to abrasion
High mechanical property
CERTIFICATES
ISO 9001-2000, ISO TS 16949, ISO 14001-2004,
UL Approved, RoHS Directive Met
EXECUTIVE STANDARDS
IEC, JIS and NEMA.
APPLICATIONS
120 degree enameled wire for oil-immersed transformer
130,155,180 degree enameled wire are widely used in all kinds of magnet coil
220 degree enameled wire for magnet coils of aviation,military and marine appication
|
Parameter |
SM-130 |
SMG-155 |
SMY-180 |
S(MY/MY)-200 |
SQ-120 |
SY-240 |
|
Standards |
GB/T6109.7 GB/T23312.3 |
60317-12 GB/T6109.2 GB/T23312.4 |
MW 30 60317-8 GB/T6109.5 GB/T23312.5 |
MW 35 60317-13 BS6811 GB/T6109.20 GB/T23312.7 |
MW 15 60317-12 GB/T6109.3 GB/T23312.2 |
MW 16 60317-46 GB/T6109.22 |
|
Thermal Class |
130°C |
155°C |
180°C |
200°C |
120°C |
240°C |
|
Enamel Base Coat |
Polyester |
Modified Polyester |
Polyester-Imide |
Polyester-Imide |
Polyester-formal |
Polyimide |
|
Enamel Top Coat |
|
|
|
Polyester-Imide |
|
|
|
Cross Section Range |
0.1-6.5mm |
|||||
|
Range of insulation thickness |
IEC60317-0-1 GB6108.2-85 |
|||||
|
Performance |
1.Excellent bending property 2.High flexibility of the enamel 3.Good resistance to abrasion 4.High mechanical property |
1.Excellent bending property 2.High flexibility of the enamel 3.Good resistance to abrasion 4.High mechanical property 5.Higher thermal property |
1.High thermal resistance 2.Suitable for windings that are subjected to constantly high temperature and mechanical stress 3.Good chemical resistance |
1.Excellent thermal resistance 2.Suitable for windings that are subjected to constantly high temperature and mechanical stress 3.Good chemical resistance 4.Good resistance to refrigerant and freon |
1.Excellent bending property 2.High flexibility of the enamel 3.Good resistance to abrasion 4.High mechanical property |
1.Excellent thermal resistance suitable for any electric equipments that are constantly exposed to high working temperature 2.Outstanding mechanical and chemical property 3.Good performance against radiation |
|
Application |
1.Dry and oil-immersed 2.Electrical equipment |
1.Dry and oil-immersed 2.Electrical equipment |
1.Windings of high and low voltage DC/AC motor 2.Magnet coil 3.Dry and oil-immersed transformer |
1.Windings of high and low voltage DC/AC motor 2.Magnet coil 3.Dry and oil-immersed transformer 4.Automobile coil 5.Train coil |
1.Dry and oil-immersed transformer 2.Electrical equipment |
1.Windings with service temperature up to 220°C 2.Motor and generator for aviation and marine application 3.Nuclear industry 4.Windings requiring high reliability |
|
Heat shock |
155°C |
175°C |
200°C |
220°C |
155°C |
300°C |
