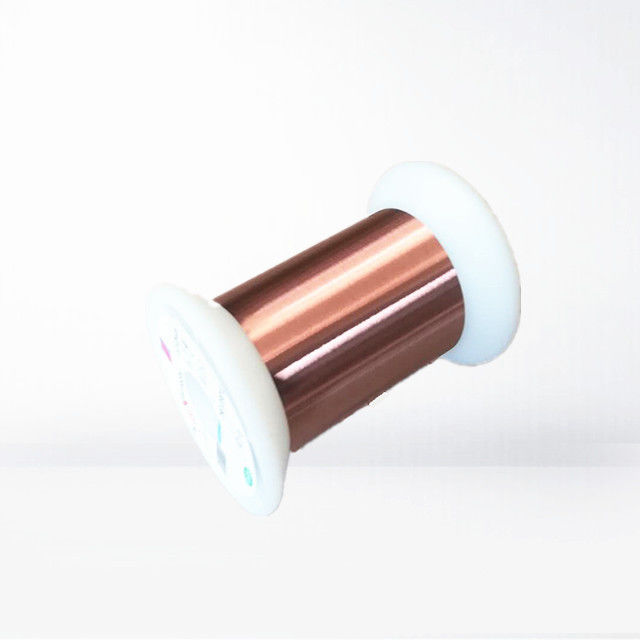

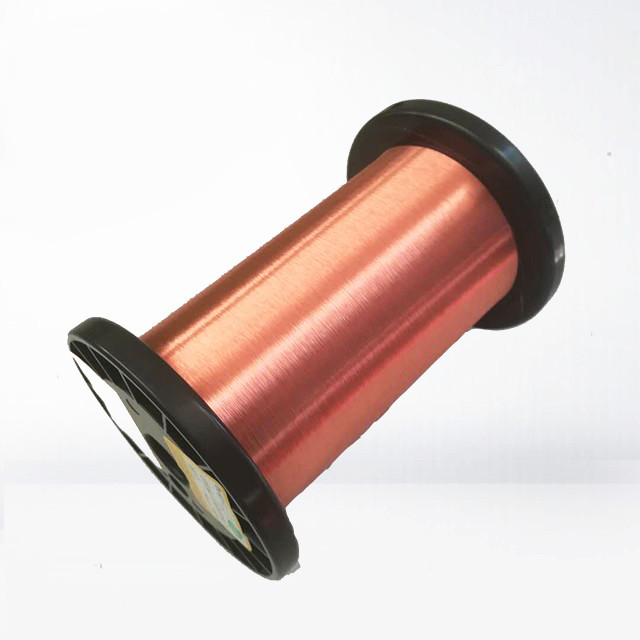

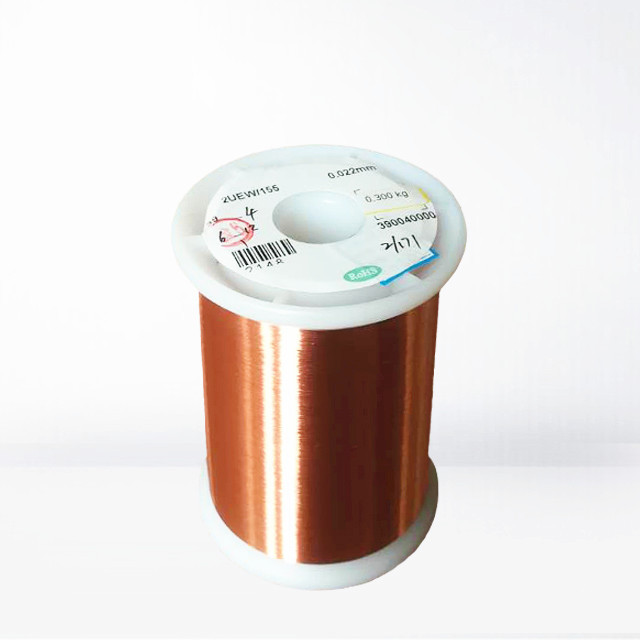

0.012mm - 0.023mm High Stable Ultra Thin Enameled Copper Wire Motor Winding Wire For Touch Screen

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: 0.012mm - 0.023mm
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Product Name: Super Fine Copper Wire For Touch Screen AWG: 26-56
Thermal Rating: 150/180 Size Option: 0.02-0.8mm
Insulation: UEW Stock: Available
Size Range: 0.012-0.02mm
High Light:

round copper wire

,

soldering copper wire


Product Description

0.012- 0.023MM HIGH STABLE ULTRA THIN ENAMELED COPPER WIRE MOTOR WINDING WIRE FOR TOUCH SCREEN

Touch screen plays an important role in modern society, it is common in devices such as .game consoles, personal computers, tablet computers, electronic voting machines, point of sale systems, and smartphones They can also be attached to computers or, as terminals, to networks. They also play a prominent role in the design of digital appliances such as personal digital assistants (PDAs) and somee-readers.Our enamelled wire has been widedly used in different types of touch screen, and it's been proved great quality and high stabiliy

FEATURES AND BENEFITS

  • Very good solderability that can be soldered without removal of coating.
  • Superior "Q" characteristics at high frequencies.
  •  Proved high quality and stability

CERTIFICATES

ISO 9001-2000, ISO TS 16949, ISO 14001-2004,

UL Approved, RoHS Directive Met

EXECUTIVE STANDARDS

IEC, JIS and NEMA.

0.012mm - 0.023mm High Stable Ultra Thin Enameled Copper Wire Motor Winding Wire For Touch Screen 0

Nominal Diameter mm

Tolerance

Min. Increase of Diameter

Max. Overall Diameter

Breakdown Voltage



Elongation

Pin Hole

Electrical Resistance





mm





≥ V



≥%

≤Default/5m

Ω/km (20℃)











Mandrel Method

Twisted Method





Min.

Max.

0.012

----

0.013

0.015

50.000

----

5.00

10.00

142.64

157.65

0.013

----

0.015

0.017

70.000

----

5.00

10.00

118.41

133.98

0.014

----

0.016

0.018

70.000

----

5.00

10.00

102.64

120.45

0.015

----

0.017

0.020

80.000

----

5.00

10.00

89.83

104.41

0.016

----

0.018

0.021

90.000

----

5.00

8.00

74.67

97.56

0.017

----

0.019

0.022

90.000

----

5.00

8.00

66.60

85.75

0.018

----

0.020

0.023

100.000

----

5.00

8.00

59.77

75.95

0.019

----

0.021

0.024

100.000

----

5.00

8.00

53.95

67.75

0.020

0.001

0.022

0.024

100.000

----

8.00

8.00

51.83

60.81
