Detail Information

AWG:	26-56	Thermal Rating:	150/180/220
Color:	Red, Green, Original, Blue	Insulation:	UEW
Stock:	Available	Size Range:	0.012-0.4mm
Highlight:	round copper wire , soldering copper wire

Product Description

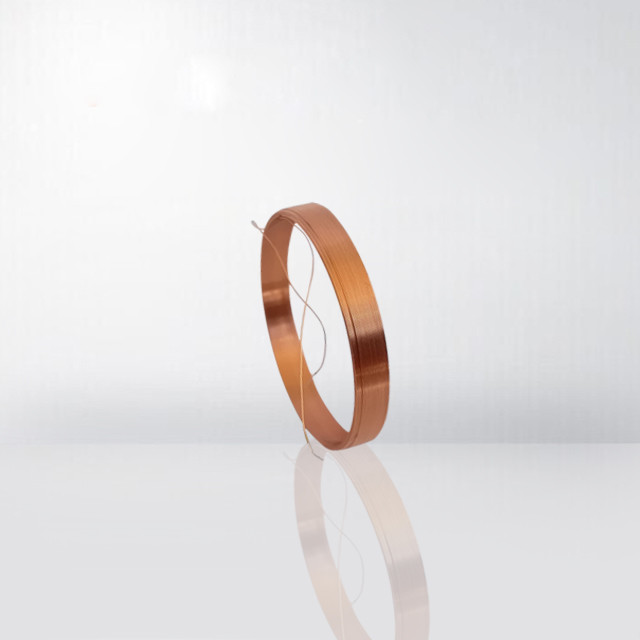

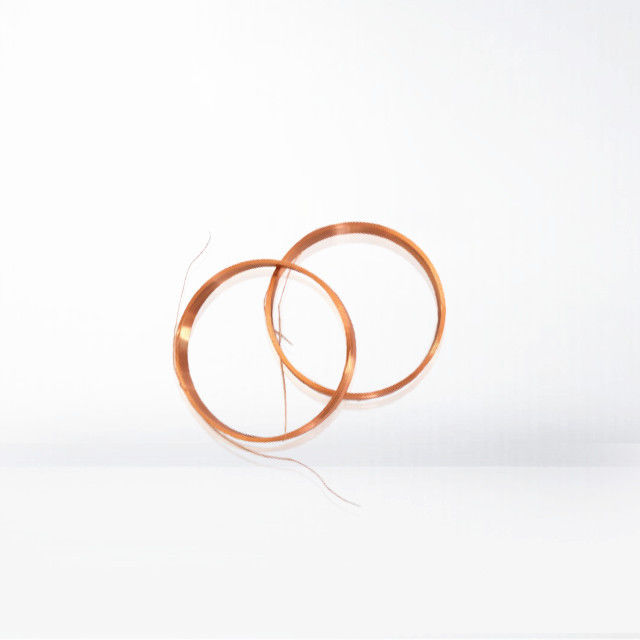

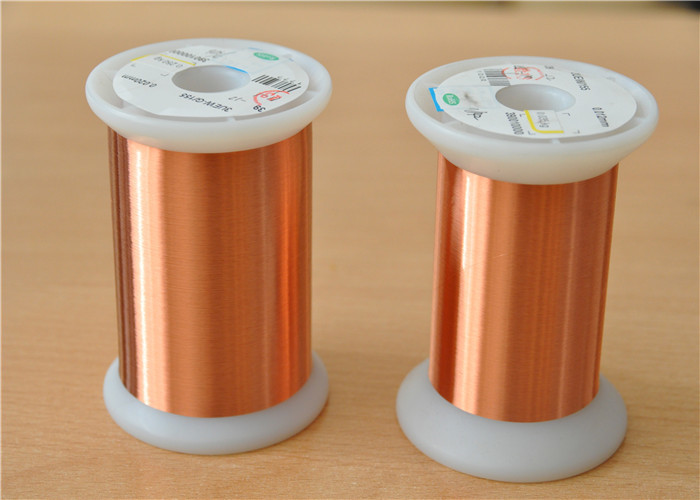

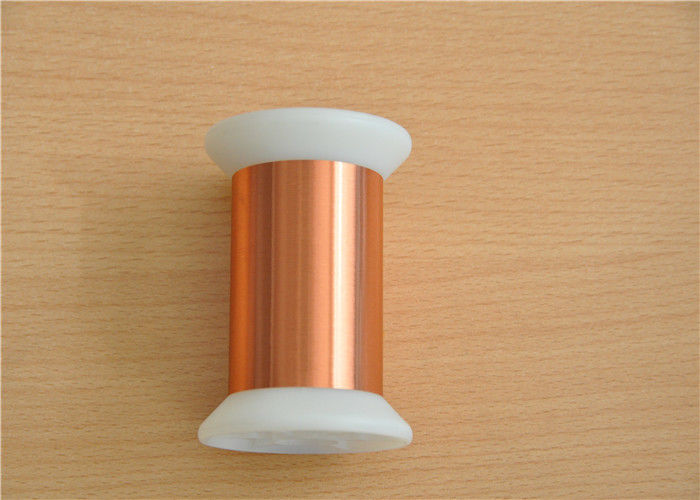

0.012 - 0.4MM SUPER THIN ENAMELED COPPER WIRE FOR ELECTRONIC RELAY IEC APPROVED

A relay can be compared to a vacuum tube and solid state transistor amplifier because both can use a small voltage and current in one circuit to control a large voltage and current in another circuit. However, unlike tubes and transistors, a relay cannot produce a variable output; It can only switch on and off similar to a logic circuit in a computer. But the relay has the advantage of being able to completely isolate its input circuit from its output.Our enamelled wire has been widedly used in Relay and provide strong performanc continually

FEATURE

Very good solderability that can be soldered without removal of coating.
Small tg δ value under high frequency electronic apparatus.
Easy to be dyed to different colors for identifying purpose when soldered.

CERTIFICATION

ISO 9001-2000, ISO TS 16949, ISO 14001-2004,

UL Approved, RoHS Directive Met

IEC, JIS and NEMA.

0.012mm - 0.4mm Super Thin Enamelled Copper Wire For Electronic Relay IEC Approved 0

Nominal Diameter mm	Tolerance	Min. Increase of Diameter	Max. Overall Diameter	Breakdown Voltage		Elongation	Pin Hole	Electrical Resistance
Nominal Diameter mm	mm	Min. Increase of Diameter	Max. Overall Diameter	≥ V		≥%	≤Default/5m	Ω/km (20℃)
				Mandrel Method	Twisted Method			Min.	Max.
0.05	±0.002	0.011	0.067	800	----	12	3	7981	9528
0.055	±0.002	0.011	0.073	800	----	12	3	6642	7815
0.06	±0.002	0.013	0.08	1000	----	14	3	5614	6526
0.065	±0.002	0.014	0.086	1000	----	14	3	4807	5531
0.07	±0.002	0.015	0.091	1000	----	15	3	4163	4747
0.075	±0.002	0.015	0.096	1100	----	15	3	3640	4119
0.08	±0.002	0.015	0.103	1100	----	16	3	3209	3608
0.085	±0.002	0.017	0.11	1200	----	16	3	2851	3187
0.09	±0.002	0.017	0.114	1200	----	16	3	2550	2835
0.095	±0.002	0.017	0.12	1200	----	17	3	2294	2538
0.1	±0.002	0.017	0.127	1200	----	17	3	2074	2286
0.11	±0.002	0.017	0.139	----	2800	17	3	1720	1882
0.12	±0.002	0.017	0.149	----	2800	17	3	1450	1577
0.13	±0.002	0.019	0.159	----	2800	18	3	1239	1340
0.14	±0.002	0.019	0.171	----	3000	19	3	1070	1153
0.15	±0.002	0.019	0.181	----	3000	20	3	934.1	1002
0.16	±0.002	0.021	0.191	----	3000	21	3	822.3	879.4
0.17	±0.003	0.022	0.201	----	3200	22	3	721.1	787.1
0.18	±0.003	0.022	0.211	----	3200	22	3	644.4	700.7
0.19	±0.003	0.022	0.221	----	3200	23	3	579.4	627.8
0.2	±0.003	0.022	0.231	----	3200	23	3	523.7	565.7
0.21	±0.003	0.027	0.248	----	3300	23	3	475.7	512.3
0.22	±0.003	0.027	0.258	----	3300	23	3	434	466.2
0.224	±0.003	0.027	0.262	----	3300	23	3	418.8	449.5
0.23	±0.003	0.03	0.271	----	3500	24	3	397.5	426
0.24	±0.003	0.03	0.281	----	3500	24	3	365.5	390.8
0.25	±0.003	0.03	0.291	----	3500	24	3	337.1	359.8
0.26	±0.004	0.031	0.303	----	3600	25	3	309.6	335
0.27	±0.004	0.031	0.313	----	3600	25	3	287.4	310.3
0.28	±0.004	0.031	0.323	----	3600	25	3	267.6	288.2
0.29	±0.004	0.033	0.335	----	3700	25	3	249.7	268.4
0.3	±0.004	0.033	0.345	----	3700	25	3	233.5	250.6
0.31	±0.004	0.033	0.355	----	3700	25	3	218.9	234.4
0.315	±0.004	0.033	0.36	----	3700	25	3	212.1	227
0.32	±0.004	0.036	0.368	----	4000	25	3	205.6	219.8
0.33	±0.004	0.036	0.378	----	4000	25	3	193.4	206.6
0.35	±0.004	0.036	0.398	----	4000	26	3	172.2	183.4
0.355	±0.004	0.036	0.403	----	4000	26	3	167.4	178.2
0.37	±0.004	0.038	0.421	----	4100	26	3	154.3	163.9
0.38	±0.004	0.038	0.431	----	4100	26	3	146.4	155.3
0.4	±0.004	0.038	0.451	----	4100	27	3	132.2	140

Tag:

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	26-56

Minimum Order Quantity:	Different types with differet MOQ
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T, L/C
Supply Ability:	Satisfy your demand
