| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | 0.05mm |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Product Name: | 0.05mm Super Enamelled Wire | Insulation: | 2UEW/3UEW |
|---|---|---|---|
| AWG: | 43.5 | Temperature: | 150/180/220 |
| Tolorance: | 0.002 | Stock: | Avalable |
| Diameter: | 0.05mm | ||
| Highlight: | 3UEW Super Enamelled Copper Wire,2 UEW Super Enamelled Copper Wire,Ultra Fine Enamelled Round Copper Wire |
||

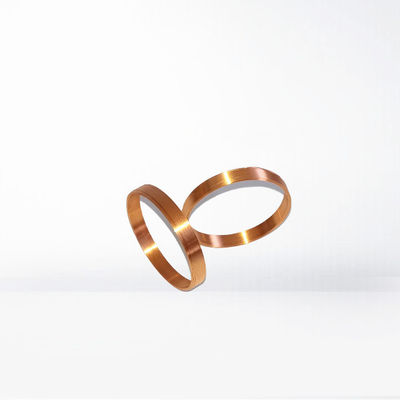

2 UEW 3UEW 0.012 - 0.8MM POLYURETHANE INSULATION SUPER ENAMELED COPPER WIRE FOR AIR CONDITIONER
Though many providers work with ultra-fine wire.Ruiyuan is one of a select few with the technical expertise and specialized machinery required to work with 20-56 AWG ultra-fine wire. The ability to use ultra-ultra provides important benefits for design engineers.High cubage ratio creates possibility of smaller and lighter electronic coils or electric motors. High conductor density in unit area, small size coil can reach high electricity efficiency. Outstanding radiation performance and electromagnetic effects.
FEATURES AND BENEFITS
1. Extream size:0.050mm
2 Miniaturization: it possible to produce smaller device technologies
3. Stable insulation layer and its copper paste
4..Good environment resistant and good stabil
APPLICATION
1. Fan, air-conditioner,
2. electric motor, washing-machine, micro-motor, pump, dry-type transformer, oil transformer.
3. High frequency coils and transformers Relays,
4. Solenoids coil, Small motors, Ignition coils.
|
Nominal Diameter mm |
Tolerance |
Min. Increase of Diameter |
Max. Overall Diameter |
Breakdown Voltage |
|
Elongation |
Pin Hole |
Electrical Resistance |
|
|
|
mm |
|
|
≥ V |
|
≥% |
≤Default/5m |
Ω/km (20℃) |
|
|
|
|
|
|
Mandrel Method |
Twisted Method |
|
|
Min. |
Max. |
|
0.012 |
---- |
0.013 |
0.015 |
50.000 |
---- |
5.00 |
10.00 |
142.64 |
157.65 |
|
0.013 |
---- |
0.015 |
0.017 |
70.000 |
---- |
5.00 |
10.00 |
118.41 |
133.98 |
|
0.014 |
---- |
0.016 |
0.018 |
70.000 |
---- |
5.00 |
10.00 |
102.64 |
120.45 |
|
0.015 |
---- |
0.017 |
0.020 |
80.000 |
---- |
5.00 |
10.00 |
89.83 |
104.41 |
|
0.016 |
---- |
0.018 |
0.021 |
90.000 |
---- |
5.00 |
8.00 |
74.67 |
97.56 |
|
0.017 |
---- |
0.019 |
0.022 |
90.000 |
---- |
5.00 |
8.00 |
66.60 |
85.75 |
|
0.018 |
---- |
0.020 |
0.023 |
100.000 |
---- |
5.00 |
8.00 |
59.77 |
75.95 |
|
0.019 |
---- |
0.021 |
0.024 |
100.000 |
---- |
5.00 |
8.00 |
53.95 |
67.75 |
|
0.020 |
0.001 |
0.022 |
0.024 |
100.000 |
---- |
8.00 |
8.00 |
51.83 |
60.81 |
|
0.050 |
±0.002 |
0.007 |
0.062 |
400.000 |
1200.00 |
12.00 |
5.00 |
7981.00 |
9528.00 |
|
0.055 |
±0.002 |
0.007 |
0.068 |
400.000 |
1200.00 |
12.00 |
5.00 |
6642.00 |
7815.00 |
|
0.060 |
±0.002 |
0.007 |
0.073 |
500.000 |
1200.00 |
14.00 |
5.00 |
5614.00 |
6526.00 |
|
0.065 |
±0.002 |
0.007 |
0.078 |
500.000 |
1200.00 |
14.00 |
5.00 |
4807.00 |
5531.00 |
|
0.070 |
±0.002 |
0.007 |
0.083 |
500.000 |
1200.00 |
15.00 |
5.00 |
4163.00 |
4747.00 |
|
0.075 |
±0.002 |
0.007 |
0.088 |
550.000 |
1200.00 |
15.00 |
5.00 |
3640.00 |
4119.00 |
|
0.080 |
±0.002 |
0.008 |
0.094 |
550.000 |
1200.00 |
16.00 |
5.00 |
3209.00 |
3608.00 |
|
0.085 |
±0.002 |
0.008 |
0.099 |
550.000 |
1200.00 |
16.00 |
5.00 |
2851.00 |
3187.00 |
|
0.090 |
±0.002 |
0.010 |
0.106 |
650.000 |
1200.00 |
16.00 |
5.00 |
2550.00 |
2835.00 |
|
0.095 |
±0.002 |
0.010 |
0.111 |
650.000 |
1200.00 |
17.00 |
5.00 |
2294.00 |
2538.00 |
|
0.100 |
±0.002 |
0.011 |
0.118 |
650.000 |
1200.00 |
17.00 |
5.00 |
2074.00 |
2286.00 |
|
0.110 |
±0.002 |
0.011 |
0.129 |
---- |
1300.00 |
17.00 |
5.00 |
1720.00 |
1882.00 |
|
0.120 |
±0.002 |
0.011 |
0.139 |
---- |
1500.00 |
17.00 |
5.00 |
1450.00 |
1577.00 |
|
0.130 |
±0.002 |
0.011 |
0.149 |
---- |
1500.00 |
18.00 |
5.00 |
1239.00 |
1340.00 |
|
0.140 |
±0.002 |
0.011 |
0.159 |
---- |
1600.00 |
19.00 |
5.00 |
1070.00 |
1153.00 |
|
0.150 |
±0.002 |
0.011 |
0.169 |
---- |
1700.00 |
20.00 |
5.00 |
934.10 |
1002.00 |
|
0.160 |
±0.002 |
0.012 |
0.180 |
---- |
1700.00 |
21.00 |
5.00 |
822.30 |
879.40 |
|
0.170 |
±0.003 |
0.013 |
0.192 |
---- |
2000.00 |
22.00 |
5.00 |
721.10 |
787.10 |
|
0.180 |
±0.003 |
0.014 |
0.204 |
---- |
2000.00 |
22.00 |
5.00 |
644.40 |
700.70 |
|
0.190 |
±0.003 |
0.014 |
0.214 |
---- |
2000.00 |
23.00 |
5.00 |
579.40 |
627.80 |
|
0.200 |
±0.003 |
0.014 |
0.224 |
---- |
2000.00 |
23.00 |
5.00 |
523.70 |
565.70 |
|
0.210 |
±0.003 |
0.014 |
0.234 |
---- |
2000.00 |
23.00 |
5.00 |
475.70 |
512.30 |
|
0.220 |
±0.003 |
0.014 |
0.245 |
---- |
2200.00 |
23.00 |
5.00 |
434.00 |
466.20 |
|
0.230 |
±0.003 |
0.016 |
0.257 |
---- |
2200.00 |
24.00 |
5.00 |
397.50 |
426.00 |
|
0.240 |
±0.003 |
0.016 |
0.267 |
---- |
2200.00 |
24.00 |
5.00 |
365.50 |
390.80 |
|
0.250 |
±0.003 |
0.016 |
0.277 |
---- |
2300.00 |
24.00 |
5.00 |
337.10 |
359.80 |
|
0.260 |
±0.004 |
0.018 |
0.287 |
---- |
2300.00 |
25.00 |
5.00 |
309.60 |
335.00 |
|
0.270 |
±0.004 |
0.018 |
0.297 |
---- |
2300.00 |
25.00 |
5.00 |
287.40 |
310.30 |
|
0.280 |
±0.004 |
0.022 |
0.313 |
---- |
2300.00 |
25.00 |
5.00 |
267.60 |
288.20 |
|
0.290 |
±0.004 |
0.022 |
0.323 |
---- |
2500.00 |
25.00 |
5.00 |
249.70 |
268.40 |
|
0.300 |
±0.004 |
0.022 |
0.334 |
---- |
2500.00 |
25.00 |
5.00 |
233.50 |
250.60 |
|
0.310 |
±0.004 |
0.022 |
0.344 |
---- |
2500.00 |
25.00 |
5.00 |
218.90 |
234.40 |
|
0.315 |
±0.004 |
0.022 |
0.349 |
---- |
2500.00 |
25.00 |
5.00 |
212.10 |
227.00 |
|
0.320 |
±0.004 |
0.023 |
0.355 |
---- |
2700.00 |
25.00 |
5.00 |
205.60 |
219.80 |
|
0.330 |
±0.004 |
0.023 |
0.365 |
---- |
2700.00 |
25.00 |
5.00 |
193.50 |
206.60 |
|
0.350 |
±0.004 |
0.023 |
0.385 |
---- |
2700.00 |
26.00 |
5.00 |
172.20 |
183.40 |
|
0.355 |
±0.004 |
0.023 |
0.390 |
---- |
2700.00 |
26.00 |
5.00 |
167.40 |
178.20 |
|
0.370 |
±0.004 |
0.024 |
0.406 |
---- |
2900.00 |
26.00 |
5.00 |
154.30 |
163.90 |
|
0.380 |
±0.004 |
0.024 |
0.416 |
---- |
2900.00 |
26.00 |
5.00 |
146.40 |
155.30 |
|
0.400 |
±0.004 |
0.025 |
0.437 |
---- |
2900.00 |
27.00 |
5.00 |
132.20 |
140.00 |
|
0.410 |
±0.004 |
0.025 |
0.447 |
---- |
2900.00 |
27.00 |
5.00 |
125.90 |
133.20 |
|
0.440 |
±0.004 |
0.025 |
0.477 |
---- |
2900.00 |
27.00 |
5.00 |
109.50 |
115.50 |
|
0.450 |
±0.004 |
0.025 |
0.487 |
---- |
2900.00 |
27.00 |
5.00 |
104.70 |
110.40 |
|
0.470 |
±0.004 |
0.026 |
0.508 |
---- |
3100.00 |
27.00 |
5.00 |
96.05 |
101.10 |
|
0.500 |
±0.004 |
0.026 |
0.539 |
---- |
3100.00 |
27.00 |
5.00 |
84.96 |
89.23 |
|
0.550 |
±0.004 |
0.027 |
0.590 |
---- |
3300.00 |
28.00 |
5.00 |
70.31 |
73.64 |
|
0.600 |
±0.005 |
0.027 |
0.640 |
---- |
3500.00 |
28.00 |
5.00 |
58.96 |
62.01 |
|
0.650 |
±0.005 |
0.027 |
0.690 |
---- |
3500.00 |
28.00 |
5.00 |
50.30 |
52.77 |
|
0.700 |
±0.005 |
0.029 |
0.742 |
---- |
3500.00 |
28.00 |
5.00 |
43.42 |
45.45 |
|
0.750 |
±0.005 |
0.030 |
0.794 |
---- |
3800.00 |
28.00 |
5.00 |
37.86 |
39.55 |
|
0.800 |
±0.005 |
0.032 |
0.846 |
---- |
3800.00 |
28.00 |
5.00 |
33.30 |
34.73 |
