| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | 0.022mm |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Product Name: | 0.022 Extreme Thin Copper Wire | Insulation: | Polyurethane |
|---|---|---|---|
| AWG: | 51 | Temperature: | 150/180/220 |
| Color: | Red, Green, Original, Blue | Stock: | Avalable |
| Diameter: | 0.022mm | ||
| Highlight: | enamelled winding wire,enameled magnet wire |
||

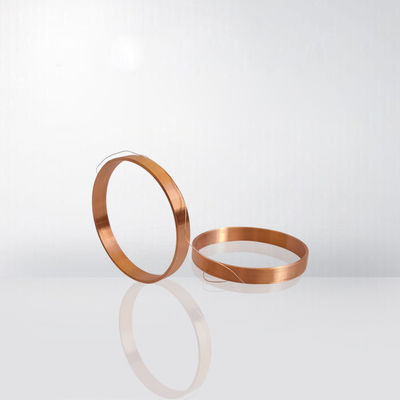

0.022MM POLYURETHANE MOTOR WINDING WIRE ULTRA FINE ENAMELED ROUND COPPER WIRE MAGNET WIRE FOR WINDING
Enameled round copper wire is extruded or drawn from oxygen-free copper rod with certain specification mould,then coated with insulating paint on mang times.the product is widely applied in transformer,electromotors,generator and other similar electrical instruments.Our enamelled wire is produced environmentally compatibly and containes a minimum of pollutants only. Independent laboratories confirm with their corresponding RoHS certificates, that enamelled wire is compatible with the environment.
FEATURES AND BENEFITS
1. Good solderable and colorability. And it reduce small under high frequency.
2. imports foreign technology and equipments cooperating with foreign experts and foreign companies.
3. Good radiation resistance, excellent chemical corrosion.
4. Stable insulation layer and its copper paste
5. Good environment resistant and good stableity.
|
Nominal Diameter mm |
Tolerance |
Min. Increase of Diameter |
Max. Overall Diameter |
Breakdown Voltage |
|
Elongation |
Pin Hole |
Electrical Resistance |
|
|
|
mm |
|
|
≥ V |
|
≥% |
≤Default/5m |
Ω/km (20℃) |
|
|
|
|
|
|
Mandrel Method |
Twisted Method |
|
|
Min. |
Max. |
|
0.012 |
---- |
0.013 |
0.015 |
50.000 |
---- |
5.00 |
10.00 |
142.64 |
157.65 |
|
0.013 |
---- |
0.015 |
0.017 |
70.000 |
---- |
5.00 |
10.00 |
118.41 |
133.98 |
|
0.014 |
---- |
0.016 |
0.018 |
70.000 |
---- |
5.00 |
10.00 |
102.64 |
120.45 |
|
0.015 |
---- |
0.017 |
0.020 |
80.000 |
---- |
5.00 |
10.00 |
89.83 |
104.41 |
|
0.016 |
---- |
0.018 |
0.021 |
90.000 |
---- |
5.00 |
8.00 |
74.67 |
97.56 |
|
0.017 |
---- |
0.019 |
0.022 |
90.000 |
---- |
5.00 |
8.00 |
66.60 |
85.75 |
|
0.018 |
---- |
0.020 |
0.023 |
100.000 |
---- |
5.00 |
8.00 |
59.77 |
75.95 |
|
0.019 |
---- |
0.021 |
0.024 |
100.000 |
---- |
5.00 |
8.00 |
53.95 |
67.75 |
|
0.020 |
0.001 |
0.022 |
0.024 |
100.000 |
---- |
8.00 |
8.00 |
51.83 |
60.81 |
|
0.050 |
±0.002 |
0.007 |
0.062 |
400.000 |
1200.00 |
12.00 |
5.00 |
7981.00 |
9528.00 |
|
0.055 |
±0.002 |
0.007 |
0.068 |
400.000 |
1200.00 |
12.00 |
5.00 |
6642.00 |
7815.00 |
|
0.060 |
±0.002 |
0.007 |
0.073 |
500.000 |
1200.00 |
14.00 |
5.00 |
5614.00 |
6526.00 |
|
0.065 |
±0.002 |
0.007 |
0.078 |
500.000 |
1200.00 |
14.00 |
5.00 |
4807.00 |
5531.00 |
|
0.070 |
±0.002 |
0.007 |
0.083 |
500.000 |
1200.00 |
15.00 |
5.00 |
4163.00 |
4747.00 |
|
0.075 |
±0.002 |
0.007 |
0.088 |
550.000 |
1200.00 |
15.00 |
5.00 |
3640.00 |
4119.00 |
|
0.080 |
±0.002 |
0.008 |
0.094 |
550.000 |
1200.00 |
16.00 |
5.00 |
3209.00 |
3608.00 |
|
0.085 |
±0.002 |
0.008 |
0.099 |
550.000 |
1200.00 |
16.00 |
5.00 |
2851.00 |
3187.00 |
|
0.090 |
±0.002 |
0.010 |
0.106 |
650.000 |
1200.00 |
16.00 |
5.00 |
2550.00 |
2835.00 |
|
0.095 |
±0.002 |
0.010 |
0.111 |
650.000 |
1200.00 |
17.00 |
5.00 |
2294.00 |
2538.00 |
|
0.100 |
±0.002 |
0.011 |
0.118 |
650.000 |
1200.00 |
17.00 |
5.00 |
2074.00 |
2286.00 |
|
0.110 |
±0.002 |
0.011 |
0.129 |
---- |
1300.00 |
17.00 |
5.00 |
1720.00 |
1882.00 |
|
0.120 |
±0.002 |
0.011 |
0.139 |
---- |
1500.00 |
17.00 |
5.00 |
1450.00 |
1577.00 |
|
0.130 |
±0.002 |
0.011 |
0.149 |
---- |
1500.00 |
18.00 |
5.00 |
1239.00 |
1340.00 |
|
0.140 |
±0.002 |
0.011 |
0.159 |
---- |
1600.00 |
19.00 |
5.00 |
1070.00 |
1153.00 |
|
0.150 |
±0.002 |
0.011 |
0.169 |
---- |
1700.00 |
20.00 |
5.00 |
934.10 |
1002.00 |
|
0.160 |
±0.002 |
0.012 |
0.180 |
---- |
1700.00 |
21.00 |
5.00 |
822.30 |
879.40 |
|
0.170 |
±0.003 |
0.013 |
0.192 |
---- |
2000.00 |
22.00 |
5.00 |
721.10 |
787.10 |
|
0.180 |
±0.003 |
0.014 |
0.204 |
---- |
2000.00 |
22.00 |
5.00 |
644.40 |
700.70 |
|
0.190 |
±0.003 |
0.014 |
0.214 |
---- |
2000.00 |
23.00 |
5.00 |
579.40 |
627.80 |
|
0.200 |
±0.003 |
0.014 |
0.224 |
---- |
2000.00 |
23.00 |
5.00 |
523.70 |
565.70 |
|
0.210 |
±0.003 |
0.014 |
0.234 |
---- |
2000.00 |
23.00 |
5.00 |
475.70 |
512.30 |
|
0.220 |
±0.003 |
0.014 |
0.245 |
---- |
2200.00 |
23.00 |
5.00 |
434.00 |
466.20 |
|
0.230 |
±0.003 |
0.016 |
0.257 |
---- |
2200.00 |
24.00 |
5.00 |
397.50 |
426.00 |
|
0.240 |
±0.003 |
0.016 |
0.267 |
---- |
2200.00 |
24.00 |
5.00 |
365.50 |
390.80 |
|
0.250 |
±0.003 |
0.016 |
0.277 |
---- |
2300.00 |
24.00 |
5.00 |
337.10 |
359.80 |
|
0.260 |
±0.004 |
0.018 |
0.287 |
---- |
2300.00 |
25.00 |
5.00 |
309.60 |
335.00 |
|
0.270 |
±0.004 |
0.018 |
0.297 |
---- |
2300.00 |
25.00 |
5.00 |
287.40 |
310.30 |
|
0.280 |
±0.004 |
0.022 |
0.313 |
---- |
2300.00 |
25.00 |
5.00 |
267.60 |
288.20 |
|
0.290 |
±0.004 |
0.022 |
0.323 |
---- |
2500.00 |
25.00 |
5.00 |
249.70 |
268.40 |
|
0.300 |
±0.004 |
0.022 |
0.334 |
---- |
2500.00 |
25.00 |
5.00 |
233.50 |
250.60 |
|
0.310 |
±0.004 |
0.022 |
0.344 |
---- |
2500.00 |
25.00 |
5.00 |
218.90 |
234.40 |
|
0.315 |
±0.004 |
0.022 |
0.349 |
---- |
2500.00 |
25.00 |
5.00 |
212.10 |
227.00 |
|
0.320 |
±0.004 |
0.023 |
0.355 |
---- |
2700.00 |
25.00 |
5.00 |
205.60 |
219.80 |
|
0.330 |
±0.004 |
0.023 |
0.365 |
---- |
2700.00 |
25.00 |
5.00 |
193.50 |
206.60 |
|
0.350 |
±0.004 |
0.023 |
0.385 |
---- |
2700.00 |
26.00 |
5.00 |
172.20 |
183.40 |
|
0.355 |
±0.004 |
0.023 |
0.390 |
---- |
2700.00 |
26.00 |
5.00 |
167.40 |
178.20 |
|
0.370 |
±0.004 |
0.024 |
0.406 |
---- |
2900.00 |
26.00 |
5.00 |
154.30 |
163.90 |
|
0.380 |
±0.004 |
0.024 |
0.416 |
---- |
2900.00 |
26.00 |
5.00 |
146.40 |
155.30 |
|
0.400 |
±0.004 |
0.025 |
0.437 |
---- |
2900.00 |
27.00 |
5.00 |
132.20 |
140.00 |
|
0.410 |
±0.004 |
0.025 |
0.447 |
---- |
2900.00 |
27.00 |
5.00 |
125.90 |
133.20 |
|
0.440 |
±0.004 |
0.025 |
0.477 |
---- |
2900.00 |
27.00 |
5.00 |
109.50 |
115.50 |
|
0.450 |
±0.004 |
0.025 |
0.487 |
---- |
2900.00 |
27.00 |
5.00 |
104.70 |
110.40 |
|
0.470 |
±0.004 |
0.026 |
0.508 |
---- |
3100.00 |
27.00 |
5.00 |
96.05 |
101.10 |
|
0.500 |
±0.004 |
0.026 |
0.539 |
---- |
3100.00 |
27.00 |
5.00 |
84.96 |
89.23 |
|
0.550 |
±0.004 |
0.027 |
0.590 |
---- |
3300.00 |
28.00 |
5.00 |
70.31 |
73.64 |
|
0.600 |
±0.005 |
0.027 |
0.640 |
---- |
3500.00 |
28.00 |
5.00 |
58.96 |
62.01 |
|
0.650 |
±0.005 |
0.027 |
0.690 |
---- |
3500.00 |
28.00 |
5.00 |
50.30 |
52.77 |
|
0.700 |
±0.005 |
0.029 |
0.742 |
---- |
3500.00 |
28.00 |
5.00 |
43.42 |
45.45 |
|
0.750 |
±0.005 |
0.030 |
0.794 |
---- |
3800.00 |
28.00 |
5.00 |
37.86 |
39.55 |
|
0.800 |
±0.005 |
0.032 |
0.846 |
---- |
3800.00 |
28.00 |
5.00 |
33.30 |
34.73 |
