Detail Information

AWG:	20-56	Thermal Rating:	150/180/220
Color:	Red, Green, Original, Blue	Insulation:	UEW/2UEW/3UEW
Tolerance:	Accoring To Different Standards	Size Range:	0.012-0.8mm
Highlight:	thin coated copper wire , soldering copper wire

Product Description

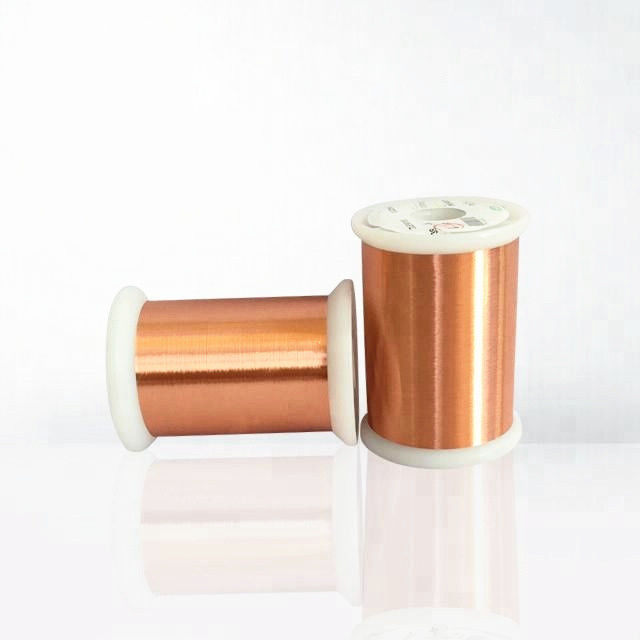

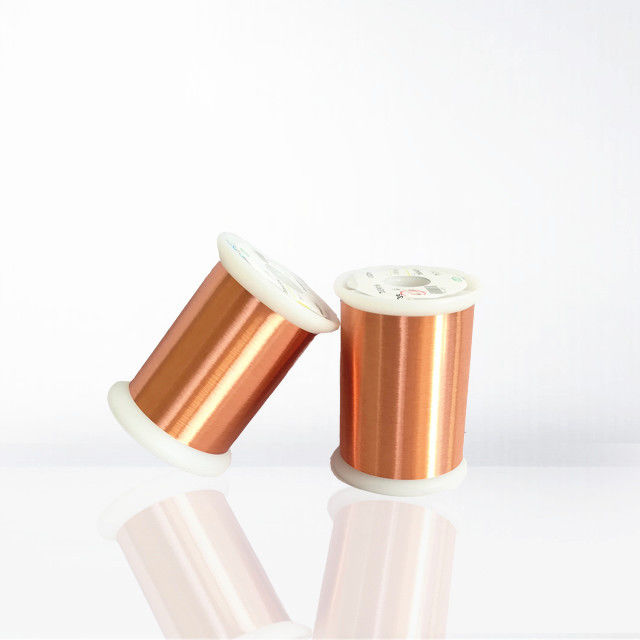

COLORFUL SOLDERING COPPER WIRE 0.012MM-0.80MM ENAMELED COPPER WINDING WIRE
Enameled wire is a copper or aluminium wire coated with a very thin layer of insulation. It is used in the construction of transformers, inductors, motors, speakers, hard disk head actuators, electromagnets, and other applications that require tight coils of insulated wire.The wire itself is most often fully annealed, electrolytically refined copper. Aluminium magnet wire is sometimes used for large transformers and motors. Fine and superfine copper wire is the neverous system of modern electronic industry and are the main materials widely used in motor industry, net communication,home appliance, office equipment and other electronic industries, which are the maiin materials of electronic relays, micro motor, electronic transformers, all kinds of coils and other small and high precision electronic components manufacuturing.

APPLICATION

Enameled wire is used in winding of electric

motor, transformers, inductors, generators, headphones, loudspeaker coils, hardspeaker coils, hard drive head positioners, electromagnets, and other devices.

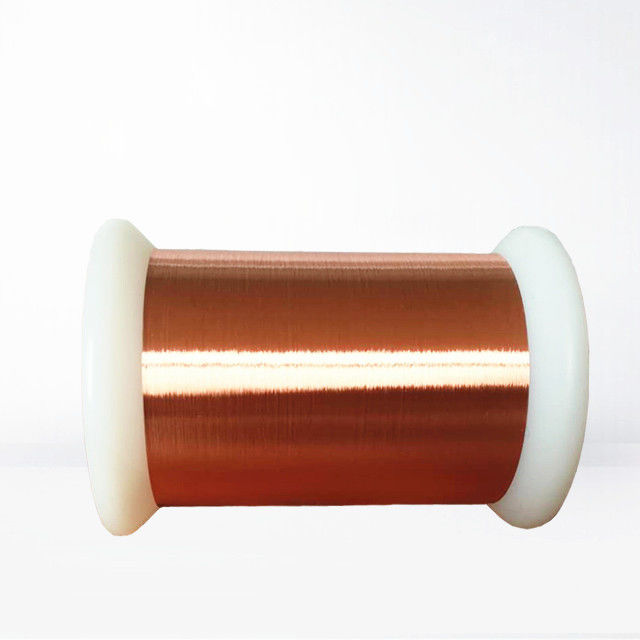

Colorful Soldering Copper Wire , 0.012mm - 0.80mm Enamelled Copper Winding Wire 0

SPECIFICATION

Nominal Diameter mm	Tolerance	Min. Increase of Diameter	Max. Overall Diameter	Breakdown Voltage		Elongation	Pin Hole	Electrical Resistance
Nominal Diameter mm	mm	Min. Increase of Diameter	Max. Overall Diameter	≥ V		≥%	≤Default/5m	Ω/km (20℃)
				Mandrel Method	Twisted Method			Min.	Max.
0.012	----	0.013	0.015	50	----	5	10	142.64	157.65
0.013	----	0.015	0.017	70	----	5	10	118.41	133.98
0.014	----	0.016	0.018	70	----	5	10	102.64	120.45
0.015	----	0.017	0.02	80	----	5	10	89.83	104.41
0.016	----	0.018	0.021	90	----	5	8	74.67	97.56
0.017	----	0.019	0.022	90	----	5	8	66.6	85.75
0.018	----	0.02	0.023	100	----	5	8	59.77	75.95
0.019	----	0.021	0.024	100	----	5	8	53.95	67.75
0.05	±0.002	0.007	0.062	400	1200	12	5	7981	9528
0.055	±0.002	0.007	0.068	400	1200	12	5	6642	7815
0.06	±0.002	0.007	0.073	500	1200	14	5	5614	6526
0.065	±0.002	0.007	0.078	500	1200	14	5	4807	5531
0.07	±0.002	0.007	0.083	500	1200	15	5	4163	4747
0.075	±0.002	0.007	0.088	550	1200	15	5	3640	4119
0.08	±0.002	0.008	0.094	550	1200	16	5	3209	3608
0.085	±0.002	0.008	0.099	550	1200	16	5	2851	3187
0.09	±0.002	0.01	0.106	650	1200	16	5	2550	2835
0.095	±0.002	0.01	0.111	650	1200	17	5	2294	2538
0.1	±0.002	0.011	0.118	650	1200	17	5	2074	2286
0.11	±0.002	0.011	0.129	----	1300	17	5	1720	1882
0.12	±0.002	0.011	0.139	----	1500	17	5	1450	1577
0.13	±0.002	0.011	0.149	----	1500	18	5	1239	1340
0.14	±0.002	0.011	0.159	----	1600	19	5	1070	1153
0.15	±0.002	0.011	0.169	----	1700	20	5	934.1	1002
0.16	±0.002	0.012	0.18	----	1700	21	5	822.3	879.4

Tag:

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	0.012-0.08mm

Minimum Order Quantity:	Different types with differet MOQ
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation, T/T, L/C
Supply Ability:	Satisfy your demand

Colorful Soldering Copper Wire , 0.012mm - 0.80mm Enamelled Copper Winding Wire
