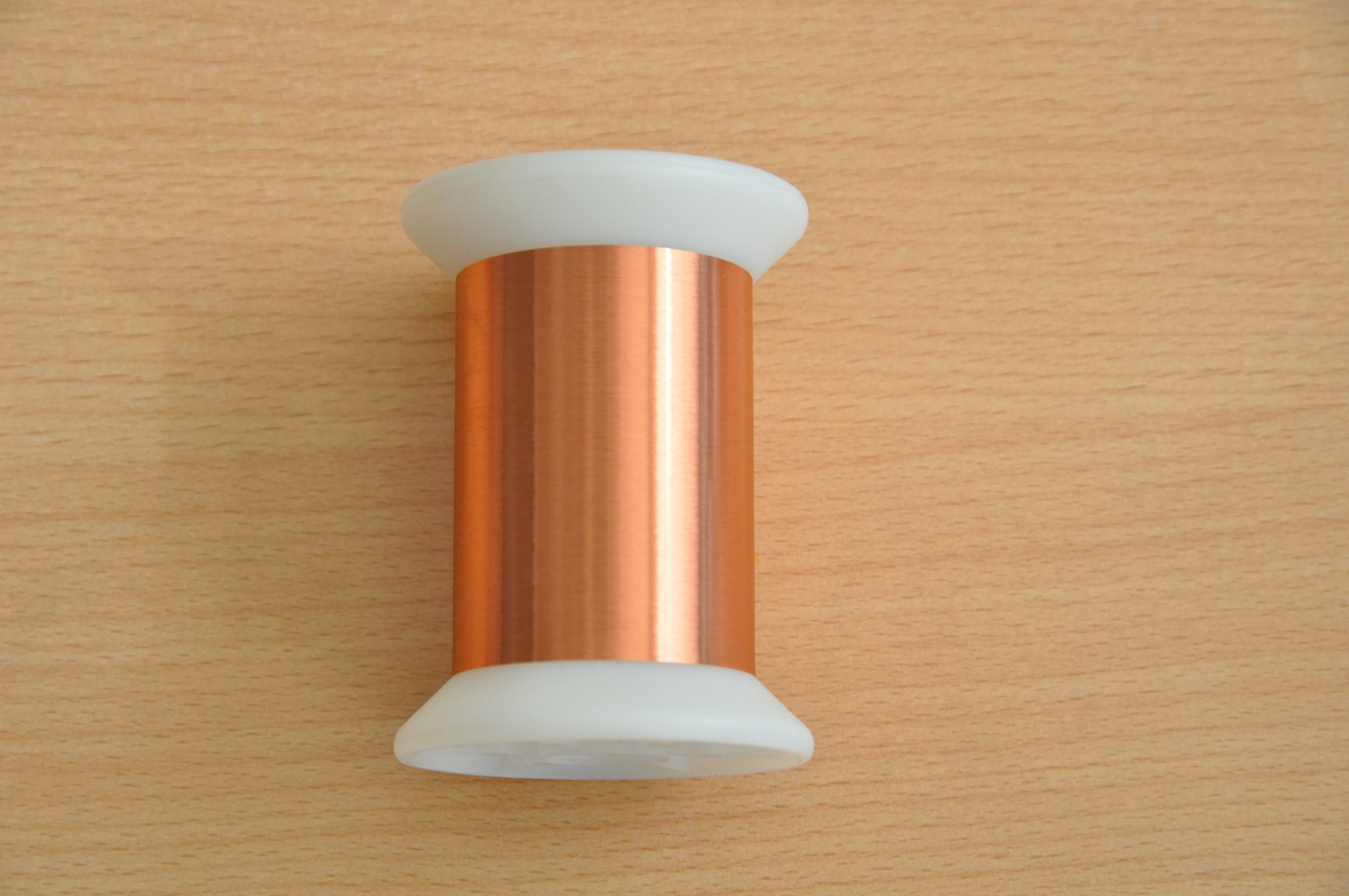

Solderable UEW 155 Insulation 0.019mm Super Thin Enameled Copper Wire

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.019mm
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: Solderable UEW 155 Insulation 0.019mm Super Thin Enameled Copper Wire Thermal Rating: 155
Insulation Material: Polyurethane Diameter: 0.019mm
Conductor Material: Copper Key Word: Solderable UEW 155 Insulation 0.019mm Super Thin Enameled Copper Wire
Type: Solderable UEW 155 Insulation 0.019mm Super Thin Enameled Copper Wire
Highlight:

Solderable Enameled Copper Wire

,

UEW 155 Enameled Copper Wire

,

0.019mm Enameled Copper Wire


Product Description

Solderable UEW 155 Insulation 0.019mm Super Thin Enameled Copper Wire

In the field of electrical engineering and precision electronics, the quality of the materials used has a major impact on the performance and reliability of the equipment. Our ultra-fine enameled copper wire is at the forefront of this innovation, and the product is an excellent example of insulation performance and durability. With diameters ranging from an astonishing 0.012 mm to 1.3 mm, our enameled wire is designed to meet the stringent requirements of modern technology, especially in precision electronic instruments and equipment.

Nominal diameter(mm) 0.019
Overall diameter





Grade 1

Min(mm) 0.021
Max(mm) 0.023
Grade 2

Min(mm) 0.024
Max(mm) 0.026
Grade 3

Min(mm) 0.027
Max(mm) 0.028
Resistance at 20℃


Nom(Ohm/m) 60.29
Min(Ohm/m) 54.26
Max(Ohm/m) 66.32
Breakdown voltage


Grade 1 Min.(v) 115
Grade 2 Min.(v) 240
Grade 3 Min.(v) 380
