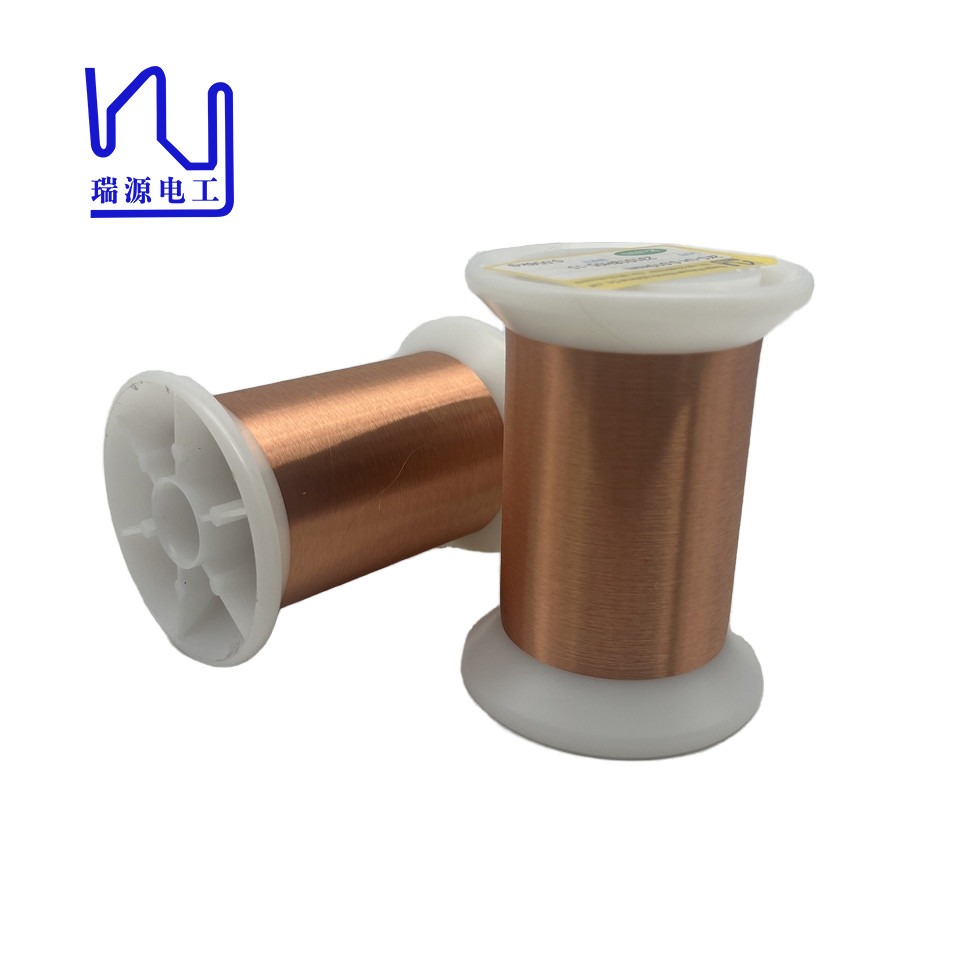

Solderable Enamelled Copper Magnetic Wire UEW 155 Insulation 0.019mm Copper Wire

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.019mm

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	Solderable Enamelled Copper Magnetic Wire UEW 155 Insulation 0.019mm Copper Wire	Thermal Rating:	155
Insulation Material:	Polyurethane	Diameter:	0.019mm
Conductor Material:	Copper	Key Word:	Solderable Enamelled Copper Magnetic Wire UEW 155 Insulation 0.019mm Copper Wire
Type:	Solderable Enamelled Copper Magnetic Wire UEW 155 Insulation 0.019mm Copper Wire
Highlight:	UEW 155 Enamelled Copper Magnetic Wire , Solderable Enamelled Copper Magnetic Wire , 0.019mm Enamelled Copper Magnetic Wire

Product Description

Solderable Enamelled Copper Magnetic Wire UEW 155 Insulation 0.019mm Copper Wire

Our ultra-fine enameled copper wire represents a significant advancement in precision electronics. Featuring ultra-fine diameter, excellent solderability and high temperature resistance, this wire is designed to meet the challenges of modern electronic applications. Whether you are developing cutting-edge technology or improving an existing product, our ultra-fine wires are ideal for superior performance and reliability. Embrace the future of electronics with our innovative wiring solutions and experience the difference our ultra-fine enameled copper wire can make in your projects.


			Nominal diameter(mm)
			0.019

			Overall diameter

			Grade 1

			Min(mm)
			0.021

			Max(mm)
			0.023

			Grade 2

			Min(mm)
			0.024

			Max(mm)
			0.026

			Grade 3

			Min(mm)
			0.027

			Max(mm)
			0.028

			Resistance at 20℃

			Nom(Ohm/m)
			60.29

			Min(Ohm/m)
			54.26

			Max(Ohm/m)
			66.32

			Breakdown voltage

			Grade 1
			Min.(v)
			115

			Grade 2
			Min.(v)
			240

			Grade 3
			Min.(v)
			380
