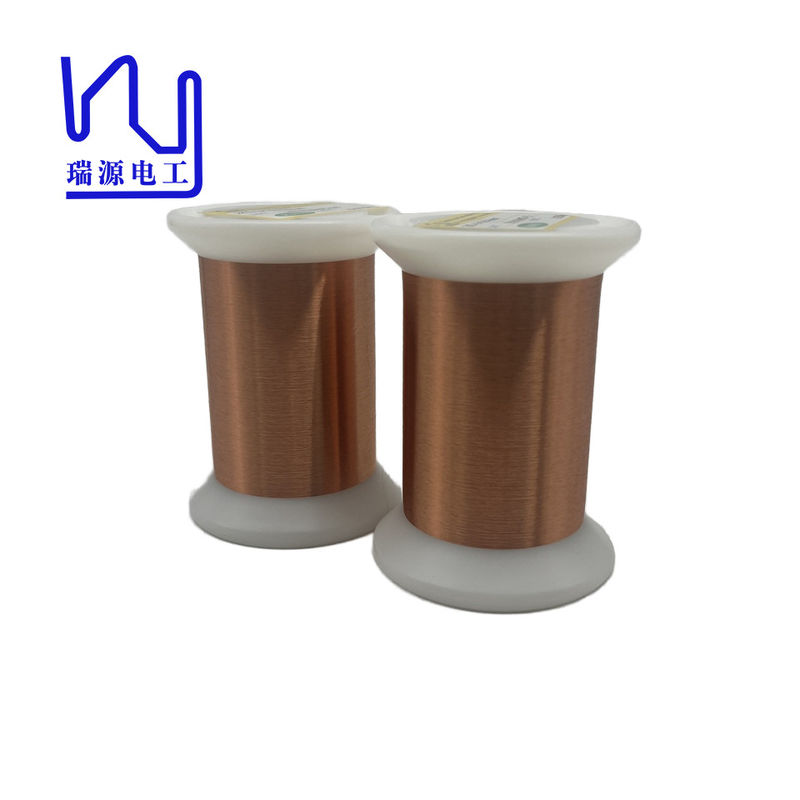

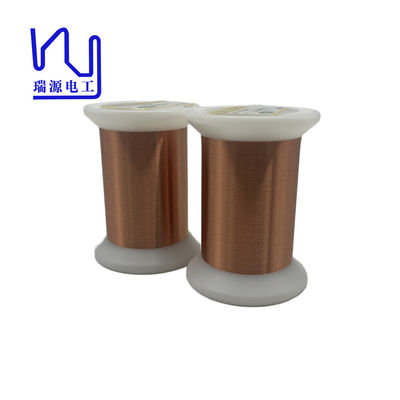

IEC Standard 2UEW 0.019mm Enamelled Copper Wire For Motor Winding

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.019mm

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	IEC Standard 2UEW 0.019mm Enamelled Copper Wire For Motor Winding	Thermal Rating:	155
Insulation Material:	Polyurethane	Diameter:	0.019mm
Conductor Material:	Copper	Key Word:	IEC Standard 2UEW 0.019mm Enamelled Copper Wire For Motor Winding
Type:	IEC Standard 2UEW 0.019mm Enamelled Copper Wire For Motor Winding
Highlight:	Motor Winding Enamelled Copper Wire , 0.019mm Enamelled Copper Wire , IEC Standard Enamelled Copper Wire

Product Description

IEC Standard 2UEW 0.019mm Enamelled Copper Wire For Motor Winding

As devices become smaller and more complex, the need for reliable, high-performance cabling solutions becomes increasingly important. Our ultra-fine wires not only meet these needs, but also offer competitive advantages in weight reduction and space savings, allowing for more innovative designs and enhanced functionality for your products.


			Nominal diameter(mm)
			0.019

			Overall diameter

			Grade 1

			Min(mm)
			0.021

			Max(mm)
			0.023

			Grade 2

			Min(mm)
			0.024

			Max(mm)
			0.026

			Grade 3

			Min(mm)
			0.027

			Max(mm)
			0.028

			Resistance at 20℃

			Nom(Ohm/m)
			60.29

			Min(Ohm/m)
			54.26

			Max(Ohm/m)
			66.32

			Breakdown voltage

			Grade 1
			Min.(v)
			115

			Grade 2
			Min.(v)
			240

			Grade 3
			Min.(v)
			380
