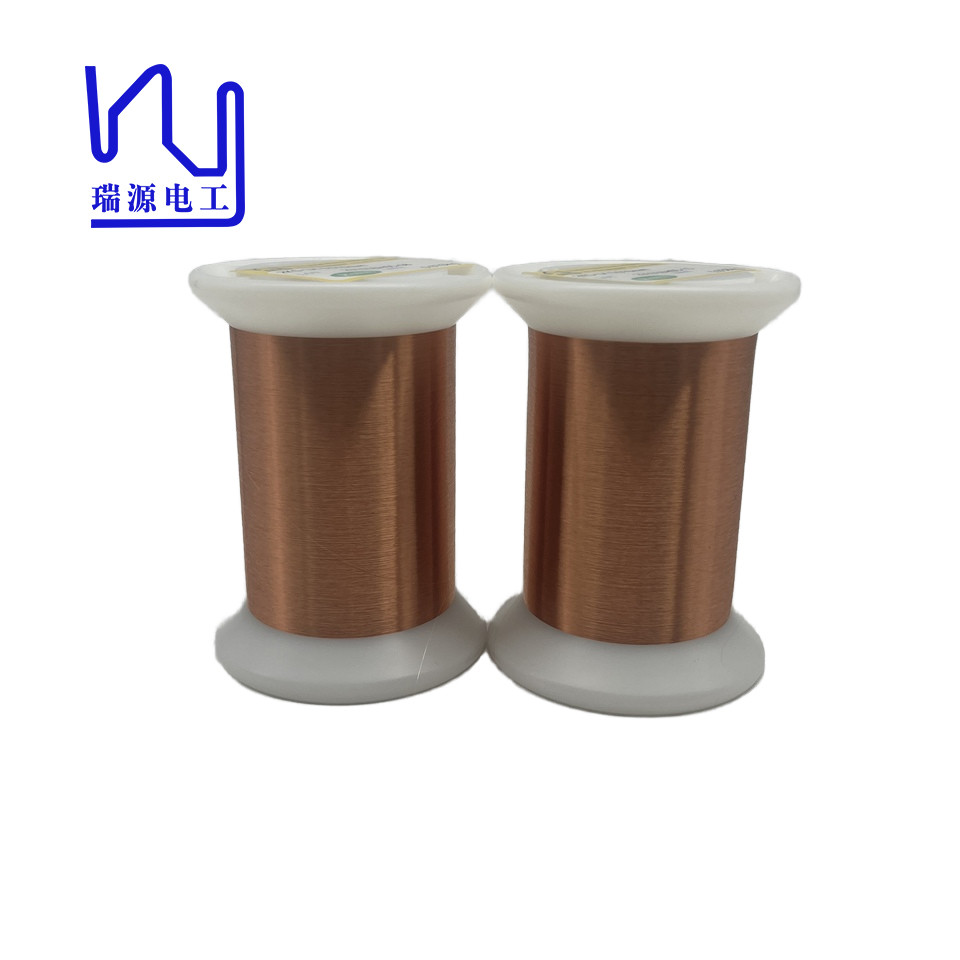

SWG / AWG Winding Wire Enamelled Copper Wire For Motor Winding

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.019mm

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	SWG / AWG Winding Wire Enamelled Copper Wire For Motor Winding	Thermal Rating:	155
Insulation Material:	Polyurethane	Diameter:	0.019mm
Conductor Material:	Copper	Key Word:	SWG / AWG Winding Wire Enamelled Copper Wire For Motor Winding
Type:	SWG / AWG Winding Wire Enamelled Copper Wire For Motor Winding
Highlight:	Motor Winding Enamelled Copper Wire , AWG Enamelled Copper Wire , SWG Enamelled Copper Wire

Product Description

SWG / AWG Winding Wire Enamelled Copper Wire For Motor Winding

The unique properties of our ultra-fine enameled wire make it ideal for a variety of precision electronic products. From tiny motors and transformers to complex circuit boards and sensors, this ultra-thin wire is engineered to deliver superior performance without compromising quality.

The versatility of our ultra-fine enameled wire is not limited to its physical properties. It is designed to meet the needs of a wide range of applications, including telecommunications, automotive electronics and consumer electronics.


			Nominal diameter(mm)
			0.019

			Overall diameter

			Grade 1

			Min(mm)
			0.021

			Max(mm)
			0.023

			Grade 2

			Min(mm)
			0.024

			Max(mm)
			0.026

			Grade 3

			Min(mm)
			0.027

			Max(mm)
			0.028

			Resistance at 20℃

			Nom(Ohm/m)
			60.29

			Min(Ohm/m)
			54.26

			Max(Ohm/m)
			66.32

			Breakdown voltage

			Grade 1
			Min.(v)
			115

			Grade 2
			Min.(v)
			240

			Grade 3
			Min.(v)
			380
