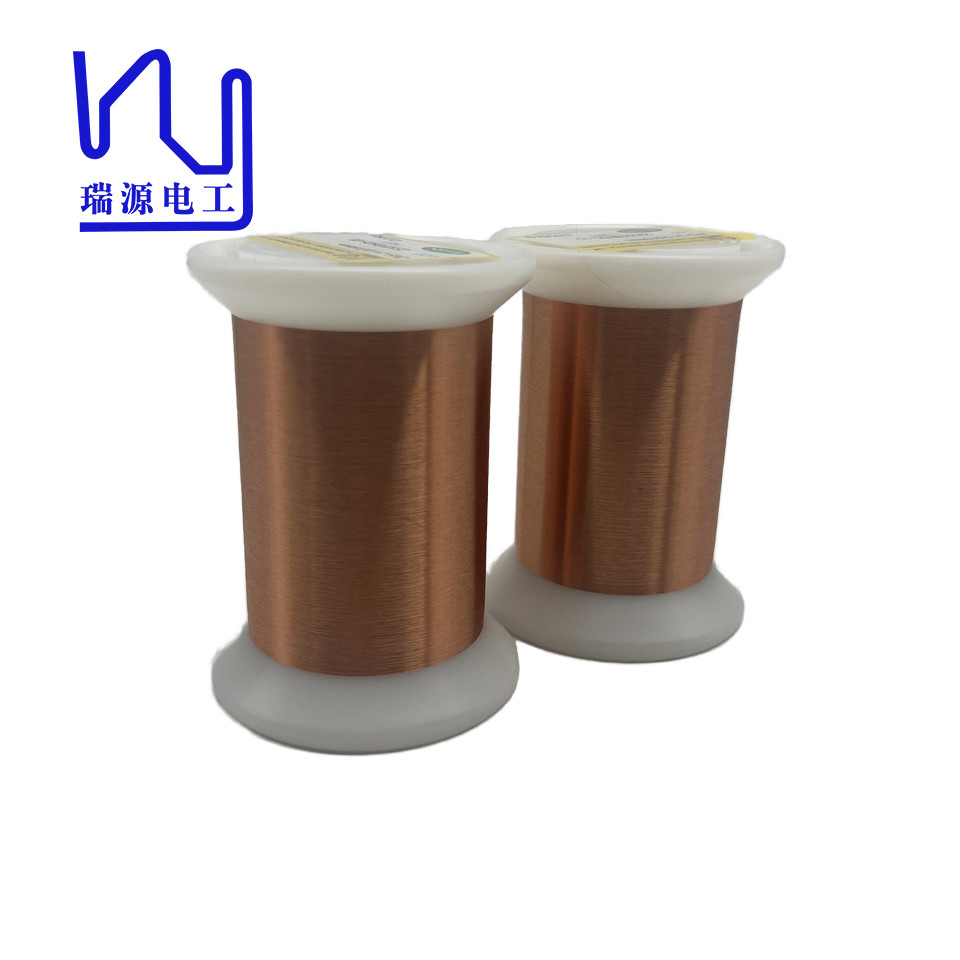

High Quality Fine Round 0.019 Mm Enamelled Copper Coil Winding Wire

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.019mm
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: High Quality Fine Round 0.019 Mm Enamelled Copper Coil Winding Wire Thermal Rating: 155
Insulation Material: Polyurethane Diameter: 0.019mm
Conductor Material: Copper Key Word: High Quality Fine Round 0.019 Mm Enamelled Copper Coil Winding Wire
Type: High Quality Fine Round 0.019 Mm Enamelled Copper Coil Winding Wire
Highlight:

Fine round copper wire

,

0.019 Mm round copper wire

,

Coil Enamelled round copper wire


Product Description

High Quality Fine Round 0.019 mm Enamelled Copper Coil Winding Wire



One of the outstanding advantages of our ultra-fine enameled copper wires is their weldability.



This feature allows for seamless integration into a variety of electronic components, thereby promoting efficient manufacturing processes. Whether you're working on high-frequency applications or compact equipment, the ability to easily solder this ultra-fine enameled copper wire ensures you can achieve the precision and reliability you need for optimal performance.



Nominal diameter(mm) 0.019
Overall diameter





Grade 1

Min(mm) 0.021
Max(mm) 0.023
Grade 2

Min(mm) 0.024
Max(mm) 0.026
Grade 3

Min(mm) 0.027
Max(mm) 0.028
Resistance at 20℃


Nom(Ohm/m) 60.29
Min(Ohm/m) 54.26
Max(Ohm/m) 66.32
Breakdown voltage


Grade 1 Min.(v) 115
Grade 2 Min.(v) 240
Grade 3 Min.(v) 380
