| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.019mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 2UEW155 0.019mm Ultra Fine Enameled Copper Wire Enameled Coated Copper Wire | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.019mm |
| Conductor Material: | Copper | Key Word: | 2UEW155 0.019mm Ultra Fine Enameled Copper Wire Enameled Coated Copper Wire |
| Type: | 2UEW155 0.019mm Ultra Fine Enameled Copper Wire Enameled Coated Copper Wire | ||
| Highlight: | 2UEW155 Enameled Copper Wire,Coated Enameled Copper Wire,0.019mm Enameled Copper Wire |
||

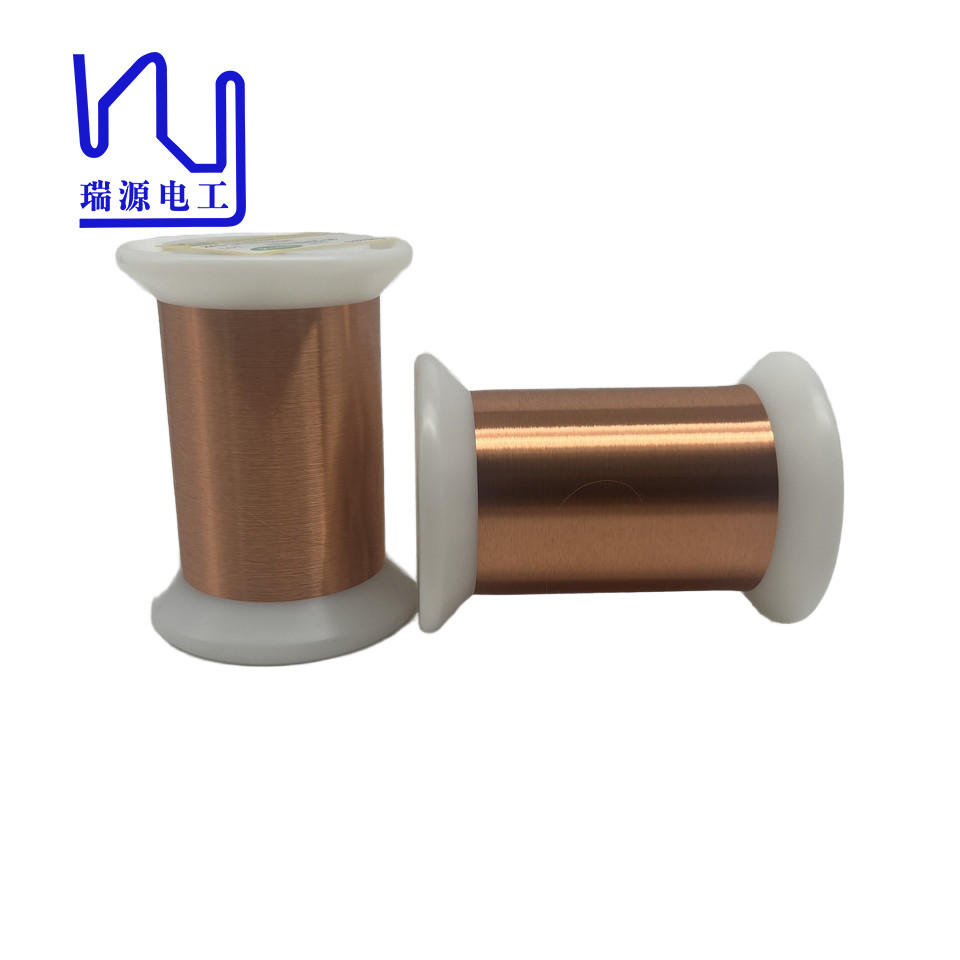

2UEW155 0.019mm Ultra Fine Enameled Copper Wire Enameled Coated Copper Wire
In the ever-evolving field of precision electronics, demand for ultra-fine wires has surged due to the need for compact, efficient and high-performance components.
The unique properties of our ultra-fine enameled wire make it ideal for a variety of precision electronic products. From tiny motors and transformers to complex circuit boards and sensors, this ultra-thin wire is engineered to deliver superior performance without compromising quality.
| Nominal diameter(mm) | 0.019 | ||
| Overall diameter |
Grade 1 |
Min(mm) | 0.021 |
| Max(mm) | 0.023 | ||
| Grade 2 |
Min(mm) | 0.024 | |
| Max(mm) | 0.026 | ||
| Grade 3 |
Min(mm) | 0.027 | |
| Max(mm) | 0.028 | ||
| Resistance at 20℃ |
Nom(Ohm/m) | 60.29 | |
| Min(Ohm/m) | 54.26 | ||
| Max(Ohm/m) | 66.32 | ||
| Breakdown voltage |
Grade 1 | Min.(v) | 115 |
| Grade 2 | Min.(v) | 240 | |
| Grade 3 | Min.(v) | 380 | |
