Custom Factory Price Polyurethanes Enamelled Winding Wire For Coil

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.03mm
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: Custom Factory Price Polyurethanes Enamelled Winding Wire For Coil Thermal Rating: 155
Insulation Material: Polyurethane Diameter: 0.03mm
Conductor Material: Copper Key Word: Custom Factory Price Polyurethanes Enamelled Winding Wire For Coil
Type: Custom Factory Price Polyurethanes Enamelled Winding Wire For Coil
Highlight:

Polyurethanes Enamelled Winding Wire

,

Custom Factory Price Enamelled Winding Wire

,

Coil Enamelled Winding Wire


Product Description

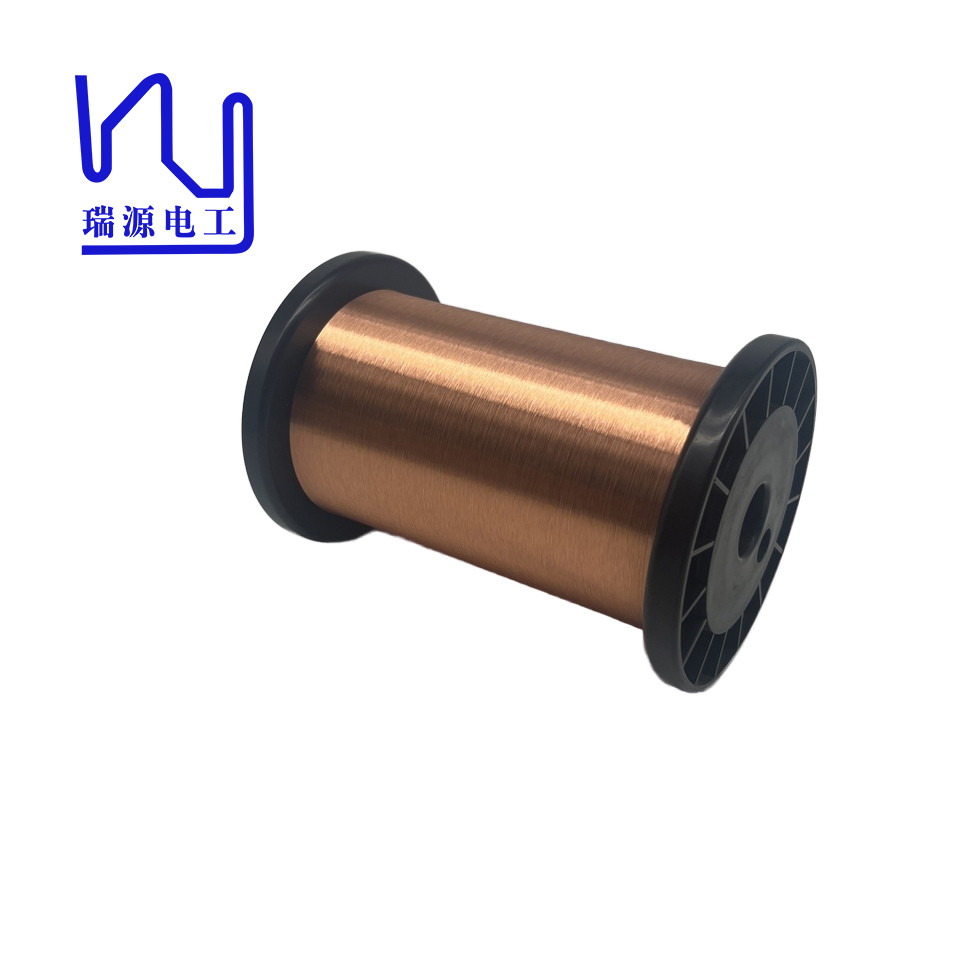

Custom Factory Price Polyurethanes Enamelled Winding Wire For Coil



Our ultra-fine enameled copper wire is a cutting-edge solution for the modern electronics industry. With its ultra-thin 0.03 mm diameter, durable polyurethane enamel coating and high temperature resistance, it is designed to meet the highest performance and reliability standards. Whether you're dealing with small devices like watch coils or more complex applications like headphone cables and tablets, this wire delivers the versatility and performance you need. Invest in the best 0.03mm ultra-fine enameled copper wire to take your electronic designs to the next level.



Characteristics

Technical requests

  Test Results
  Sample 1 Sample 2
Bare Wire Diameter 0.030±0.001 0.030 0.030
Coating Thickness ≥ 0.0025 mm 0.0035 0.0035
Overall Diameter ≤ 0.039 mm 0.037 0.037
Conductor Resistance ≤ 26.569Ω/m 23.745 23.639
Elongation ≥ 10 % 15.4 14.7
Breakdown Voltage ≥ 275V 1350 1298
Pinhole Test ≤ 2 holes/5m 0 0
Continuity ≤ 24 holes/20m 0 0
Adherence no crack visible OK
Cut-through 200℃ 2minsno breakdown OK
Heat Shock 175±5℃/30minno crack OK
Solderability 390±5℃ 2second no slags OK
