Name: Super Thin Copper Wire Enamel Coating 30 Gauge 0.012mm Insulated Solid
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: 0.012mm
Price: 24.06 USD
Availability: InStock

Super Thin Copper Wire Enamel Coating 30 Gauge 0.012mm Insulated Solid

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.012mm

Minimum Order Quantity:	5 kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	Super Thin Enameled Copper Wire 0.012mm Insulated Solid	Thermal Rating:	155
Insulation Material:	Polyurethane	Diameter:	0.012mm
Conductor Material:	Copper	Key Word:	Super Thin Enameled Copper Wire 0.012mm Insulated Solid
Highlight:	super thin copper wire enamel coating , 0.012mm copper wire enamel coating , 30 gauge enamel coated copper wire

Product Description

Super thin enameled copper wire 0.012mm insulated solid

0.012mm super thin enameled copper wire is a type of ultra-fine enameled wire with a diameter of only 0.012mm. It is widely used in precision instruments due to its excellent performance and high-quality electrical and mechanical properties.

Characteristics	Technical requests	Test Results
Characteristics	Technical requests	Sample 1	Sample 2
Surface	Good	OK	OK
Bare Wire Diameter	0.012±0.0005	0.012	0.012
Overall dimensions	≤0.016mm	0.0155	0.0150
Coating Thickness	≥ 0.002 mm	0.0035	0.003
Conductor Resistance(Ω/m at 20℃)	≤165.99Ω/m	154.84	155.27
Elongation	≥ 5%	8	8
Breakdown Voltage	≥ 110 V	486
Pinhole Test	≤12holes/5m	0
Adhesive	Coating layer is good	OK
Cut-through	200℃ 2 times no breakdown	OK
Solder Ability	390± 5℃ 2Sec Smooth	OK


			Name

			Super thin enameled copper wire 0.012mm insulated solid

			Key word

			Enameled copper wire

			Insulation

			Enamel

			Thermal rating

			155

			Diameter

			0.012mm

			Type

			Super thin enameled copper wire 0.012mm insulated solid

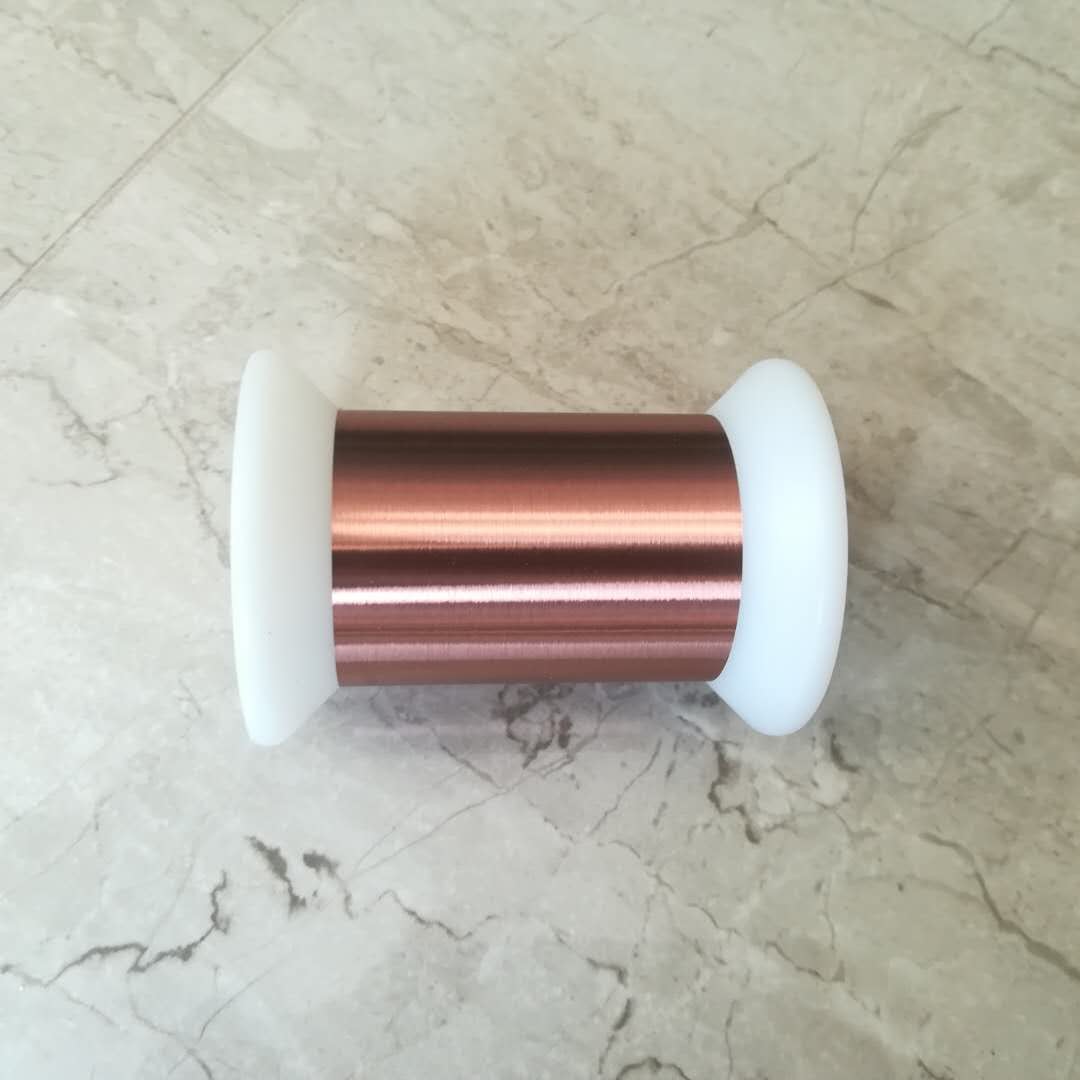

Super Thin Copper Wire Enamel Coating 30 Gauge 0.012mm Insulated Solid 0

Super Thin Copper Wire Enamel Coating 30 Gauge 0.012mm Insulated Solid 1

Super Thin Copper Wire Enamel Coating 30 Gauge 0.012mm Insulated Solid 2
