Name: 2uew 180 0.14mm Enameled Copper Winding Wire Round For Transformer
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: 0.14mm
Price: 24.06 USD
Availability: InStock

2uew 180 0.14mm Enameled Copper Winding Wire Round For Transformer

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.14mm

Minimum Order Quantity:	5 kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	2UEW 180 0.14mm Round Enameled Copper Winding Wire For Transformer	Thermal Rating:	155/180
Insulation Material:	Polyurethane	Diameter:	0.14mm
Conductor Material:	Copper	Key Word:	2UEW 180 0.14mm Round Enameled Copper Winding Wire For Transformer
Highlight:	2uew enameled copper winding wire , 0.14mm enameled copper winding wire , ultra fine enamel coil wire

Product Description

2UEW 180 0.14mm round enameled copper winding wire for transformer

Enameled copper wire is a commonly used wire material. Its core is copper wire as a conductor, and polyurethane paint is used as a protective layer around it. Enameled wire has the properties of insulation and high temperature resistance, and is widely used in various fields.

Item	Requirements	Test Data
		Sample 1	Sample 2	Sample 3
Conductor diameter(mm)	0.140±0.004mm	0.140	0.140	0.140
Coating thickness	≥ 0.011mm	0.0150	0.0160	0.0150
Overall dimention(mm)	≤0.159mm	0.1550	0.1560	0.1550
DC Resistance	≤1.153Ω/m	1.085	1.073	1.103
Elongation	≥19%	24	25	24
Breakdown Voltage	≥1600V	3163	3215	3163
Pinhole	≤5(faults)/5m	0	0	0
Cut-through	200℃ 2min No breakdown	ok
Heat Shock	175±5℃/30min No cracks	ok
Solderability	390± 5℃ 2 Sec No slags	ok


			Name

			2UEW 180 0.14mm round enameled copper winding wire for transformer

			Key word

			Enameled copper wire

			Insulation

			Enamel

			Thermal rating

			155/180

			Diameter

			0.14mm

			Type

			2UEW 180 0.14mm round enameled copper winding wire for transformer

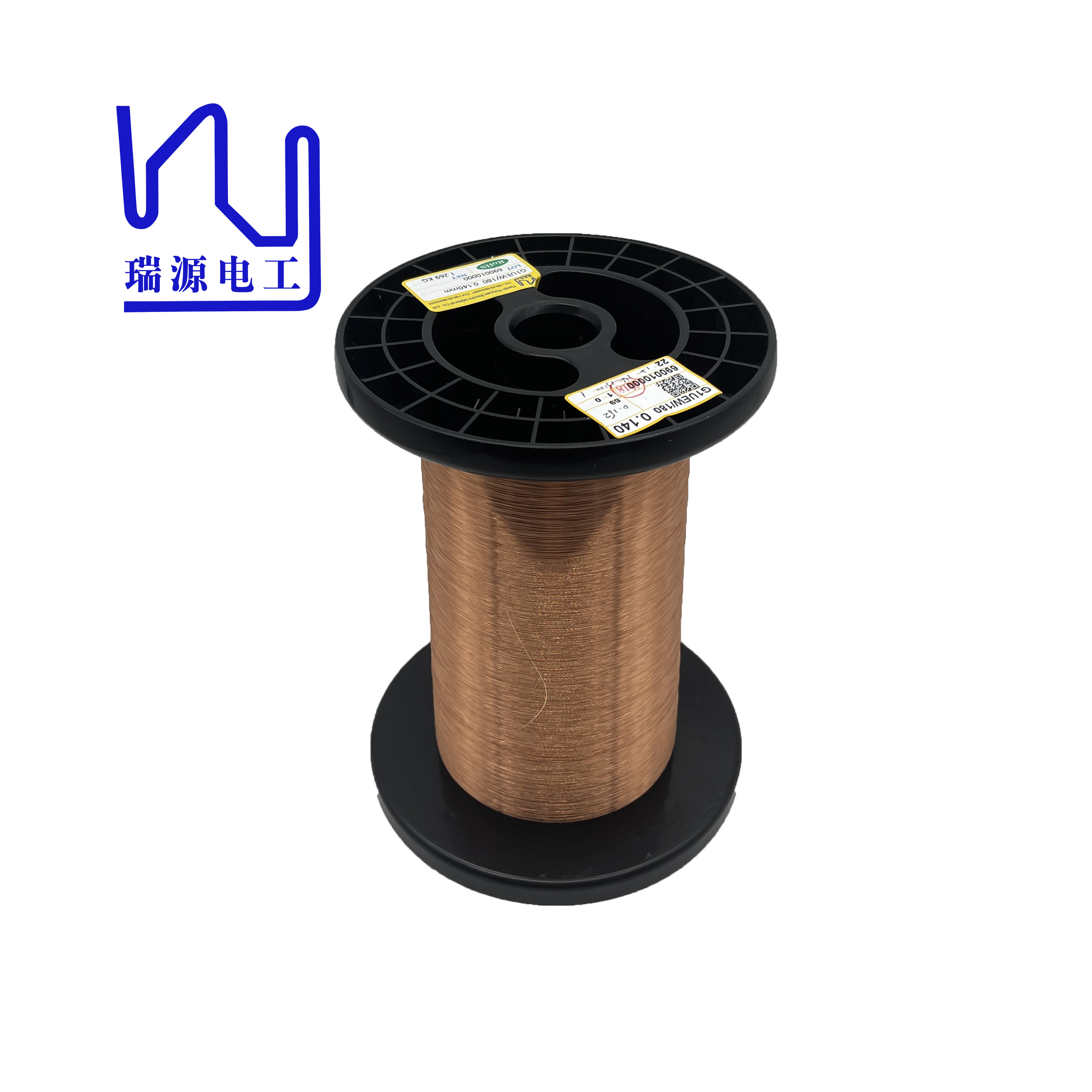

2uew 180 0.14mm Enameled Copper Winding Wire Round For Transformer 0

2uew 180 0.14mm Enameled Copper Winding Wire Round For Transformer 1

2uew 180 0.14mm Enameled Copper Winding Wire Round For Transformer 2
