Name: Ultra Fine Solderable Wire 0.025mm Enameled 2uew Motor Winding
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: 0.025mm
Price: 24.06 USD
Availability: InStock

Ultra Fine Solderable Wire 0.025mm Enameled 2uew Motor Winding

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.025mm

Minimum Order Quantity:	5 kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	Ultra Fine Solderable 0.025mm Enameled Wire 2uew For Motor Winding	Thermal Rating:	155/180
Insulation Material:	Amide Imide	Diameter:	0.025mm
Conductor Material:	Copper	Key Word:	Ultra Fine Solderable 2UEW Enameled Copper Motor Winding Wire
Highlight:	ultra fine solderable enamelled copper wire , ultra fine solderable wire , 0.025mm solderable wire

Product Description

Ultra Fine Solderable 0.025mm Enameled Wire 2uew for Motor Winding

The product has excellent properties of heat resistance,resistence to efrigerators,chemical and radiation.lt is suitable for oil-immersed transformers, dry-type transformers, explosion-proof motors, electrictools, electromagnetic coils,
motors,etc.


			Name

			Ultra Fine Solderable 0.025mm Enameled Wire 2uew for Motor Winding

			Key word

			Enameled copper wire

			Insulation

			Enamel

			Thermal rating

			155/180

			Diameter

			0.025mm

			Type

			Ultra Fine Solderable 0.025mm Enameled Wire 2uew for Motor Winding

			3UEW 155 0.025mm

			Characteristics

			Technical requests

			Test Results

			Sample 1(mm )

			Sample 2(mm)

			Appearance

			Smooth&Clean

			OK

			OK

			Conductor Diameter

			0.025±0.001mm

			0.0250

			0.0250

			Thickness of insulation

			≥ 0.003 mm

			0.0050

			0.0040

			Overall Diameter

			≤ 0.032 mm

			0.0300

			0.0290

			DC Resistance

			≤ 38.112 Ω/m

			35.523

			35.489

			Elongation

			≥9%

			15

			13

			Breakdown Voltage

			≥ 190 V

			551

			399

			Pinhole Test

			≤8 hole/5m

			0

			1

			Adherence

			No cracks visible

			OK

			OK

			Cut- through

			200℃ 2min No breakdown

			OK

			OK

			Heat Shock

			175±5℃/30min no cracks

			OK

			OK

			Solderability

			390± 5℃ 2 Sec No slags

			OK

			OK

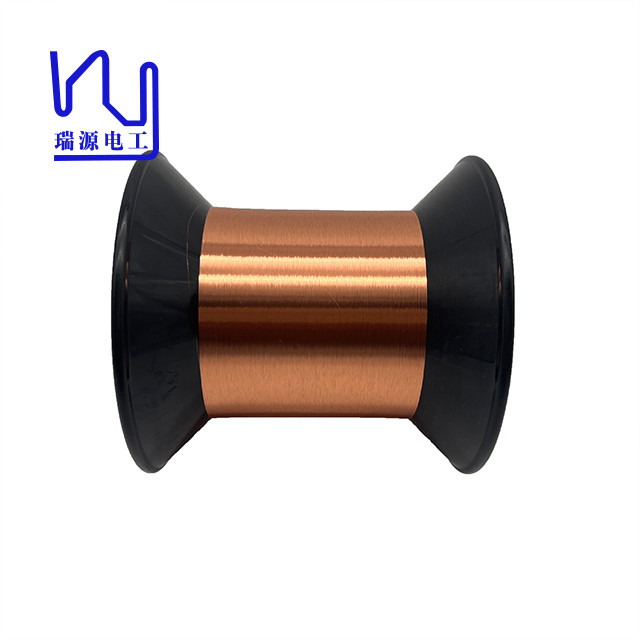

Ultra Fine Solderable Wire 0.025mm Enameled 2uew Motor Winding 0

Ultra Fine Solderable Wire 0.025mm Enameled 2uew Motor Winding 1

Ultra Fine Solderable Wire 0.025mm Enameled 2uew Motor Winding 2

Tag:

Ultra Fine Solderable Wire 0.025mm Enameled 2uew Motor Winding

ultra fine solderable enamelled copper wire

ultra fine solderable wire

0.025mm solderable wire

enamelled winding wire,

self bonding copper wire,

enameled magnet wire

0.02mm Utra Fine Enameled Copper Wire

2UEW 3UEW Ultra Fine Enameled Copper Wire

52 AWG Enameled Copper Winding Wire 2uew 155 / 180 Ultra Fine

Thin Round 0.012-0.08mm Ultra Thin Enameled Copper Wire Solid Conductor Type

Swg 50 Ultra Thin Enameled Copper Wire Magnet Winding Wire For Touch Screen / Sensor

Class 2 PEW 0.06 - 1.0mm Motor Winding Wire Enamel Coated Magnet Copper Wire

Insulated Ultra Thin Copper Wire Solderability For High Frequency Coils

2UEW-F 0.019mm Super Thin Enamelled Copper Wire For Watch Coils

Name	Ultra Fine Solderable 0.025mm Enameled Wire 2uew for Motor Winding
Key word	Enameled copper wire
Insulation	Enamel
Thermal rating	155/180
Diameter	0.025mm
Type	Ultra Fine Solderable 0.025mm Enameled Wire 2uew for Motor Winding

3UEW 155 0.025mm
Characteristics	Technical requests	Test Results
Characteristics	Technical requests	Sample 1(mm )	Sample 2(mm)
Appearance	Smooth&Clean	OK	OK
Conductor Diameter	0.025±0.001mm	0.0250	0.0250
Thickness of insulation	≥ 0.003 mm	0.0050	0.0040
Overall Diameter	≤ 0.032 mm	0.0300	0.0290
DC Resistance	≤ 38.112 Ω/m	35.523	35.489
Elongation	≥9%	15	13
Breakdown Voltage	≥ 190 V	551	399
Pinhole Test	≤8 hole/5m	0	1
Adherence	No cracks visible	OK	OK
Cut- through	200℃ 2min No breakdown	OK	OK
Heat Shock	175±5℃/30min no cracks	OK	OK
Solderability	390± 5℃ 2 Sec No slags	OK	OK
