0.08mm Class 155 Enameled Copper Wire Customized Solderable For Transformer

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.08mm
Minimum Order Quantity: 5 kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: 0.08mm Class 155 Customized Solderable Enameled Copper Wire For Transformer Thermal Rating: 155/180
Insulation Material: Polyurethane Diameter: 0.08mm
Conductor Material: Copper Key Word: 0.08mm Class 155 Customized Solderable Enameled Copper Wire For Transformer
High Light:

0.08mm enameled copper wire

,

class 155 enameled copper wire

,

solderable enameled wire


Product Description

0.08mm Class 155 Customized Solderable Enameled Copper Wire For Transformer

Modified polyester or polyesterimide with thermal class 200 as base coat not only increases heat resistance but also maintains scratch resistant property that class 180 enameled copper wire have.

Polyamide-imide resin with a temperature rating of 220 featuring solvent resistance, excellent breakdown voltage performance and smooth surface is used as extra coat so that thermal class, corona resistance, enamel protection and other properties of the enameled copper wire are improved.

All these properties makes our enameled copper wire with thermal class 200 suitable for use to high temperature motors, load motors, air conditioner compressors, refrigerator compressors, water dispensers and other products.

 Name

0.08mm Class 155 Customized Solderable Enameled Copper Wire For Transformer

Key word

Enameled copper wire

Insulation

Enamel

Thermal rating

155/180

Diameter

0.08mm

Type

0.08mm Class 155 Customized Solderable Enameled Copper Wire For Transformer

Characteristics
Technical requests
Test Results
Sample 1
Sample 2
Bare Wire Diameter
0.080±0.002
0.45
0.45
Coating Thickness
≥ 0.008 mm
0.011
0.012
Overall Diameter
≤ 0.094 mm
0.091
0.092
Conductor Resistance
≤ 3.608 Ω/m
3.456
3.437
Elongation
≥ 16 %
19
20
Breakdown Voltage
≥ 425 V
1578
1723
Pinhole Test
≤ 5 holes/5m
0
0
Continuity
≤ 40 holes/30m
0
0
Test Items
Technical Requests
Results

Adhesive
Coating layer is good
OK

Cut-through
200℃ 2minsno breakdown
OK

Heat Shock
175±5℃/30minno crack
OK

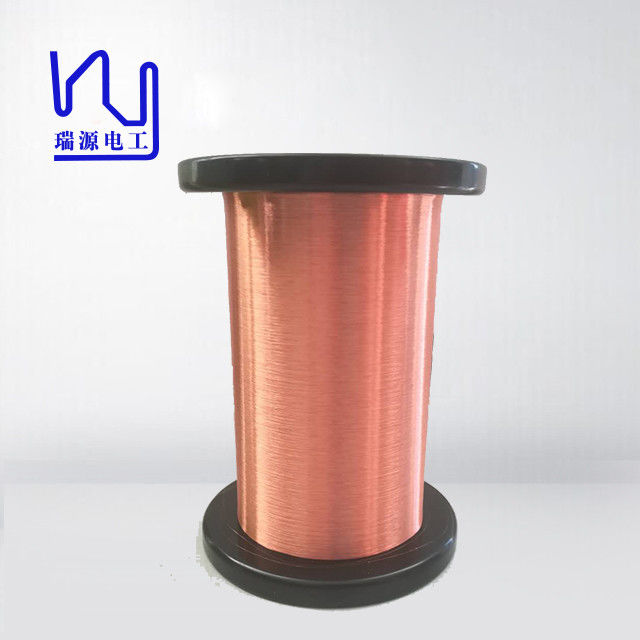

0.08mm Class 155 Enameled Copper Wire Customized Solderable For Transformer 0

0.08mm Class 155 Enameled Copper Wire Customized Solderable For Transformer 1

0.08mm Class 155 Enameled Copper Wire Customized Solderable For Transformer 2
