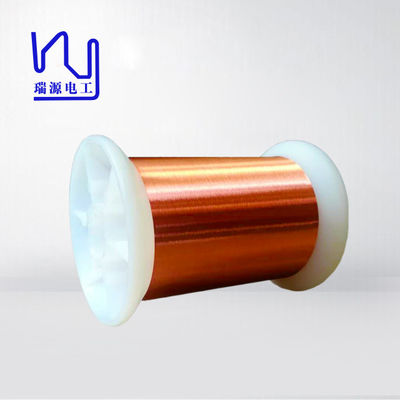

Name: Ultra Fine Soldering Enameled Wire 2uew Motor Winding
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: 0.025mm
Price: 24.06 USD
Availability: InStock

Ultra Fine Soldering Enameled Wire 2uew Motor Winding

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.025mm

Minimum Order Quantity:	5 kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	Ultra Fine Solderable 2UEW Enameled Copper Motor Winding Wire	Thermal Rating:	155/180
Insulation Material:	Amide Imide	Diameter:	0.025mm
Conductor Material:	Copper	Key Word:	Ultra Fine Solderable 2UEW Enameled Copper Motor Winding Wire
Highlight:	ultra fine soldering enameled wire , motor winding soldering enameled wire , 2uew winding wire copper

Product Description

Ultra fine solderable 2UEW Enameled Copper Motor Winding Wire

Size range from 0.011mm-0.8mm, class 155/ class 180, widely used in transformer, motor and other electric devices.

We offer samples, around 5kg/spool.


			Name

			Ultra fine solderable 2UEW Enameled Copper Motor Winding Wire

			Key word

			Enameled copper wire

			Insulation

			Enamel

			Thermal rating

			155/180

			Diameter

			0.025mm

			Type

			Ultra fine solderable 2UEW Enameled Copper Motor Winding Wire

			3UEW 155 0.025mm

			Characteristics

			Technical requests

			Test Results

			Sample 1(mm )

			Sample 2(mm)

			Appearance

			Smooth&Clean

			OK

			OK

			Conductor Diameter

			0.025±0.001mm

			0.0250

			0.0250

			Thickness of insulation

			≥ 0.003 mm

			0.0050

			0.0040

			Overall Diameter

			≤ 0.032 mm

			0.0300

			0.0290

			DC Resistance

			≤ 38.112 Ω/m

			35.523

			35.489

			Elongation

			≥9%

			15

			13

			Breakdown Voltage

			≥ 190 V

			551

			399

			Pinhole Test

			≤8 hole/5m

			0

			1

			Adherence

			No cracks visible

			OK

			OK

			Cut- through

			200℃ 2min No breakdown

			OK

			OK

			Heat Shock

			175±5℃/30min no cracks

			OK

			OK

			Solderability

			390± 5℃ 2 Sec No slags

			OK

			OK

Ultra Fine Soldering Enameled Wire 2uew Motor Winding

ultra fine soldering enameled wire

motor winding soldering enameled wire

2uew winding wire copper

enamelled winding wire,

self bonding copper wire,

enameled magnet wire

0.02mm Utra Fine Enameled Copper Wire

2UEW 3UEW Ultra Fine Enameled Copper Wire

0.012 - 0.08mm Multi Color Enamel Coated Magnet Wire Enameled Copper Wire For Touch Screen

AWG42 0.063mm Magnet Copper Enameled Wire For Miniature RF Transformers

Polyurethane 0.06mm 155°C/180°C Enameled Round Copper Wire for High Purity Copper Insulated Solid

0.032mm Enameled Copper Magnet Wire For High-Precision Current Sensors

44 AWG Enamelled Copper Winding Wire Solderable Type For Flaw Detection Coils

Temperature 155 PU 0.02mm Enameled Copper Wire Magnet Wire For Medical Devices

Name	Ultra fine solderable 2UEW Enameled Copper Motor Winding Wire
Key word	Enameled copper wire
Insulation	Enamel
Thermal rating	155/180
Diameter	0.025mm
Type	Ultra fine solderable 2UEW Enameled Copper Motor Winding Wire

3UEW 155 0.025mm
Characteristics	Technical requests	Test Results
Characteristics	Technical requests	Sample 1(mm )	Sample 2(mm)
Appearance	Smooth&Clean	OK	OK
Conductor Diameter	0.025±0.001mm	0.0250	0.0250
Thickness of insulation	≥ 0.003 mm	0.0050	0.0040
Overall Diameter	≤ 0.032 mm	0.0300	0.0290
DC Resistance	≤ 38.112 Ω/m	35.523	35.489
Elongation	≥9%	15	13
Breakdown Voltage	≥ 190 V	551	399
Pinhole Test	≤8 hole/5m	0	1
Adherence	No cracks visible	OK	OK
Cut- through	200℃ 2min No breakdown	OK	OK
Heat Shock	175±5℃/30min no cracks	OK	OK
Solderability	390± 5℃ 2 Sec No slags	OK	OK
