Detail Information

Name:	Red Color Polyurethane Magnet Wire 0.08mm Ultra Fine Enameled Copper Wire	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.08mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Polyurethane
Rated Temperature:	155/180	Key Word:	Red Color Polyurethane Magnet Wire 0.08mm Ultra Fine Enameled Copper Wire
Highlight:	red color enamel coated magnet wire , polyurethane enamel coated magnet wire , 0.08mm soldering enameled wire

Product Description

Red Color polyurethane magnet wire 0.08mm Ultra fine enameled copper wire

Enameled wire (ordinary wire): mainly used for winding wires in general motors, electrical appliances, instruments, transformers and other workplaces, such as polyester enameled wire, modified polyester enameled wire.

Heat-resistant enameled wire: It is mainly used for winding wires of motors, electrical appliances, instruments, transformers and other workplaces that work in a temperature environment of 180°C and above, such as polyesterimide enameled wire, polyimide enameled wire, polyester enameled wire, poly Esterimide/polyamideimide composite enameled wire.

Enameled wire for special purposes: refers to the winding wire with certain quality characteristics and used in specific occasions, such as: polyurethane enameled wire (straight weldability), self-adhesive enameled wire.

Name	Red Color polyurethane magnet wire 0.08mm Ultra fine enameled copper wire
Key word	Enameled copper wire
Insulation	Polyurethane
Thermal rating	155degree
Diameter of the enameled copper wire	0.08mm
Key word	Red Color polyurethane magnet wire 0.08mm Ultra fine enameled copper wire

O.	Characteristics	Technical requests		Test Results			Conclusion
				Sample1	Sample 2	Sample 3
1	Surface	Good		OK	OK	OK	OK
2	Bare Wire Diameter	0.080±	0.002	0.0800	0.0800	0.0800	OK
			0.002
3	Insulation thickness	≥ 0.009 mm		0.0130	0.0110	0.0120	OK
4	Overall diameter	≤ 0.095 mm		0.0930	0.0910	0.0920	OK
5	Electrical Resistance	3.608Ω/m		3.501	3.439	3.475	OK
6	Elongation	≥ 16 %		22	21	22	OK
7	Breakdown voltage	≥600 V		2019	1865	1923	OK
8	Pinbole test	≤ 5 hole/5m		0	0	0	OK
9	Enamel continuity	≤ 12 hole/30m		0	0	0	OK
Remark
	Test items		Technical Requests		Results		Conclusion
1	Adhesive		No crack		OK		Approval
2	Cut-through		200℃ 2mins no crack		OK
3	Heat Shock		175±5℃/30min no crack		OK
4	Solder Ability		390± 5℃ 2Sec Smooth		OK

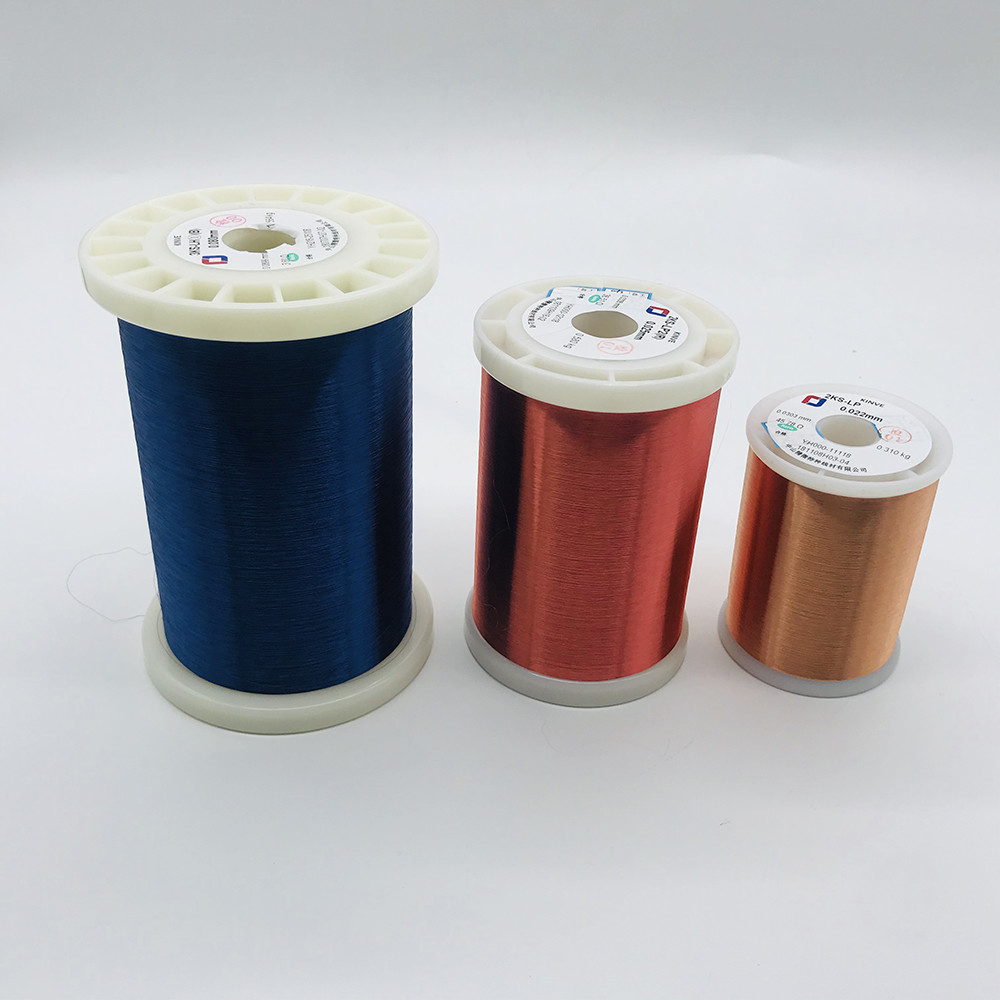

Red Color Polyurethane Enamel Coated Magnet Wire 0.08mm 0

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

Red Color Polyurethane Enamel Coated Magnet Wire 0.08mm 1

Red Color Polyurethane Enamel Coated Magnet Wire 0.08mm 2

Red Color Polyurethane Enamel Coated Magnet Wire 0.08mm 3

Red Color Polyurethane Enamel Coated Magnet Wire 0.08mm 4

Tag:

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	UEW

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand
