Detail Information

Name:	AWG40 UEW 0.08mm Magnet Enameled Copper Winding Wire For Transformer	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.08mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Polyurethane
Rated Temperature:	155/180	Key Word:	AWG40 UEW 0.08mm Magnet Enameled Copper Winding Wire For Transformer
Highlight:	awg40 winding wire copper , uew winding wire copper , 0.08mm enamel insulated wire

Product Description

AWG40 UEW 0.08mm Magnet Enameled Copper Winding Wire For Transformer

Size of enameled copper wire range from 0.011mm-0.8mm, class 155/ class 180, the enameled copper wire is widely used in transformer, motor and other electric devices.We offer samples, around 5-10kg/spool.

Name	AWG40 UEW 0.08mm Magnet Enameled Copper Winding Wire For Transformer
Key word	Enameled copper wire
Insulation	Polyurethane
Thermal rating	155degree
Diameter of the enameled copper wire	0.08mm
Key word	AWG40 UEW 0.08mm Magnet Enameled Copper Winding Wire For Transformer

O.	Characteristics	Technical requests		Test Results			Conclusion
				Sample1	Sample 2	Sample 3
1	Surface	Good		OK	OK	OK	OK
2	Bare Wire Diameter	0.080±	0.002	0.0800	0.0800	0.0800	OK
			0.002
3	Insulation thickness	≥ 0.009 mm		0.0130	0.0110	0.0120	OK
4	Overall diameter	≤ 0.095 mm		0.0930	0.0910	0.0920	OK
5	Electrical Resistance	3.608Ω/m		3.501	3.439	3.475	OK
6	Elongation	≥ 16 %		22	21	22	OK
7	Breakdown voltage	≥600 V		2019	1865	1923	OK
8	Pinbole test	≤ 5 hole/5m		0	0	0	OK
9	Enamel continuity	≤ 12 hole/30m		0	0	0	OK
Remark
	Test items		Technical Requests		Results		Conclusion
1	Adhesive		No crack		OK		Approval
2	Cut-through		200℃ 2mins no crack		OK
3	Heat Shock		175±5℃/30min no crack		OK
4	Solder Ability		390± 5℃ 2Sec Smooth		OK

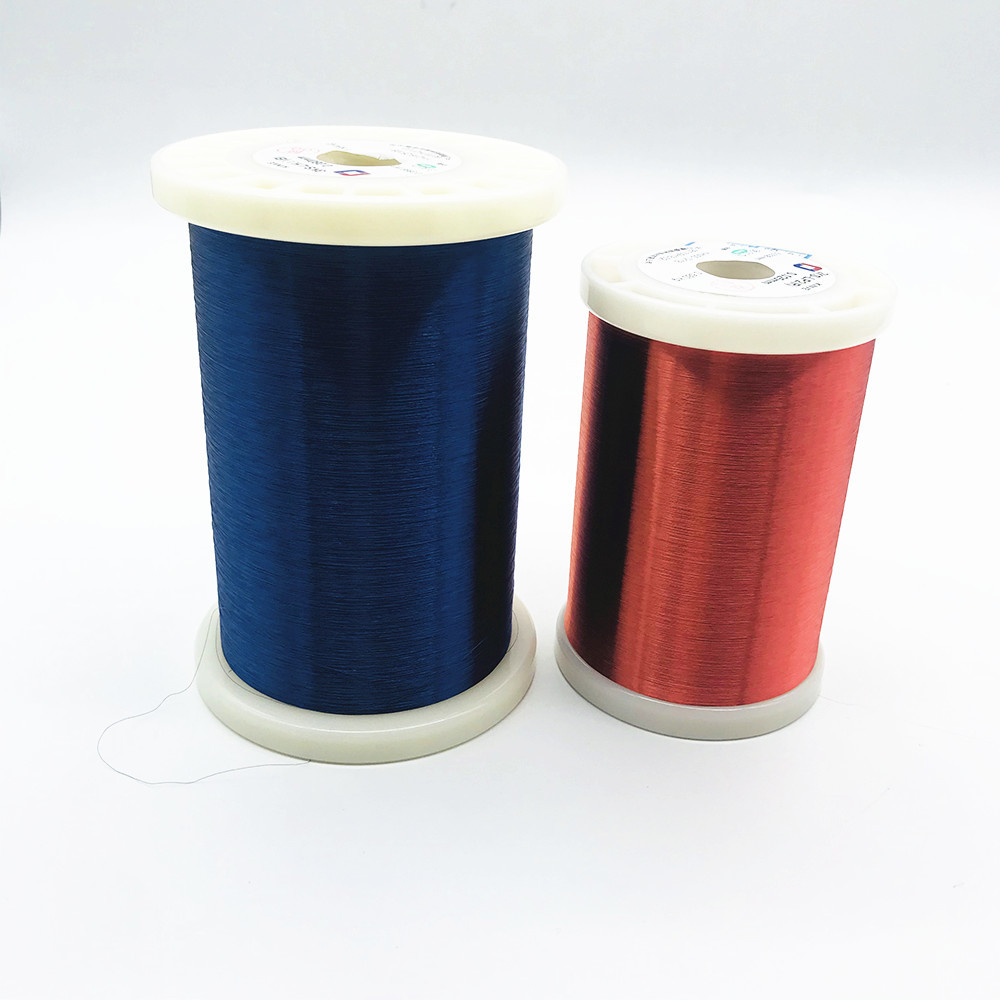

Awg40 Uew 0.08mm Magnet Winding Wire Copper For Transformer 0

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

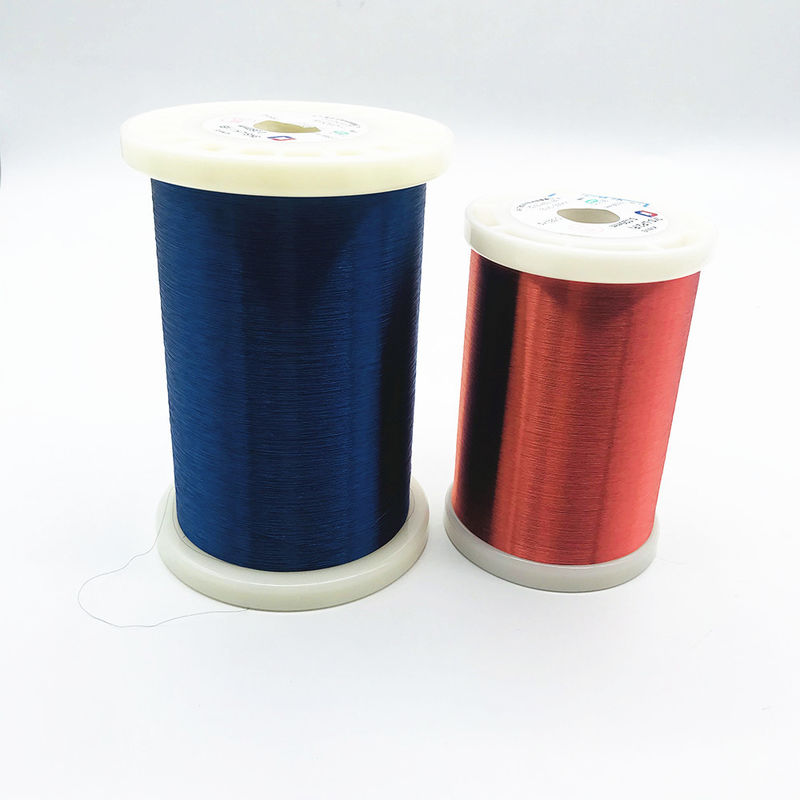

Awg40 Uew 0.08mm Magnet Winding Wire Copper For Transformer 1

Awg40 Uew 0.08mm Magnet Winding Wire Copper For Transformer 2

Awg40 Uew 0.08mm Magnet Winding Wire Copper For Transformer 3

Awg40 Uew 0.08mm Magnet Winding Wire Copper For Transformer 4
