Detail Information

Name:	3UEW 155 52 AWG Ultra Fine Magnet Wire Enameled Copper Wire For Watch	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.02mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Polyurethane
Rated Temperature:	155/180	Key Word:	3UEW 155 52 AWG Ultra Fine Magnet Wire Enameled Copper Wire For Watch
Highlight:	3uew solderable enamelled copper wire , ultra fine solderable enamelled copper wire , watch 52 awg magnet wire

Product Description

3UEW 155 52 AWG Ultra Fine Magnet Wire Enameled Copper Wire For Watch

Enameled copper wire is a copper coated with a very thin layer of insulation. It is used in the construction of transformers, inductors, motors, speakers, hard disk head actuators, electromagnets, and other applications that require tight coils of insulated wire.Super Enameled Copper Wire, for Motor Winding. This Super Enamelled Copper Wire is suitable for use in crafts or for electrical grounding. This single-strand wire is annealed for improved ductility.

Name	3UEW 155 52 AWG Ultra Fine Magnet Wire Enameled Copper Wire For Watch
Key word	Enameled copper wire
Insulation	Polyurethane
Thermal rating	155degree
Diameter of the enameled copper wire	0.02mm
Key word	3UEW 155 52 AWG Ultra Fine Magnet Wire Enameled Copper Wire For Watch

Characteristics	Technical requests	Test Results
Characteristics	Technical requests	Sample 1	Sample 2
Surface	Good	OK	OK
Bare Wire Diameter	0.020±0.001	0.02	0.02
Overall Diameter	0.022-0.024	0.023	0.023
Conductor Resistance	≤60.810Ω/m	56.812	56.403
Elongation	≥8%	10%	10%
Breakdown Voltage	≥130V	212	247
Pinhole Test	≤ 8 holes/5m	1	0
Test Items	Technical Requests		Results
Adhesive	Coating layer is good		OK
Cut-through	200℃ 2mins no breakdown		OK
Heat Shock	180±5℃/30min no crack		OK
Solder Ability	390± 5℃ 2 Sec Smooth		OK
Solvent Resistance	No blister, no expansion, no shed		OK

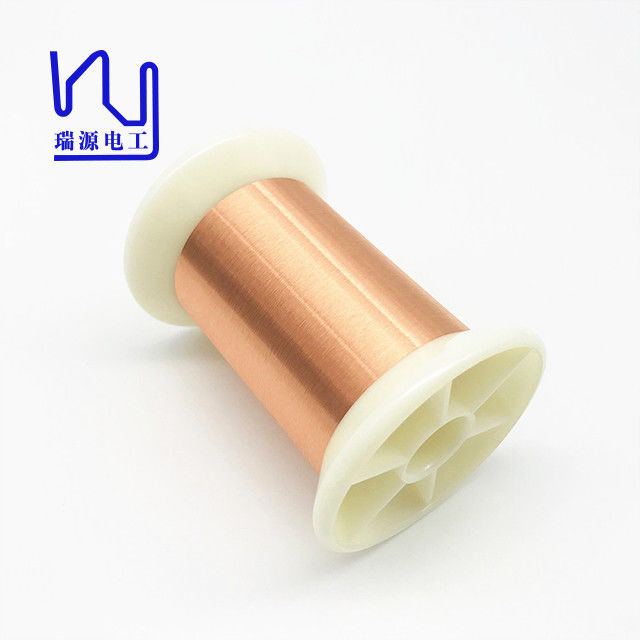

3uew 155 52 Awg Solderable Enamelled Copper Wire Ultra Fine Magnet For Watch 0

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

3uew 155 52 Awg Solderable Enamelled Copper Wire Ultra Fine Magnet For Watch 1

3uew 155 52 Awg Solderable Enamelled Copper Wire Ultra Fine Magnet For Watch 2

3uew 155 52 Awg Solderable Enamelled Copper Wire Ultra Fine Magnet For Watch 3

3uew 155 52 Awg Solderable Enamelled Copper Wire Ultra Fine Magnet For Watch 4

Tag:

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	UEW

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand
