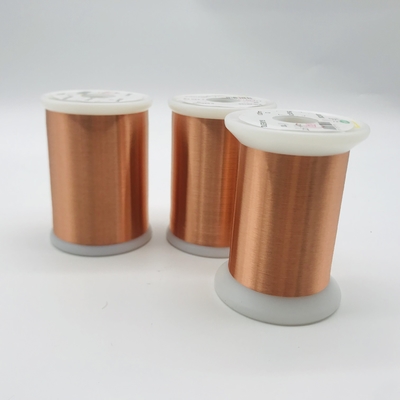

2uew 155 / 180 0.02mm Ultra Fine Enameled Copper Wire Solderable

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	UEW

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	2UEW 155 / 180 0.02mm Super Thin Enameled Copper Wire For Watch	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.02mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Polyurethane
Rated Temperature:	155/180	Key Word:	2UEW 155 / 180 0.02mm Super Thin Enameled Copper Wire For Watch
Highlight:	0.02mm ultra fine enameled copper wire , solderable ultra fine enameled copper wire , ultra fine solderable enamelled copper wire

Product Description

2UEW 155 / 180 0.02mm Super Thin Enameled Copper Wire For Watch

These enameled resistance wires have been broadly used for standard resistors, High /Low Voltage Resistor automobile parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.

Name	2UEW 155 / 180 0.02mm Super Thin Enameled Copper Wire For Watch
Key word	Enameled copper wire
Insulation	Polyurethane
Thermal rating	155degree
Diameter of the enameled copper wire	0.02mm
Key word	2UEW 155 / 180 0.02mm Super Thin Enameled Copper Wire For Watch

Characteristics	Technical requests	Test Results
Characteristics	Technical requests	Sample 1	Sample 2
Surface	Good	OK	OK
Bare Wire Diameter	0.020±0.001	0.02	0.02
Overall Diameter	0.022-0.024	0.023	0.023
Conductor Resistance	≤60.810Ω/m	56.812	56.403
Elongation	≥8%	10%	10%
Breakdown Voltage	≥130V	212	247
Pinhole Test	≤ 8 holes/5m	1	0
Test Items	Technical Requests		Results
Adhesive	Coating layer is good		OK
Cut-through	200℃ 2mins no breakdown		OK
Heat Shock	180±5℃/30min no crack		OK
Solder Ability	390± 5℃ 2 Sec Smooth		OK
Solvent Resistance	No blister, no expansion, no shed		OK

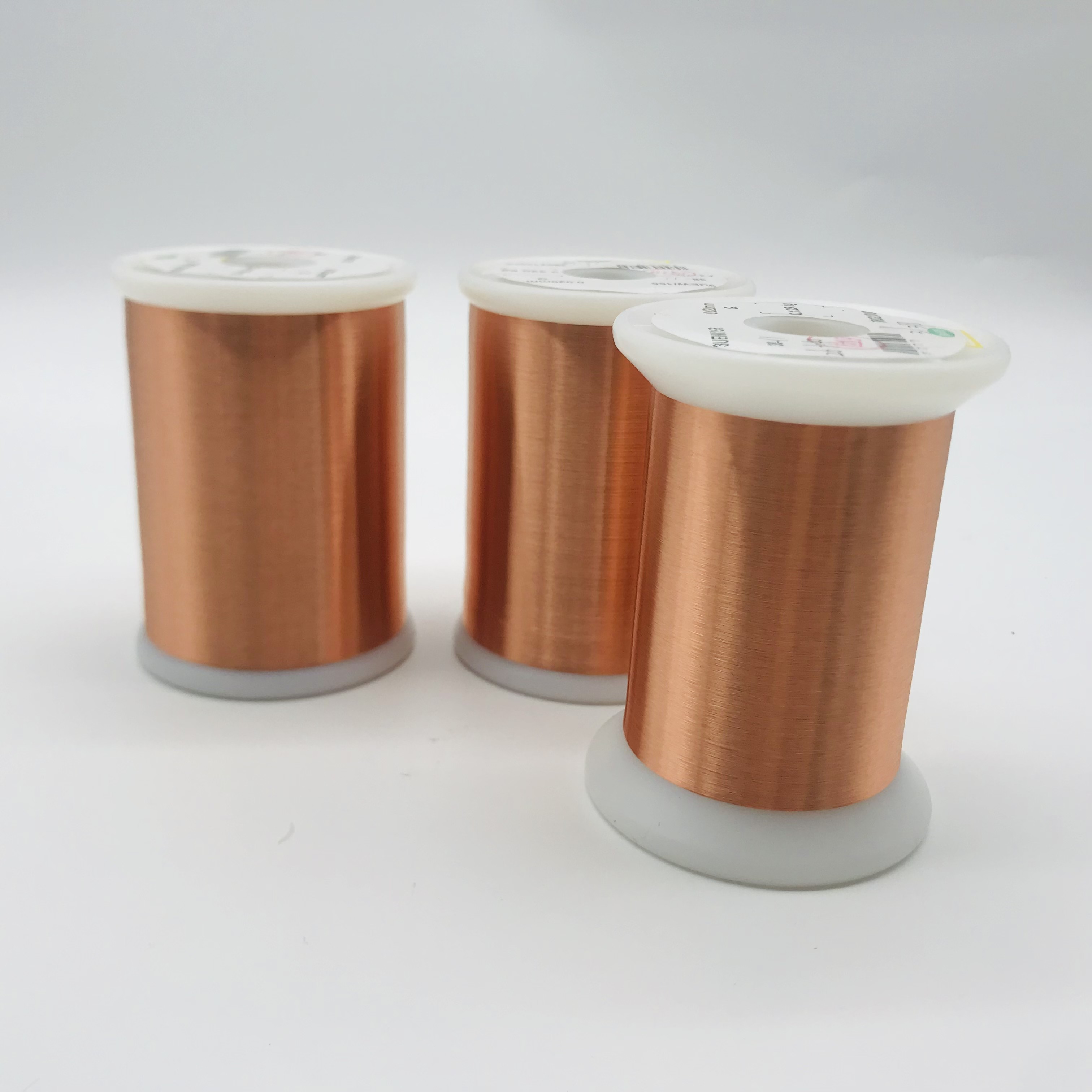

2uew 155 / 180 0.02mm Ultra Fine Enameled Copper Wire Solderable 0

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

2uew 155 / 180 0.02mm Ultra Fine Enameled Copper Wire Solderable 1

2uew 155 / 180 0.02mm Ultra Fine Enameled Copper Wire Solderable 2

2uew 155 / 180 0.02mm Ultra Fine Enameled Copper Wire Solderable 3

2uew 155 / 180 0.02mm Ultra Fine Enameled Copper Wire Solderable 4
