2uew155 0.02mm Enamel Coated Copper Wire Solderable Polyurethane

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.02mm
Minimum Order Quantity: 5kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: Enameled Copper Wire Diameter: 0.02mm/ 52 AWG
Insulation: Polyurethane Thermal Grade: 155/180
Conductor Material: Copper Conductor Type: Solid
High Light:

2uew155 enamel coated copper wire

,

0.02mm enamel coated copper wire

,

solderable polyurethane enameled copper wire


Product Description

2UEW155 0.02mm Solderable Polyurethane Enameled Copper Wire



We supply high quality enameled copper wire, size range from 0.011mm-1.2mm, class 155/ class 180, widely used in transformer, motor and other electric devices.We offersamples, around 5kg/spool.

We are one of the pioneers in producing super thin enameled wires below 0.03mm in China. We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved.





Characteristics
Technical requests
Test Results

Sample 1
Sample 2
Surface
Good
OK
OK
Bare Wire Diameter
0.020±
0.001
0.02
0.02
Overall Diameter
0.022-0.024
0.023
0.023
Conductor Resistance
≤60.810Ω/m
56.812
56.403
Elongation
≥8%
10%
10%
Breakdown Voltage
≥130V
212
247
Pinhole Test
≤ 8 holes/5m
1
0
Test Items
Test Items

Results
Conclusion:Approved
Adhesive
Adhesive

OK
Approved
Cut-through
Cut-through

OK

Heat Shock
Heat Shock

OK
Audit by
Solder Ability
Solder Ability

OK

Solvent Resistance
Solvent Resistance

OK

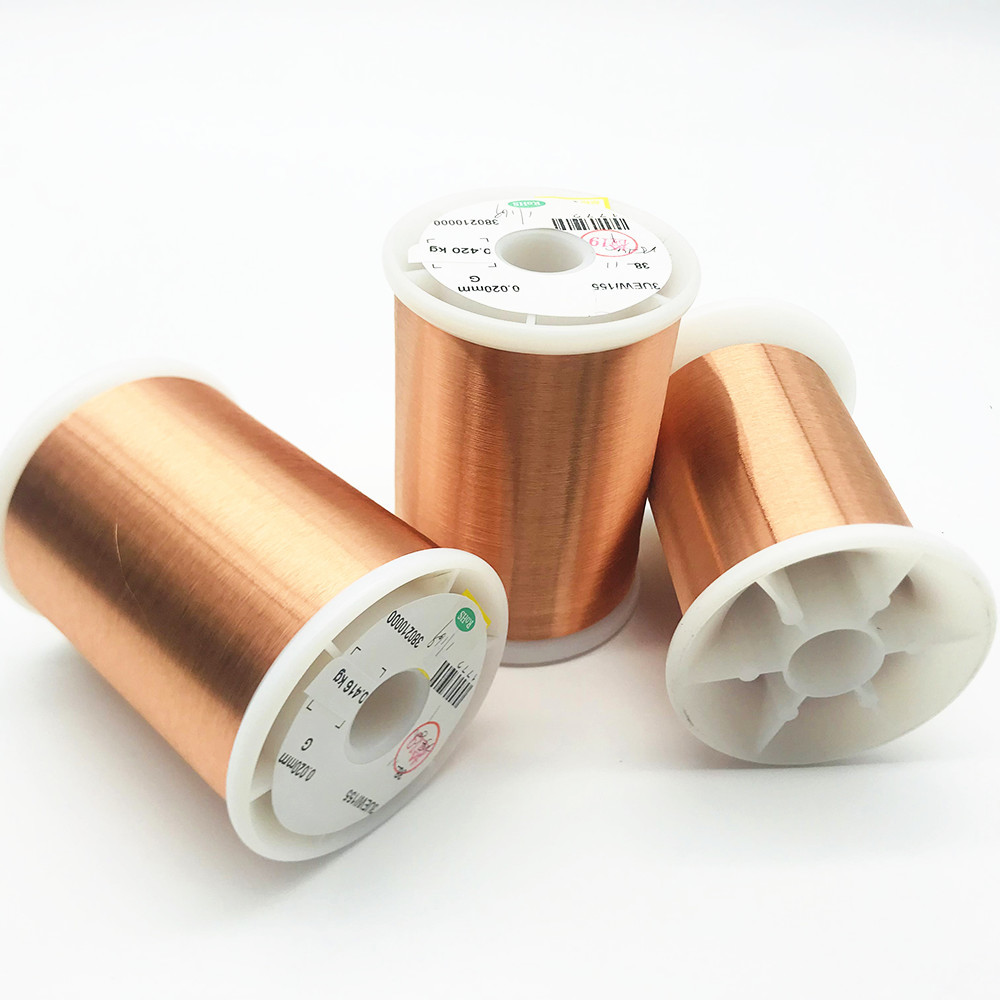

2uew155 0.02mm Enamel Coated Copper Wire Solderable Polyurethane 0
