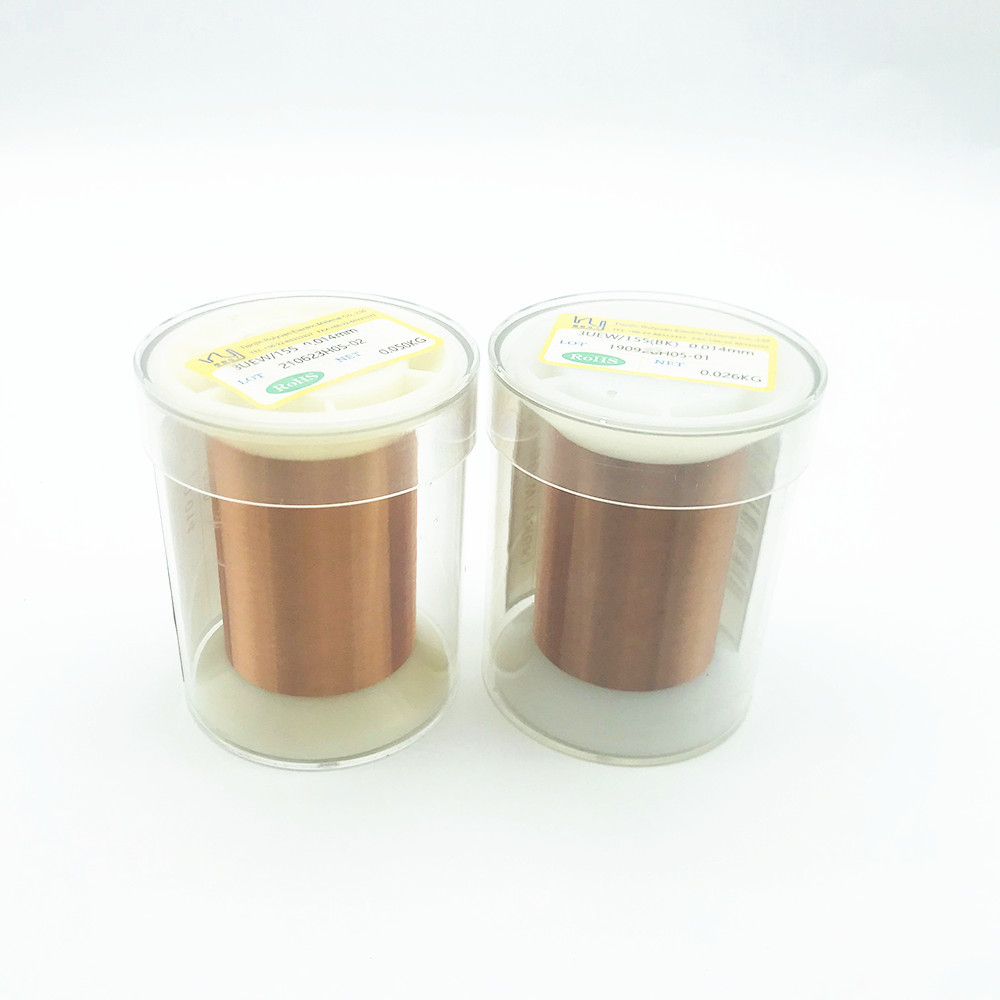

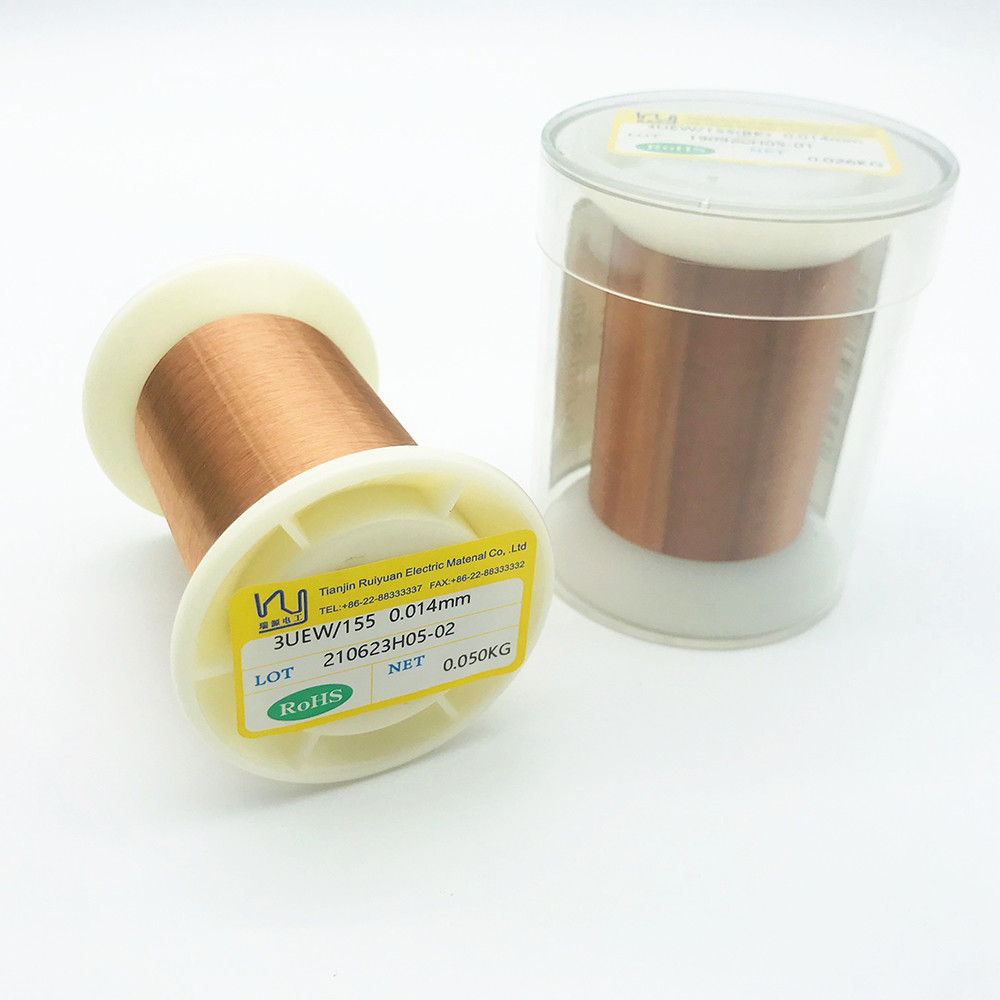

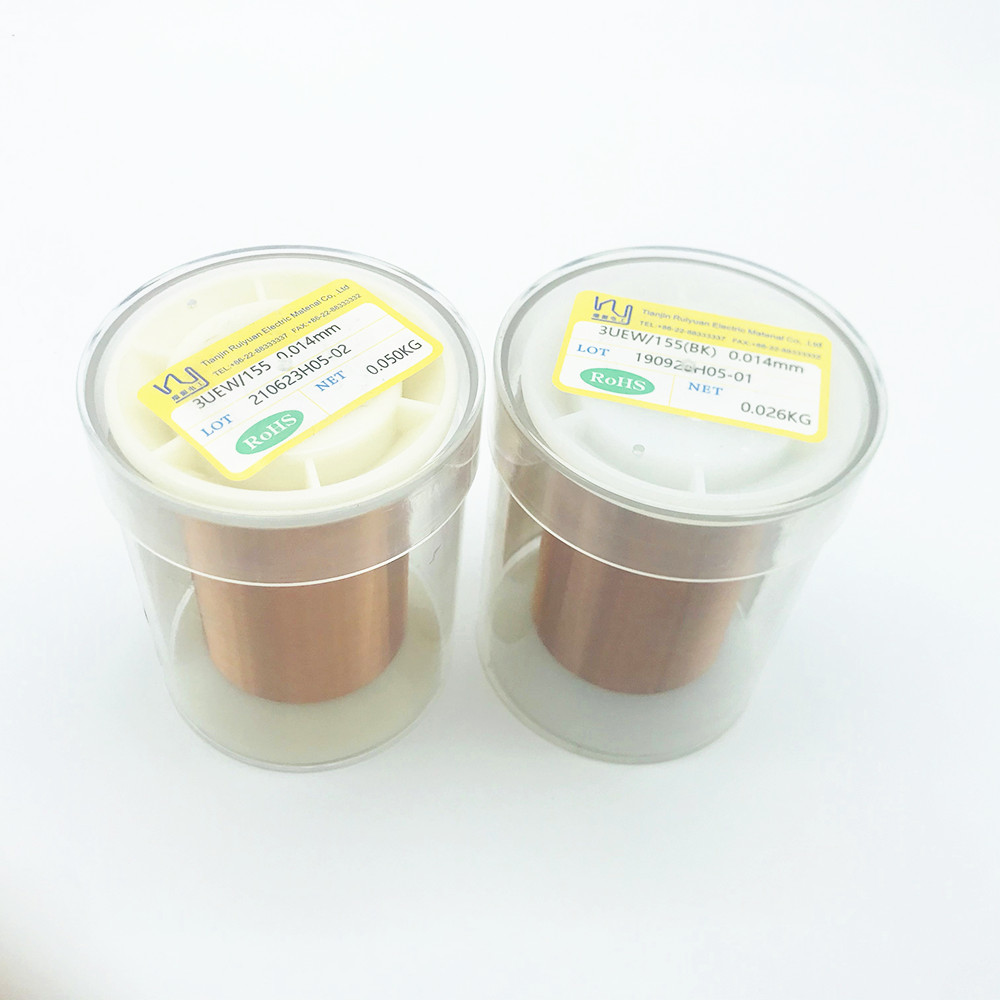

55 AWG 0.014mm Polyurethane 155 Solderable Enamelled Copper Wire For Watch

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.014mm
Minimum Order Quantity: 50g
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: Negotiation
Detail Information
Product Name: Enameled Copper Wire Diameter: 0.014mm
Material: Copper Insulation: UEW
Thermal Grade: 155 Breakdown Voltage: 243V
High Light:

55 AWG Solderable Enamelled Copper Wire

,

0.014mm Solderable Enamelled Copper Wire

,

UEW Insulation Plain Enamel Wire


Product Description

55 AWG 0.014mm Polyurethane 155 Ultra Fine Magnet Wire Enameled Copper Wire For Watch



Enameled copper wire is a copper coated with a very thin layer of insulation.It is used in the construction of
transformers,inductors, motors, speakers, hard disk head actuators, electromagnets, and other applications that require tight coils of insulated wire.

3UEW155 0.014mm

Test item

Standard value

Reality value

Conductor dimensions(mm)

0.014mm±0.001

0.014

0.014

0.014

Overall dimensions(mm)

Max.0.017mm

0.0168

0.0168

0.0168

Insulation film thickness(mm)

Min.0.002

0.0028

0.0028

0.0028

Continuity of covering(50V/30M)PCS

Max.60

Max.0

Breakdown voltage(v)

Min.100

Min.243

Resistance to softening(cut through)℃

Continue 2 times pass

200℃/Good

Solder test(390℃±5s

Max.2

Max.1.5

Electrical resistanceΩ/m

98-115

108.6

108.6

108.6

Elongation%

Min.3

10

10

10



55 AWG 0.014mm Polyurethane 155 Solderable Enamelled Copper Wire For Watch 0
