Awg 56 Ultrafine 0.012mm Enamel Insulated Copper Wire High Purity

Detail Information
Product Name: Enameled Copper Wire Insulation: 2UEW
Diameter: 0.012mm Thermal Grade: 155
Conductor Material: Copper Port: Tianjin
Highlight:

awg 56 enamel insulated wire

,

ultrafine enamel insulated copper wire

,

0.012mm enamel insulated copper wire


Product Description

Magnet Wire AWG 56 Similar to Elektrisola Enamled Copper Ultrafine 0.012mm High Purity



We are one of the pioneers in producing micro thin enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with a share of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materials.We surpass them in terms of "service, quick response"; 30% lower "price" is our advantage.



Characteristics
Technical requests
Test Results
Sample 1
Sample 2
Surface
Good
OK
OK
Bare Wire Diameter
0.012±0.005
0.012
0.012
Coating Thickness
≥ 0.003 mm
0.03
0.04
Overall Diameter
Max.0.017mm
0.015
0.016
Conductor Resistance(Ω/m at 20℃)
≤ 165.99Ω/m
155.18
154.36
Elongation
≥ 5%
8
8
Breakdown Voltage
≥ 110V
314
Adhesive
Coating layer is good
OK
Cut-through
200℃ 2 times no breakdown
OK
Solder Ability
390± 5℃ 2Sec Smooth
OK

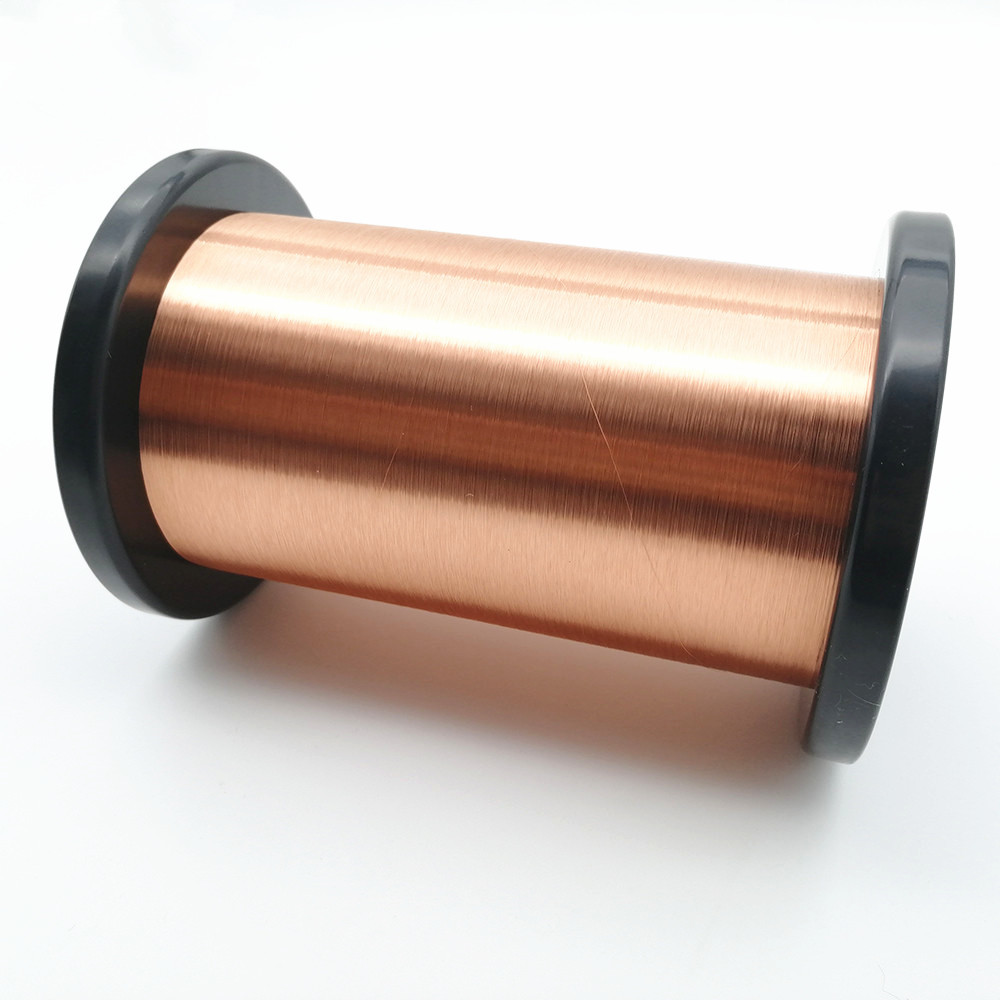

Awg 56 Ultrafine 0.012mm Enamel Insulated Copper Wire High Purity 0
