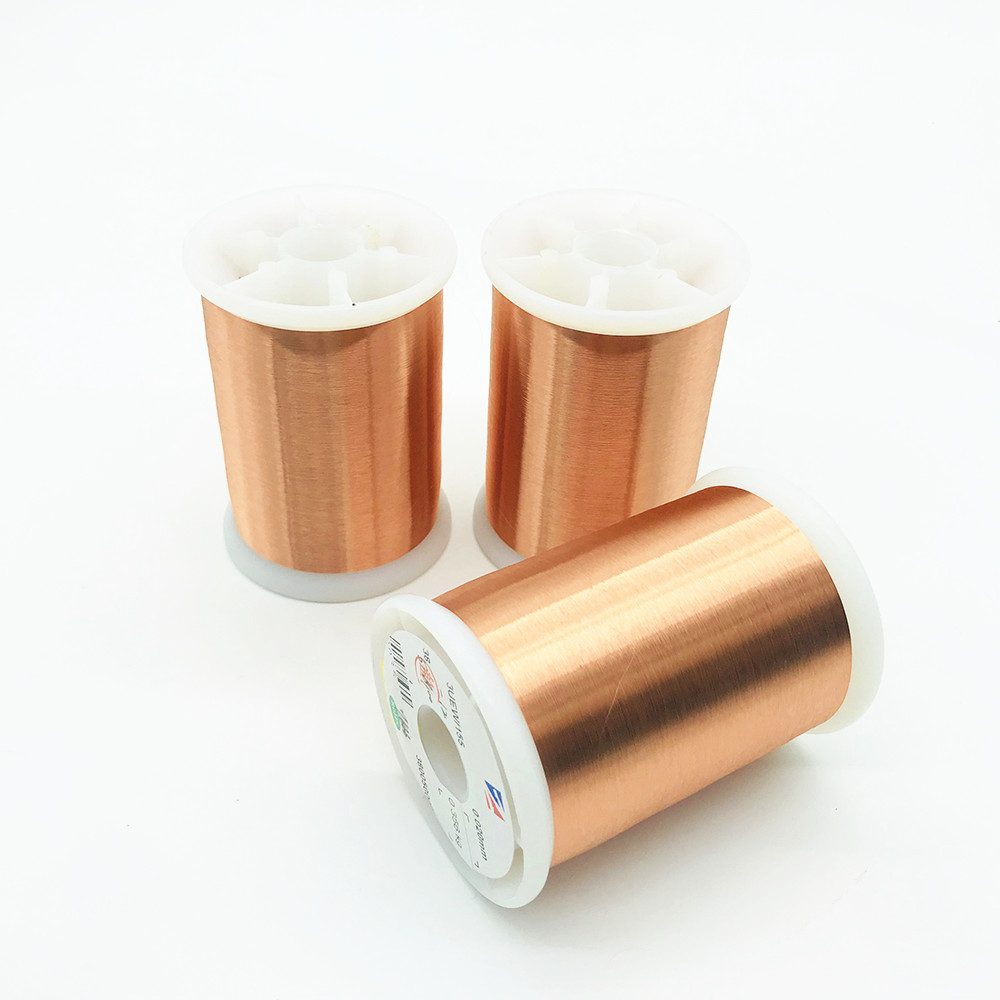

Coils Windings Round 0.011mm Enameled Copper Magnet Wire

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.011mm
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 200 Ton/Tons per Month
Detail Information
Product Name: Magnet Wire Insulation: UEW
Size: 0.011mm Thermal Grade: 155 / 180
Conductor Material: Copper Port: Tianjin
High Light:

UEW enameled copper magnet wire

,

0.011mm enameled copper magnet wire

,

0.011mm enameled copper wire


Product Description

High Quality Coils , Windings Using Enameled Copper Round Wire



We are one of the pioneers in producing micro thin enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with a share of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materials.We surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...



We have a long history of producing self-adhesive lines. Since the beginning of our factory, we have started to develop and produce self-adhesive lines. Because of our strong R & D strength, our products have a wide range of applications.We have a full range of self-adhesive lines and a wide range of applications.Thermal class is155C, 180 C, 200 C, 220 C. Conductor material includes enameled round wire, enameled copper-clad aluminum wire.

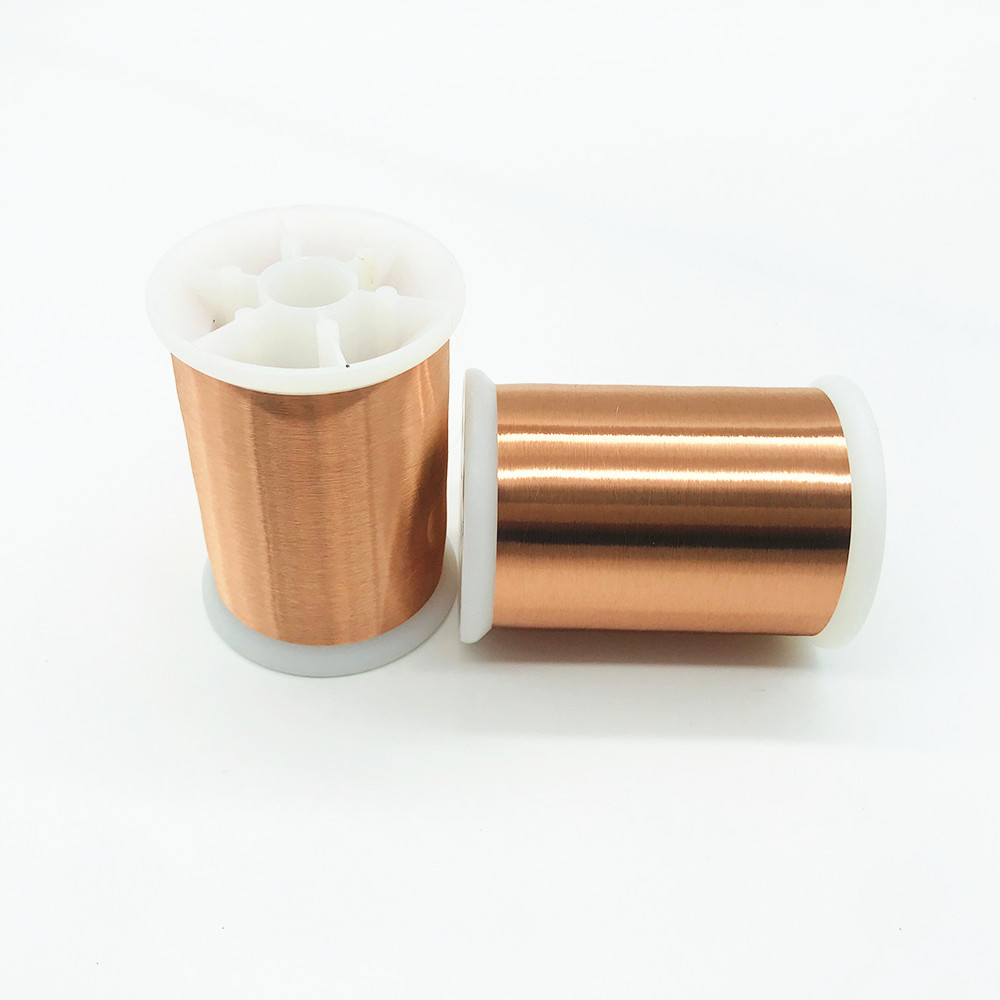

Coils Windings Round 0.011mm Enameled Copper Magnet Wire 0



Test report



  Characteristics Technical requests Test Results Conclusion
Sample 1 Sample 2 Sample 3
1 Surface Good OK OK OK OK
2 Bare Wire Diameter 0.011± 0.0005 0.0011 0.011 0.011 OK
0.0005
3 Coating Thickness ≥0.001mm 0.0017 0.0017 0.0017 OK
4 Overall Diameter ≤0.013mm 0.0127 0.0127 0.0127 OK
5 Conductor Resistance 165.9-199.1Ω/m 182.1 182.1 182.1 OK
6 Elongation ≥3% 5.9 5.9 5.9 OK
7 Breakdown Voltage ≥100 V Min 173 OK
8 Pinhole Test ≤12holes/5m 0 1 1 OK


Test Items Technical Requests Results Conclusion:Approved
AdhesiveCoating layer is good OK
Cut-through 200℃ 2mins no breakdown OK
Heat Shock 175±5℃/30min no crack OK
Solder Ability 390± 5℃ 1.5 Sec Smooth OK
