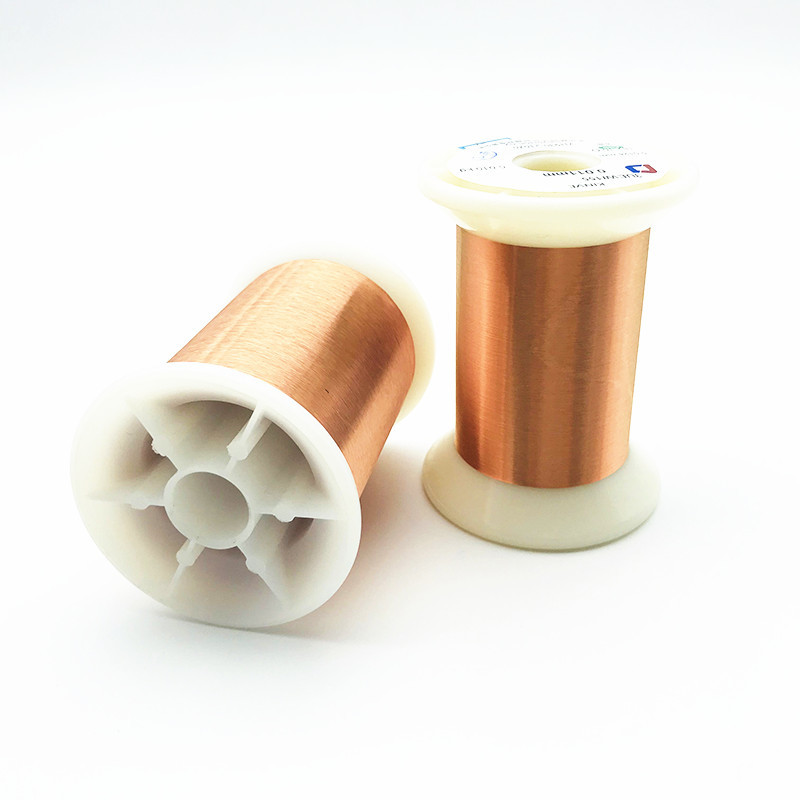

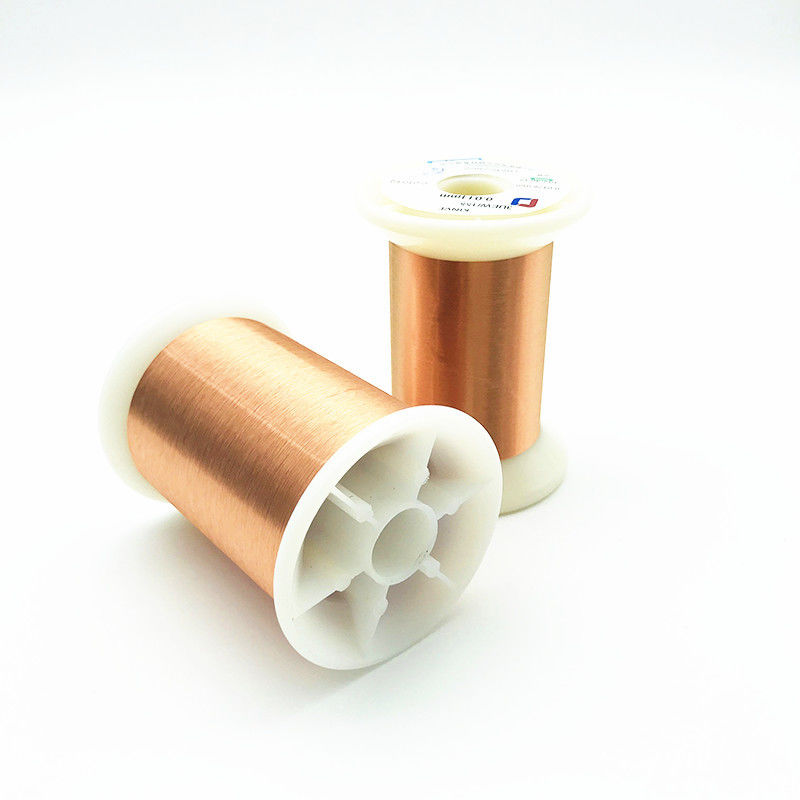

UEW Insulation Awg 42 0.063mm Magnet Copper Enameled Wire

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.063mm
Minimum Order Quantity: 20 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 200 Ton/Tons per Month
Detail Information
Item: Magnet Wire Material: Copper
Insulation: UEW Conductor Type: Solid
Thermal Class: 155/180/220 Port: Tianjin
High Light:

Awg 42 Copper Enameled Wire

,

0.063mm Copper Enameled Wire

,

UEW Insulation Enameled Copper Wire


Product Description

AWG 42 0.063mm Magnet Wire Copper Ultra Thin Enameled Copper Wire



We are one of the pioneers in producing micro thin enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with a share of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materials.We surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...



Application:



Voice coil.

Guitar pickup

Motor winding

Transformer



Characteristics Technical requests Test Results Conclusion
Sample 1 Sample 2 Sample 3
Surface Good OK OK OK OK
Bare Wire Diameter 0.630± 0.005 0.632 0.632 0.632 OK
0.005
Coating Thickness ≥ 0.027 mm 0.034 0.034 0.034 OK
Overall Diameter ≤ 0.672 mm 0.666 0.666 0.666 OK
Conductor Resistance ≤ 0.0562Ω/m 0.0549 0.0555 0.0542 OK
Elongation ≥ 28 % 34 35 36 OK
Breakdown Voltage ≥ 3500 V 6387 5500 5600 OK
Pinhole Test ≤ 5 holes/5m 0 0 0 OK
Enamel continuity ≤ 25 holes/30m 0 0 0 OK
Remark:
Test Items Technical Requests Results Conclusion:
Adhesive Coating layer is good OK Approved
Cut-through 200℃ 2mins no breakdown OK
Heat Shock 180±5℃/30min no crack OK Audit by Tested by
Solder Ability 390± 5℃ 2 Sec Smooth OK   Pan Lihong
Solvent Resistance No blister, no expansion, no shed       OK
