Detail Information

Type:	Insulated	Conductor Material:	Copper
Conductor Type:	Solid	Insulation Material:	Enameled
Solderability:	Yes	Insulation:	Polyurethane
Conductor:	Copper
Highlight:	round copper wire , thin coated copper wire

Product Description

Thin Round 0.012-0.08mm Ultra Thin Enameled Copper Wire Solid Conductor Type

-Advantages of manget wire:

Magnet wire has excellent mechanical, electrical and chemical performance, especially in high current output, heat resistance and corrosion resisitance.

-Application of magnet wire:

Magent wire is mainly used in high-voltage transformers, electric machines, generator, etc.

-Do you know self bonding wire?

A special type of enamelled wire is self bonding or adelaide enameleld wire. Self bonding wire is an enamelled wire with an additional adhesive enamel overcoat. This adhesive has a bonding feature, which is activated by heat or solvents.Once activated the adhesive bonds turn to turn windings into a compact self supporting coil.

-The use of self bonding wire:

The use of self bonding wire may offer cost and manufacturing advantages in some winding applications as bobbins, tape, varnishing, or impregnation may be
eliminated.

Nominal Diameter	Min. Increase of Diameter	Max. Overall Diameter	Breakdown Voltage		Elongation	Electrical Resistance
mm	mm	mm	≥ V		≥%	Ω/km (20℃)
			Mandrel Method	Twisted Method		Min.	Max.
0.012	0.013	0.015	50.000	----	5.00	142.64	157.65
0.013	0.015	0.017	70.000	----	5.00	118.41	133.98
0.014	0.016	0.018	70.000	----	5.00	102.64	120.45
0.015	0.017	0.020	80.000	----	5.00	89.83	104.41
0.016	0.018	0.021	90.000	----	5.00	74.67	97.56
0.017	0.019	0.022	90.000	----	5.00	66.60	85.75
0.018	0.020	0.023	100.000	----	5.00	59.77	75.95
0.019	0.021	0.024	100.000	----	5.00	53.95	67.75
0.020	0.022	0.024	100.000	----	8.00	51.83	60.81
0.050	0.007	0.062	400.000	1200.00	12.00	7981.00	9528.00
0.055	0.007	0.068	400.000	1200.00	12.00	6642.00	7815.00
0.060	0.007	0.073	500.000	1200.00	14.00	5614.00	6526.00
0.085	0.008	0.099	550.000	1200.00	16.00	2851.00	3187.00
0.090	0.010	0.106	650.000	1200.00	16.00	2550.00	2835.00
0.095	0.010	0.111	650.000	1200.00	17.00	2294.00	2538.00
0.100	0.011	0.118	650.000	1200.00	17.00	2074.00	2286.00
0.110	0.011	0.129	----	1300.00	17.00	1720.00	1882.00
0.120	0.011	0.139	----	1500.00	17.00	1450.00	1577.00
0.130	0.011	0.149	----	1500.00	18.00	1239.00	1340.00
0.140	0.011	0.159	----	1600.00	19.00	1070.00	1153.00
0.150	0.011	0.169	----	1700.00	20.00	934.10	1002.00
0.160	0.012	0.180	----	1700.00	21.00	822.30	879.40
0.170	0.013	0.192	----	2000.00	22.00	721.10	787.10
0.180	0.014	0.204	----	2000.00	22.00	644.40	700.70
0.190	0.014	0.214	----	2000.00	23.00	579.40	627.80
0.200	0.014	0.224	----	2000.00	23.00	523.70	565.70
0.210	0.014	0.234	----	2000.00	23.00	475.70	512.30
0.220	0.014	0.245	----	2200.00	23.00	434.00	466.20
0.230	0.016	0.257	----	2200.00	24.00	397.50	426.00
0.240	0.016	0.267	----	2200.00	24.00	365.50	390.80
0.250	0.016	0.277	----	2300.00	24.00	337.10	359.80
0.260	0.018	0.287	----	2300.00	25.00	309.60	335.00
0.270	0.018	0.297	----	2300.00	25.00	287.40	310.30
0.280	0.022	0.313	----	2300.00	25.00	267.60	288.20
0.290	0.022	0.323	----	2500.00	25.00	249.70	268.40
0.300	0.022	0.334	----	2500.00	25.00	233.50	250.60
0.310	0.022	0.344	----	2500.00	25.00	218.90	234.40
0.315	0.022	0.349	----	2500.00	25.00	212.10	227.00
0.320	0.023	0.355	----	2700.00	25.00	205.60	219.80
0.330	0.023	0.365	----	2700.00	25.00	193.50	206.60
0.350	0.023	0.385	----	2700.00	26.00	172.20	183.40
0.355	0.023	0.390	----	2700.00	26.00	167.40	178.20
0.370	0.024	0.406	----	2900.00	26.00	154.30	163.90
0.380	0.024	0.416	----	2900.00	26.00	146.40	155.30

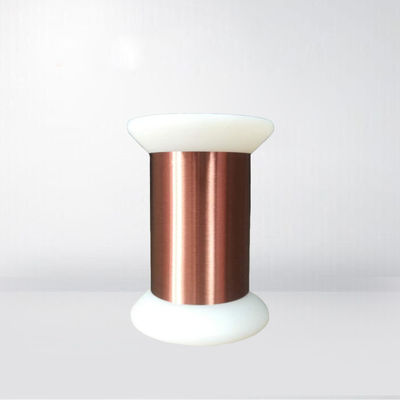

Thin Round 0.012-0.08mm Ultra Thin Enameled Copper Wire Solid Conductor Type 0

Tag:

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	UEW

Minimum Order Quantity:	2kgs
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	7-15 work days
Payment Terms:	L/C,T/T
Supply Ability:	200 Ton/Tons per Month
