Super Fine Enamel Coated Copper Wire / UEW Insulation Enameled Magnet Wire

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: UEW
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Contact Now
Detail Information
Thermal Class: 155/180 Delivery Time: 2-15 Days
Insulation: UEW Size Range: 0.012-0.8mm
Color: Nature/Red/blue/Green Certification: IEC/JIS/NEMA
High Light:

round copper wire

,

thin coated copper wire


Product Description

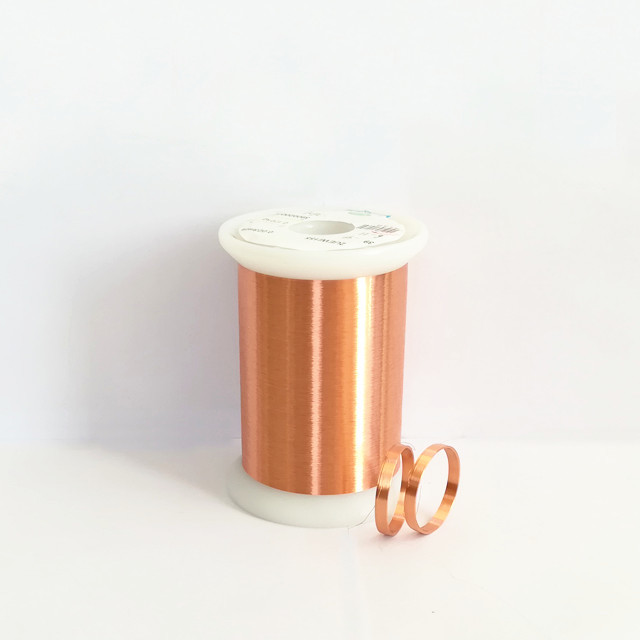

SUPER FINE ENAMELED COATED COPPER WIRE UEW INSULATION ENAMELED MAGNET WIRE

Enamelled copper wire, also called "Magnet Wire," is widely used in various Electrical Applications due to its superior Electrical, Thermal and Mechanical Properties. Enameled Copper Wire are insulated by coating it with enamel of different temperature class. Enamelled Copper Wire are primarily used in three types of applications - in transformers to transform one kind of electrical energy into other kinds. Copper Enameled Winding Wire are used in motors to transform electrical energy into mechanical energy. Enamelled Copper Winding Wire are also used in generators to transform mechanical energy into electrical energy.0.012mm,0.013mm,0.015mm-0.15mm superfine/ultrafine enamelled copper wire are corresponding to the industry standards IEC60317, NEMA MW1000 JIS C3202or to customer specific requirements.

FEATURES

1 .High Quality Standard for Enamelled Wire Products The effectiveness of the quality assurance measures has been confirmed by external auditors repeatedly in numerous certificates

2. Environmentally Compatible Enamelled Copper Wire. Our products are confriemd by Independent laboratories confirm with their corresponding RoHS certificates.

Super Fine Enamel Coated Copper Wire / UEW Insulation Enameled Magnet Wire

APPLICATION

transformers and motors,voice coil, relays, coils, Ignition coils etc

Specifications of superfine and fine wire

Nominal Diameter mm

Tolerance

mm

Min. Increase of Diameter

Max. Overall Diameter

Breakdown Voltage

≥ V

Elongation

≥%

Pin Hole

≤Default/5m

Electrical Resistance

Ω/km (20℃)









Mandrel Method

Twisted Method





Min.

Max.

0.012

----

0.013

0.015

50

----

5

10

142.64

157.65

0.013

----

0.015

0.017

70

----

5

10

118.41

133.98

0.014

----

0.016

0.018

70

----

5

10

102.64

120.45

0.015

----

0.017

0.020

80

----

5

10

89.83

104.41

0.016

----

0.018

0.021

90

----

5

8

74.67

97.56

0.017

----

0.019

0.022

90

----

5

8

66.60

85.75

0.018

----

0.020

0.023

100

----

5

8

59.77

75.95

0.019

----

0.021

0.024

100

----

5

8

53.95

67.75

0.050

±0.002

0.007

0.062

400

1200

12

5

7981

9528

0.055

±0.002

0.007

0.068

400

1200

12

5

6642

7815

0.060

±0.002

0.007

0.073

500

1200

14

5

5614

6526

0.065

±0.002

0.007

0.078

500

1200

14

5

4807

5531

0.070

±0.002

0.007

0.083

500

1200

15

5

4163

4747

0.075

±0.002

0.007

0.088

550

1200

15

5

3640

4119

0.080

±0.002

0.008

0.094

550

1200

16

5

3209

3608

0.085

±0.002

0.008

0.099

550

1200

16

5

2851

3187

0.090

±0.002

0.010

0.106

650

1200

16

5

2550

2835

0.095

±0.002

0.010

0.111

650

1200

17

5

2294

2538

0.100

±0.002

0.011

0.118

650

1200

17

5

2074

2286

0.110

±0.002

0.011

0.129

----

1300

17

5

1720

1882

0.120

±0.002

0.011

0.139

----

1500

17

5

1450

1577

0.130

±0.002

0.011

0.149

----

1500

18

5

1239

1340

0.140

±0.002

0.011

0.159

----

1600

19

5

1070

1153

0.150

±0.002

0.011

0.169

----

1700

20

5

934.1

1002

0.160

±0.002

0.012

0.180

----

1700

21

5

822.3

879.4

0.170

±0.003

0.013

0.192

----

2000

22

5

721.1

787.1

0.180

±0.003

0.014

0.204

----

2000

22

5

644.4

700.7

0.190

±0.003

0.014

0.214

----

2000

23

5

579.4

627.8

0.200

±0.003

0.014

0.224

----

2000

23

5

523.7

565.7
