| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | PEW/UEW/EIW |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Minimum Conductor Widthe: | 0.02mm | Temperature: | 180/220 |
|---|---|---|---|
| Insulation: | AIW/EIW/UEW | Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Stock: | Avaialble | Conductor: | Copper |
| High Light: | self bonding copper wire,enamelled winding wire |
||

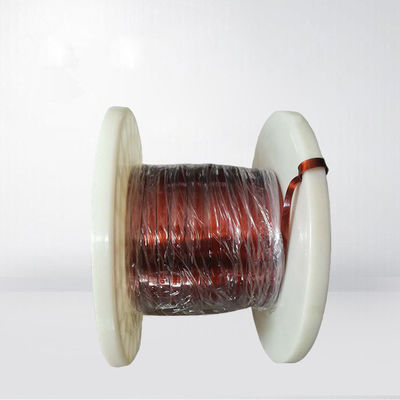

0.02mm ULTRA FINE COPPER WIRE RECTANGULAR FLAT COPPER WIRE ENAMEL SELF BONDING WIRE
Rectangular or square wire is made from base copper with rectangular or square shape, it has high advantages compare with round wire, and applied in many field.With the development of technology, electric devices, including laptop computers, mobiles and more, are becoming smaller and compact these days. Along with the trend, coils that are used inside of the devices are required to be compact and more powerful to save the space.Our rectangular wire will be the best solution to satisfy those needs.
CERTIFICATES:
ISO 9001-2000, ISO TS 16949, ISO 14001-2004,
UL Approved, RoHS Directive Met
Executive standards: IEC, JIS and NEMA.
FEATURES AND BENEFITS:
High space factor. Higher density of conductor makes component smaller or makes component with high efficiency, save material cost.
The coil made from rectangular wire has better cooling efficiency.
Rectangular wire can be wound with different mode.
The coil can be better shape, flat and smooth.
APPLICATION:
Motor, transformer, moving coil, plate mount coil, inverter, inductor, speaker, projector, valve
TECHNICAL SPECIFICATION:
| Product | Class | Solderable | Self bonding | Product Range | ||
| Width(mm) | Thickness(mm) | Width-Thickness Ratio | ||||
| AIWJ | 220℃ | x | x | 0.155--7.5 | 0.02-1.8 | 1.25 |
| EI/AIWJ | 220℃ | x | x | 0.155--7.5 | 0.02-1.8 | 1.25 |
| EI/AIWJ | 200℃ | x | x | 0.155--7.5 | 0.02-1.8 | 1.25 |
| UEWJ | 180℃ | 0 | x | 0.155--7.5 | 0.02-1.8 | 1.25 |
| EIWJ | 180℃ | x | x | 0.155--7.5 | 0.02-1.8 | 1.25 |
| SEIWJ | 180℃ | 0 | x | 0.155--7.5 | 0.02-1.8 | 1.25 |
| UEWJ | 155℃ | 0 | x | 0.155--7.5 | 0.02-1.8 | 1.25 |
| UEWJ | 130℃ | 0 | x | 0.155--7.5 | 0.02-1.8 | 1.25 |
| EI/SBWJ | 180℃ | x | 0 | 0.155--7.5 | 0.02-1.8 | 1.25 |
| SEI/SBWJ | 180℃ | 0 | 0 | 0.155--7.5 | 0.02-1.8 | 1.25 |
| EI/AI/SBWJ | 220℃ | x | 0 | 0.155--7.5 | 0.02-1.8 | 1.25 |
| AI/SBWJ | 220℃ | x | 0 | 0.155--7.5 | 0.02-1.8 | 1.25 |
| UE/SBWJ | 180℃ | 0 | 0 | 0.155--7.5 | 0.02-1.8 | 1.25 |
| UE/SBWJ | 155℃ | 0 | 0 | 0.155--7.5 | 0.02-1.8 | 1.25 |
| UE/SBWJ | 130℃ | 0 | 0 | 0.155--7.5 | 0.02-1.8 | 1.25 |
