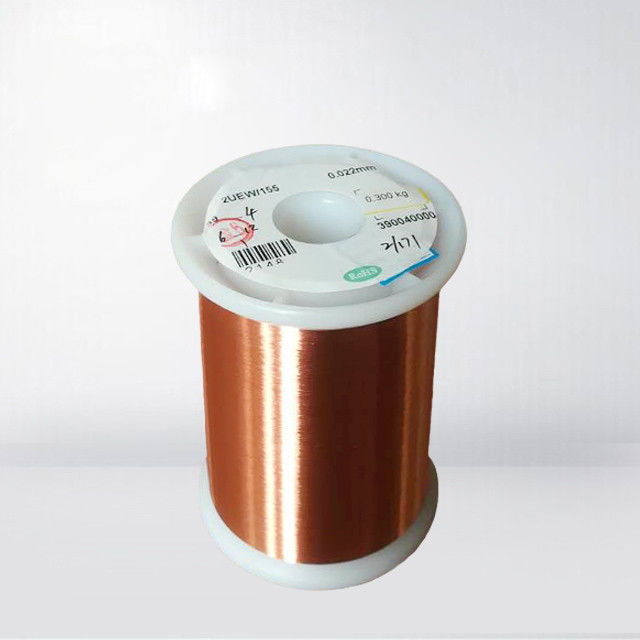

0.012-3.00MM Ultra Fine Self Bonding Enameled Copper Wire Magnet Copper Wire For Transformer Winding

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: UEW
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Contact Now
Detail Information
Color: Red/Green/Normal Certification: ISO9001/ISO14001/UL /SGS
Insulation: Polyesterimide Diameter: 0.012-3.00MM
Thermal Class: 155 Conductor: High Purity Copper
High Light:

self bonding copper wire

,

enamelled winding wire


Product Description

0.012-3.00MM ULTRA FINE SELF BONDIGN ENAMELED COPPER WIRE MAGNET COPPER WIRE FOR TRANSFORMER WINDING

We are one of the pioneers in producing micro thin enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with a share of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materials.We surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...

We have a long history of producing self-adhesive lines. Since the beginning of our factory, we have started to develop and produce self-adhesive lines. Because of our strong R & D strength, our products have a wide range of applications.We have a full range of self-adhesive lines and a wide range of applications.Thermal class is155C, 180 C, 200 C, 220 C. Conductor material includes enameled round wire, enameled copper-clad aluminum wire

sulated wires to meet your requirements.

MAIN FEATURES:

1) With good solderability, reduces coil production costs due to elimination of mechanical or chemical stripping.
2) Superior ''Q'' characteristic at high frequencies.
3) Excellent film adhension and flexibility.
4) Extremely resistant to a variety of solvents including most varnishes and hardener catalysts.

INSULATION DESCRIPTION:
UEW is a film insulation compcsed of Polyisocy-anate & Polyol. It's widely used in coils and motor windings.

SPECIFICATION

Nominal Diameter mm   Min. Increase of Diameter Max. Overall Diameter
Tolerance Breakdown Voltage Elongation Pin Hole Electrical Resistance
mm ≥ V ≥% ≤Default/5m Ω/km (20℃)
  Mandrel Method Twisted Method     Min. Max.
0.012 ---- 0.013 0.015 50 ---- 5 10 142.64 157.65
0.013 ---- 0.015 0.017 70 ---- 5 10 118.41 133.98
0.014 ---- 0.016 0.018 70 ---- 5 10 102.64 120.45
0.015 ---- 0.017 0.02 80 ---- 5 10 89.83 104.41
0.016 ---- 0.018 0.021 90 ---- 5 8 74.67 97.56
0.017 ---- 0.019 0.022 90 ---- 5 8 66.6 85.75
0.018 ---- 0.02 0.023 100 ---- 5 8 59.77 75.95
0.019 ---- 0.021 0.024 100 ---- 5 8 53.95 67.75
