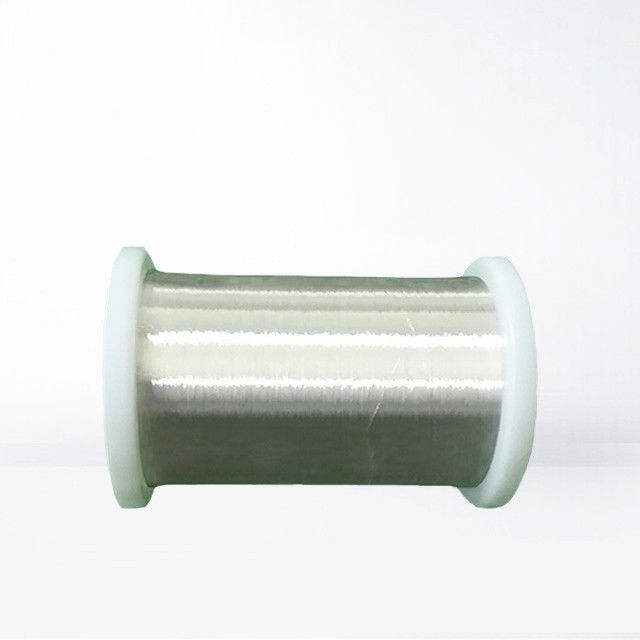

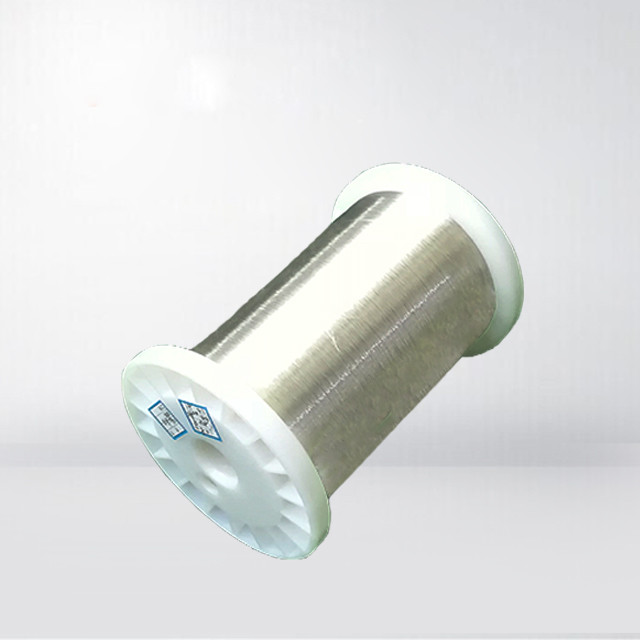

High End Super Fine Enamelled Copper Wire / Silver Plated Round Copper Wire High Conductivity

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: ISO9001/ISO14001/UL/SGS
Model Number: 0.05mm
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation, T/T, L/C
Supply Ability: Satisfy your demand
Detail Information
Conductor Thickness: 0.05mm Standard: IEC/JIC/NEMA
Material: Round Copper Conductor: Silver Plated Copper
Thermal Class: 155 Silver Content: 0.1-10%
Insulation: UEW/polyurethane
High Light:

fine enamel insulated copper wire

,

fine enamel insulated wire

,

0.05mm enamel insulated copper wire


Product Description

HIGH END SUPER FINE ENAMELED COPPER WIRE SILVER PLATED ROUND COPPER WIRE HIGH CONDUCTIVITY

Enameled copper alloy wire is an enamled wire mande of copper alloy conductor for special applications. such as special requirment of high conductivity, mechanical property, bending strength reisstance. The alloy includes copper silver alloy, copper zinc alloy, copper tin alloy and copper nickel alloy.

FEATURE

  • Copper silver Alloy: HIgh tensile strength, good bending strenth, high conductivity(>93%IACS)

  • Copper Zinc Alloy: Good mechanical property, corrosion resistance, lowe conductivity, excellent bending strength

  • Copper Tin Alloy: Excellent mechanicla and chemical property, extra-high corrosion resistance, good solderability

  • Copper Nickel Alloy: High conductivity, high tensile strength, high bending strength

APPLICATION

  • Copper Silver Alloy:HIgh end speaker coils, audio connection wire application. Silver Content:0.1-10%

  • Copper Zin Alloy: Gas nozzle, electro discharge machine, heating device. Zinc Content:10-30%

  • Copper Tin Alloy: Heating components application. Tin content:0.15%-6%

  • Copper Nickel Alloy: Heating components, resistance wire. Nickel content:2%-23%




Properties of various alloy wires

Property

Copper

Copper Silver Alloy

Copper Tin Alloy

Copper Zinc Alloy

Copper Nickel Alloy

Density(g/cm2)

8.9

8.9

8.8-8.9

8.3-837

8.9

Conductivity(IACS/%)

100

88-97

78-93

27-44

6-34

Tensile Strength(MPa)

220-2700

300-450

330-470

390-450

370-550

Resistance Temp.Coefficient(IE-6/K)

3900-4000

3100-3600

3200-3500

1300-1500

200-150
