| Conductor Material: | Copper | Diameter: | Max.1.85mm |
|---|---|---|---|
| Insulation Material: | Enameled | Rated Voltage: | Min.950V |
| Application: | Electric Appliance, Medical Equipment, Transformer | Conductor Type: | Solid |
| Shape: | Round | Single Wire Size: | 0.071MM |
| Working Temperature: | 155℃ | Type: | Insulated |

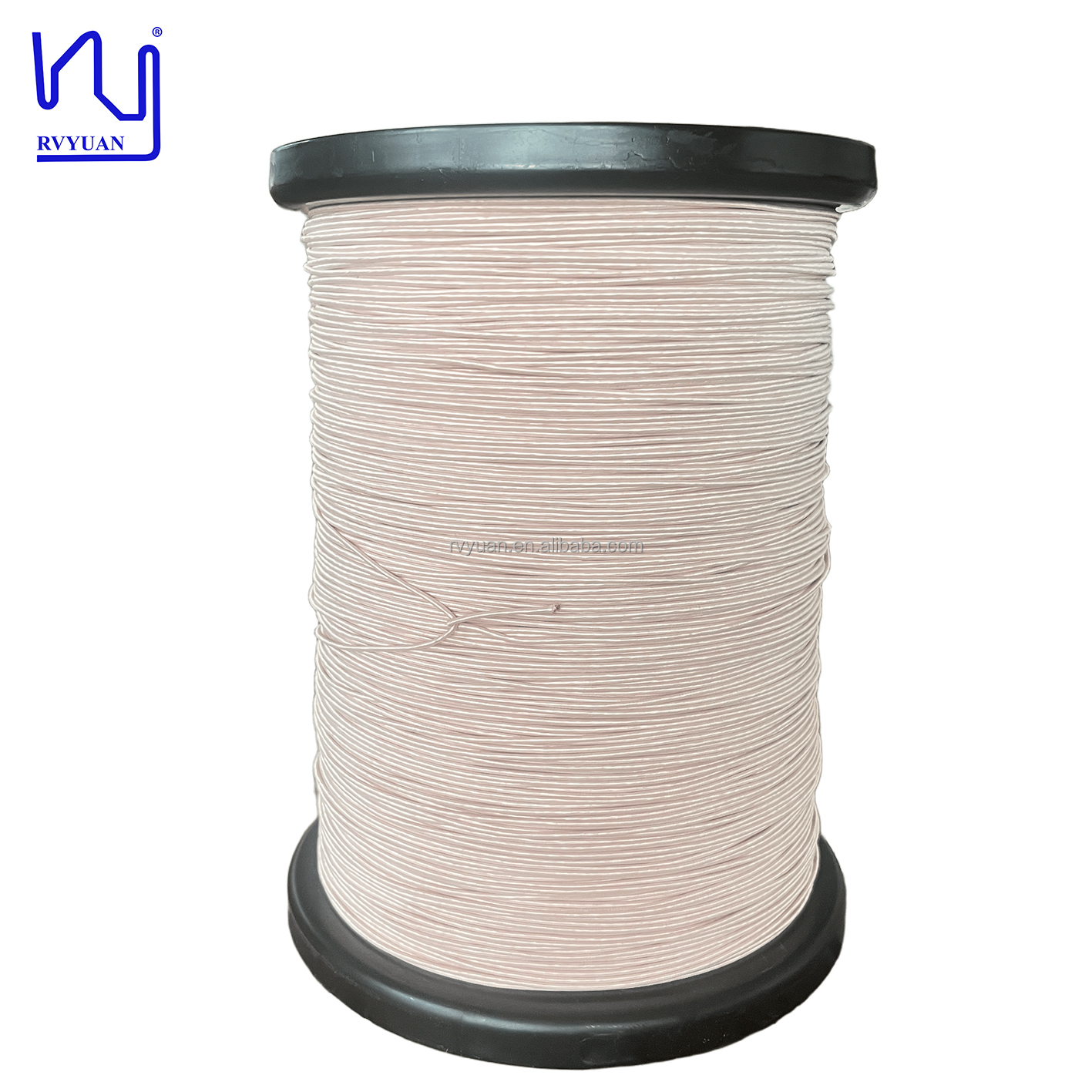

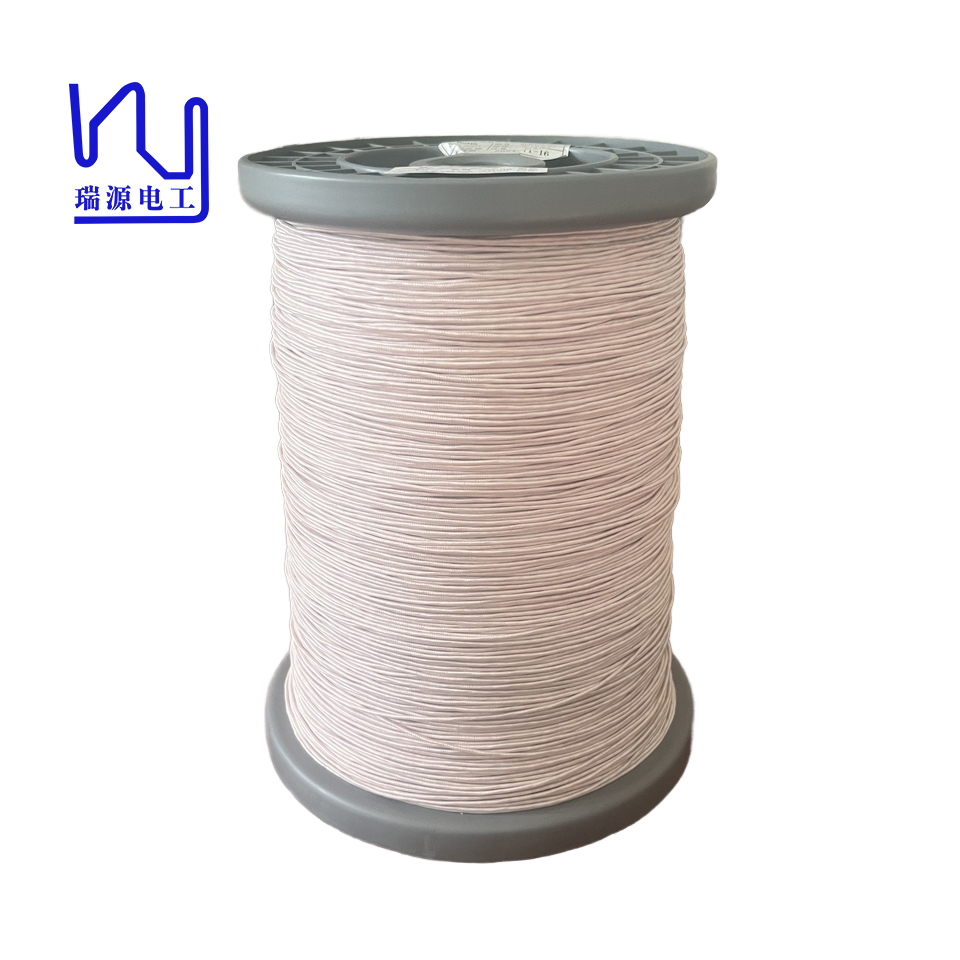

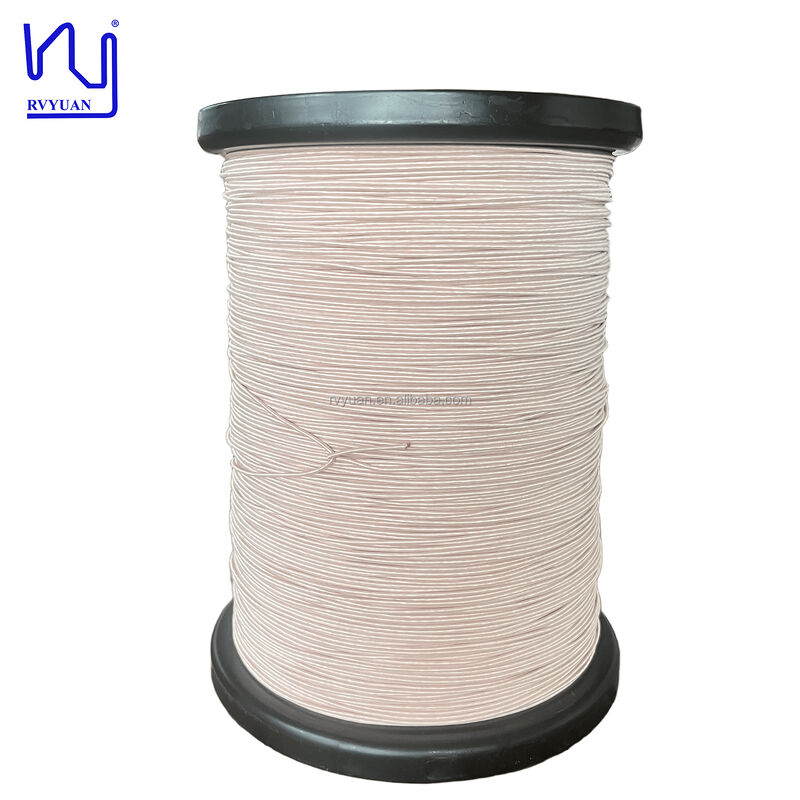

| Product Name: | Nylon Served Copper Litz Wire | Individual Wire Diameter: | 0.071mm |
| No. Of Strands: | 250 | ||
| Highlight: | 0.071mm nylon serving copper litz wire,250 strands ustc litz wire,nylon coated copper litz wire |
||
| Description | Conductor diameter*Strand number | 2UDTC-F |
|---|---|---|
| 0.071*250 | ||
| Conductor diameter (mm) | 0.071 |
| Conductor diameter tolerance (mm) | ±0.003 |
| Minimal insulation thickness (mm) | 0.004 |
| Maximal overall diameter (mm) | 0.084 |
| Thermal Class | 155 |
| Strand number | 50*5 |
| Pitch (mm) | 29±5 |
| Stranding direction | S |
| Category | Nylon |
| UL | / |
| Material specs (mm*mm or D) | 300+300 |
| Times of Wrapping | 2 |
| Overlap (%) or thickness (mm), mini | 0.02 |
| Wrapping direction | S |
| Max O.D (mm) | 1.85 |
| Max pin holes (个/6m) | 63 |
| Max resistance (Ω/Km at 20℃) | 19.96 |
| Mini breakdown voltage (V) | 950 |
| Package spool | PT-10 |

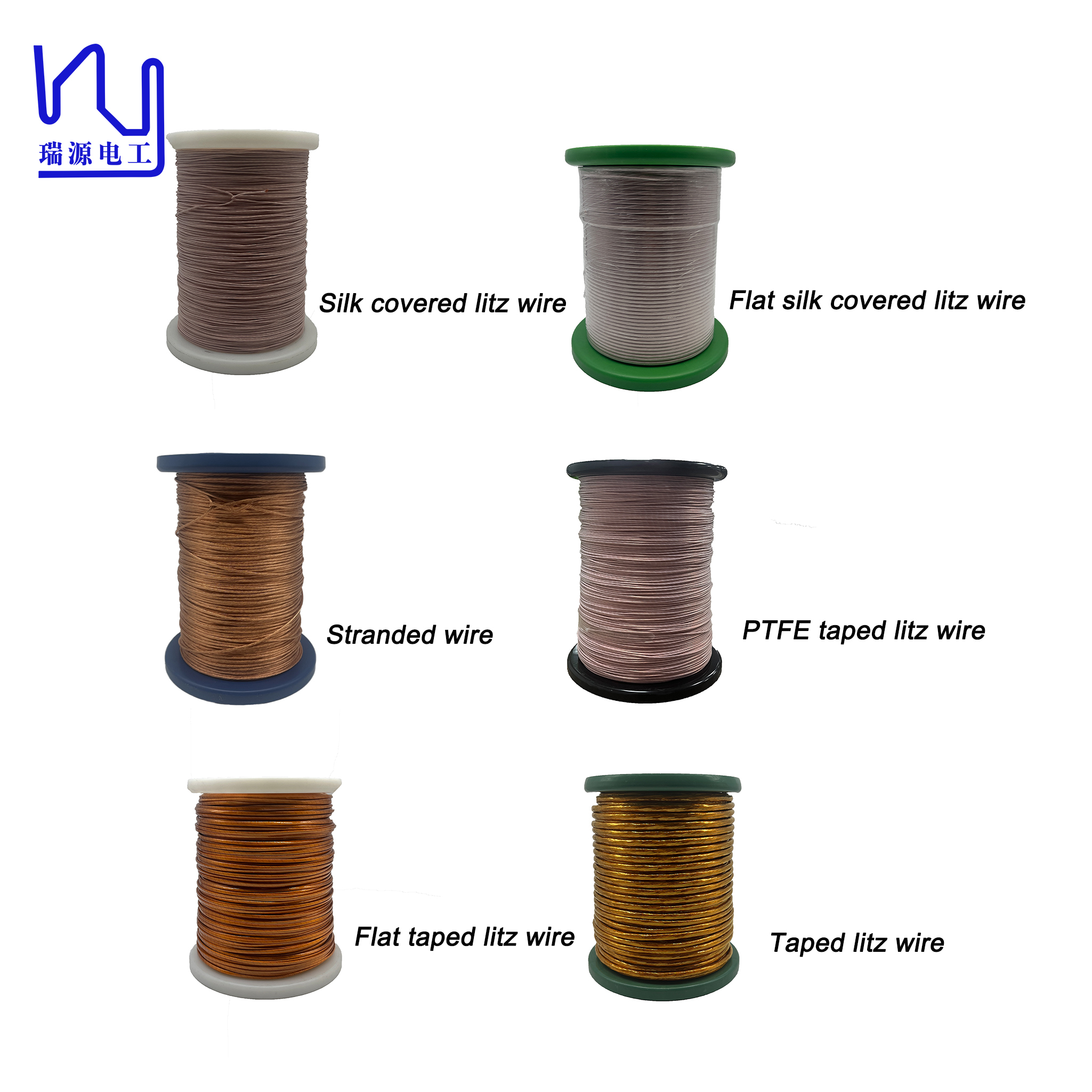

Ruiyuan was established in 2002. Over the past 20 years, we have been focused on one question: 'How to Satisfy Customers' - which drives us to expand our product lines from fine enameled copper wire to litz wire, USTC, rectangular enameled copper wire, triple insulated wire, and guitar pickup wire. We offer 6 main types with over 20 kinds of magnet wire.
Here you will enjoy One Stop Purchase Service with cost-effective pricing, and quality is the last thing you need to concern yourself with. We aim to help you reduce costs and save time, establishing long-term Win-Win cooperation.
For 20 years, we have pursued our operation philosophy: 'Customer Oriented, Innovation brings more Value' - this is not just a slogan, but part of our DNA. Unlike ordinary magnet wire providers who only offer specified size ranges, we are solution providers who need to be more professional about wires, insulation materials, and your applications.
