Home > Products> FIW Wire> 0.071mm-0.8mm FIW6 Class H Fully Insulated Winding Wire

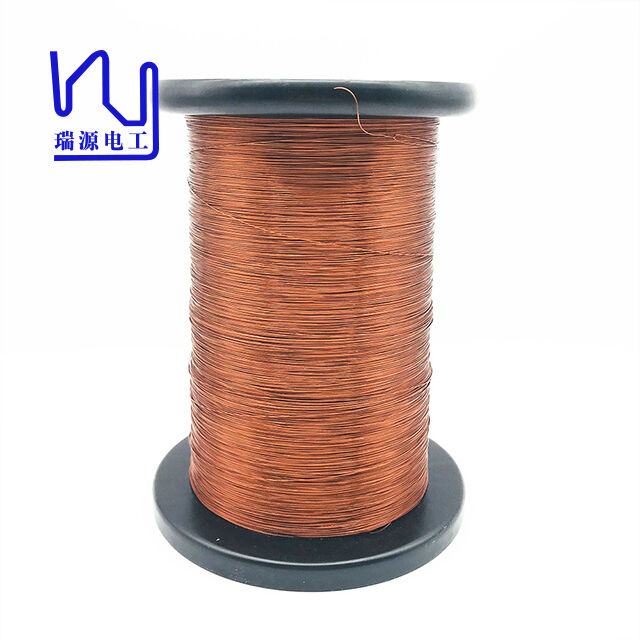

0.071mm-0.8mm FIW6 Class H Fully Insulated Winding Wire

0.071mm-0.8mm FIW6 Class H Fully Insulated Winding Wire

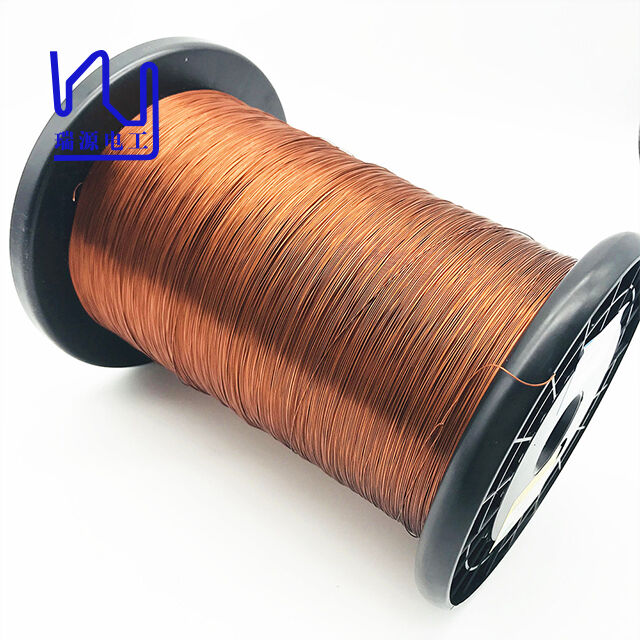

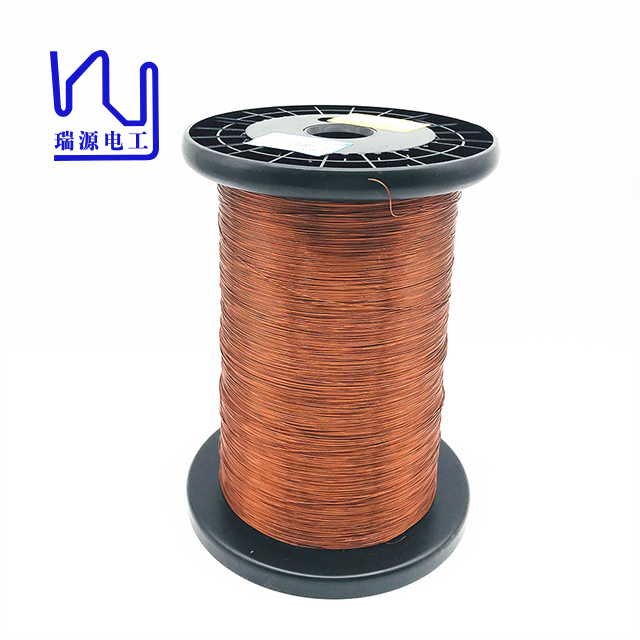

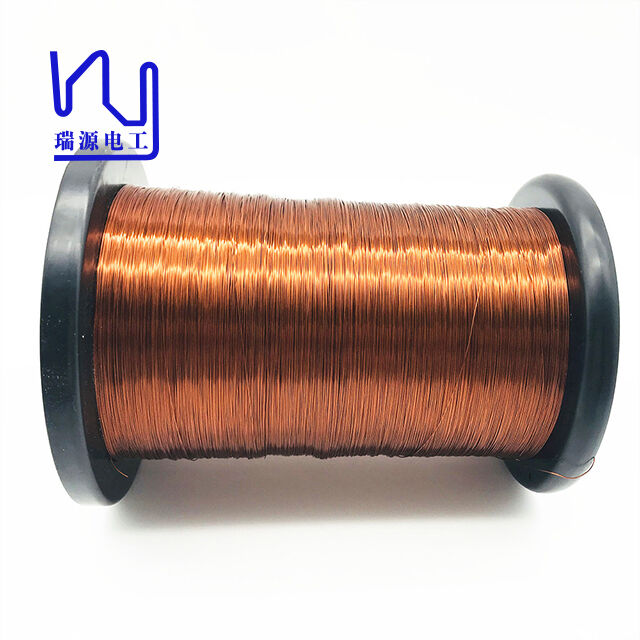

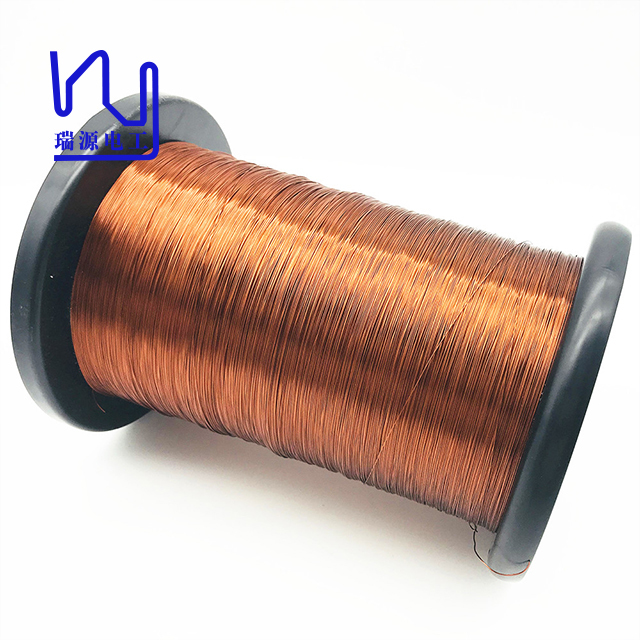

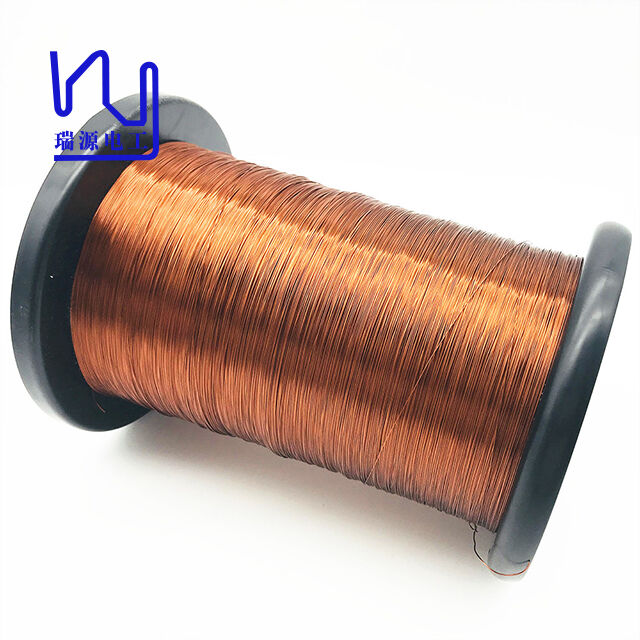

0.071mm-0.8mm FIW6 Class H Fully Insulated Winding Wire 0.071mm-0.8mm FIW6 Class H Fully Insulated Winding Wire 0.071mm-0.8mm FIW6 Class H Fully Insulated Winding Wire 0.071mm-0.8mm FIW6 Class H Fully Insulated Winding Wire 0.071mm-0.8mm FIW6 Class H Fully Insulated Winding Wire
Basic Information
Place of Origin: Tianjin, China
Brand Name: Rvyuan
Certification: ISO9001/ISO14001 /UL/SGS
Model Number: 0.10mm
Minimum Order Quantity: 20
Price: $29.99
Get Best Price Contact Now
Detail Information
Conductor Material: Copper Insulation Material: Enameled
Application: Small Motors/small Transformer/winding Coil Conductor Type: Solid
Type: Insulated Product Name: Fully Insulated Wire
Standard: IEC/JIS/NEMA Thermal Class: 180 (Class H)
Solderability: Yes Packing: Carton
Delivery Time: 7-30 Days MOQ: 10kg
Payment: Paypal\TT\Western Union\ Trade Assurance Sample: Available
Highlight:

FIW6 Class H insulated winding wire

,

0.071mm-0.8mm FIW winding wire

,

fully insulated FIW6 wire

Product Description

FIW6 Class H Fully Insulated Winding Wire
Diameter Range: 0.071mm - 0.8mm
Technical Specifications
Parameter Value
Conductor Diameter 0.10mm
FIW4 Max. O.D 0.133-0.148mm
Breakdown Voltage at 20℃ min. 2673V
Product Overview
Fully insulated (FIW) zero-defect enamelled round copper wire features high thermal class, zero-defect strengthened insulation, and high voltage resistance compliant with IEC60317-56 / IEC60950U and NEMA MW85-C standards. This wire meets requirements for miniaturized components, offers excellent winding performance, and provides cost-effective solutions for small transformers and electronic switches.
UL Approvals
  • OBMW2, according to UL 1446, ANSI MW 85-C
  • OBJT2, Thermal class F, Reinforced insulation, according to UL60950-1
  • FIW3-FIW9, φ0.04mm to φ1.60mm
Click the "chat now" on the web page to contact us and get your bespoke wire!
FIW6 Class H Fully Insulated Winding Wire product close-up FIW6 wire technical specifications and applications FIW6 wire manufacturing process FIW6 wire quality testing
Why Choose FIW Wire?
  • High thermal class 180
  • High breakdown voltage, up to 15KV
  • High insulation resistance, up to 6000Vrms, 1min
  • Solderable at 390℃ (no need to peel insulation)
  • High cut-through temperature, 250℃, 2s no cut through
  • Air Reflow (peak temperature 260℃), no crack
  • Color options: natural (N)/red(R)/green(G)/blue(B)/violet(V)/brown(BR)/Yellow(Y)
  • Excellent winding performance, suitable for high-speed winding machines
  • Minimum diameter range: φ0.03-φ0.80mm
Why Choose Our Company?
One of the pioneers in producing micro thin enameled wires below 0.03mm in China
R&D team with over 20 years of market experience
"Zero pinholes after stretching" quality standard maintained for ten years
Finest diameter of 0.011mm with mass production capability
Leading Chinese brand in transformer industry
Competitive with international brands in production and technology
30% lower pricing advantage with superior service and quick response
Trusted by well-known customers including Philips, Bosch, Panasonic, Samsung
Packaging
FIW6 wire packaging and spool presentation
Our Workshop
Manufacturing workshop and production facilities Wire production equipment and machinery Quality control and testing area
About Us
Company overview and manufacturing capabilities
Certifications
Quality management system certification UL certification for wire products International standards compliance certification Industry-specific quality certifications
Our Customers
Global customer portfolio including major electronics brands
Frequently Asked Questions
Can I get sample for testing before bulk order?
Of course. Samples can be offered to you for free, but express costs should be undertaken by buyer.
What is your lead time?
Small sample order: 3-5 working days; Large order: within 15 working days after order confirmation.
What's your Guarantee?
Within 2 years, if any quality problem occurs, the defect products will be all replaced at once.
How to purchase from us?
Offer Requirement for Inquiry → Producing Sample → Sample Confirmation → Quotation → PI → Confirm PI → Arrange Payment → Manufacture → Shipping
What's your payment term?
T/T, D/P, D/A, L/C, PayPal.
