Detail Information

Conductor Material:	Copper	Diameter:	8.7x5.5mm
Insulation Material:	Enameled	Rated Voltage:	Dielectric Strength Min. 3500V
Application:	HF Transformers, HF In-/converters, HF Transceivers, Audio..	Conductor Type:	Stranded
IP Level:	/	Shape:	Flat
Single Wire Size:	38AWG 0.10mm	Working Temperature:	180℃
Type:	Insulated	Product Name:	PI Taped Profiled Litz Wire
Wrapping Material:	Kapton	MOQ:	10kg
Standard:	JISC3202	Breakdown Voltage:	Min. 3500V
O.D:	Width 8.57-8.71mm; Thickness 5.46-5.70mm	Package:	Carton/wooden Pallet/as Specified
Delivery Time:	7-15 Days	Payment:	Paypal\TT\Western Union\ Trade Assurance
Highlight:	profiled polyimide taped litz wire , copper stranded litz wire , high filling factor litz wire

Product Description

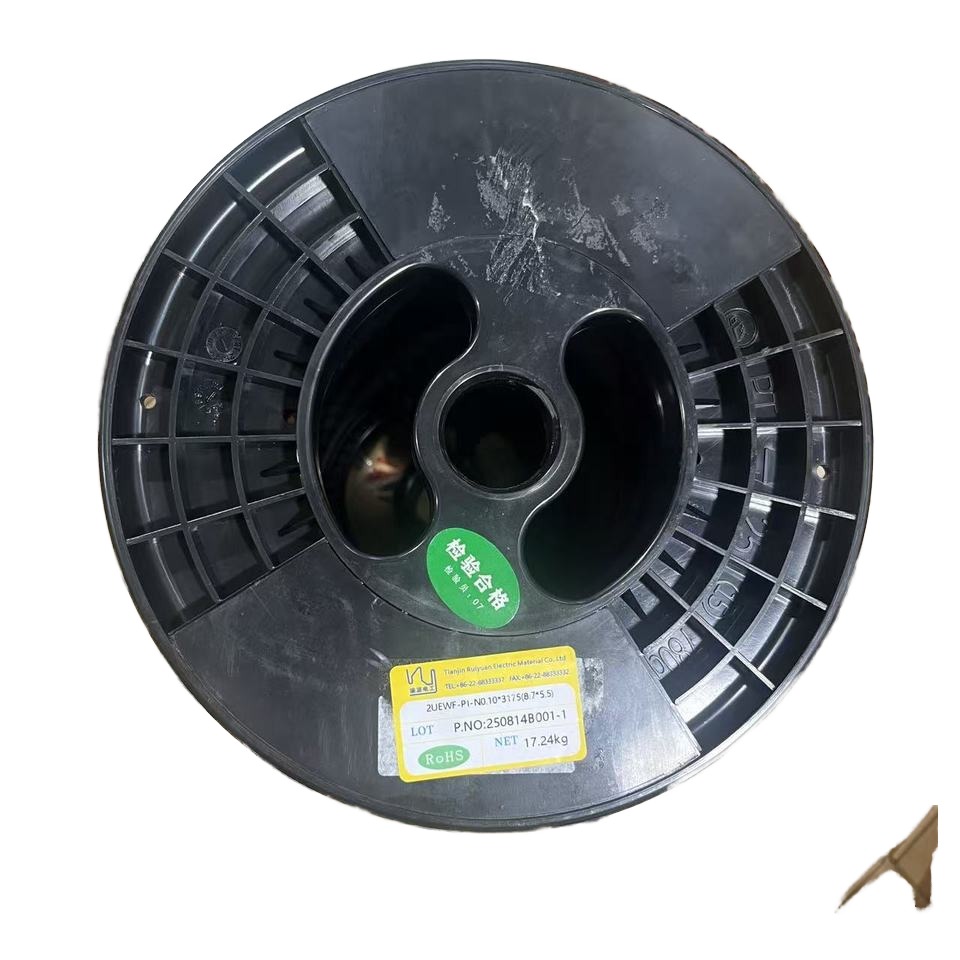

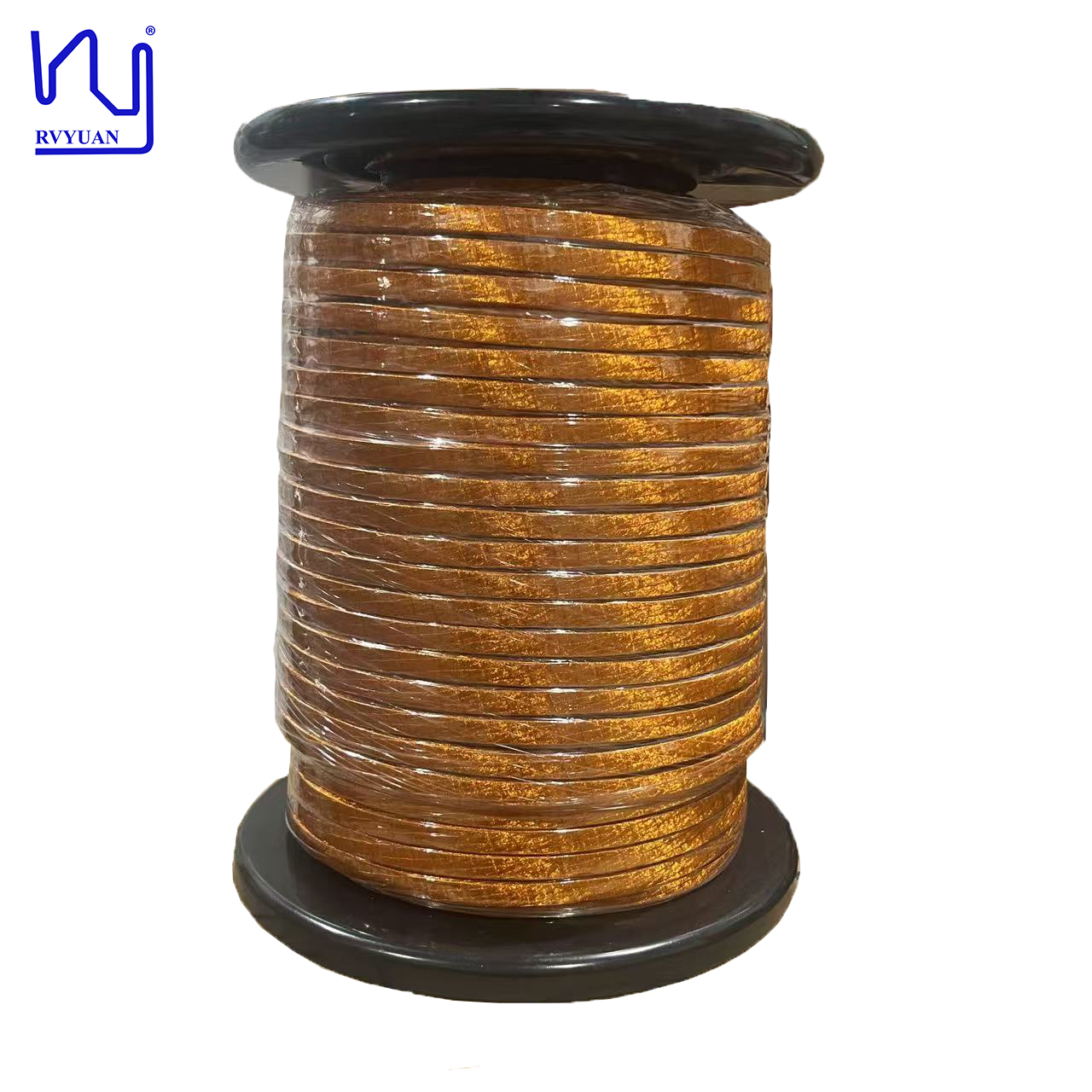

0.10x3175(8.7x5.5mm) Profiled Polyimide Taped Copper Stranded Litz Wire

Ruiyuan Group, founded in 2002 in Tianjin, China, specializes in high-quality magnet wire manufacturing. We provide comprehensive services including R&D, manufacturing, sales, and after-sales support. Our product range includes ultra fine enameled copper wire, litz wire, served litz wire, TIW wire, and FIW wire, all certified to UL, RoHS, and ISO standards.

Why Choose Ruiyuan Group?

Professional Solutions Provider – Engineering and sales team with over 23 years of experience
High-Quality & Reliable – Magnet wires certified to UL, ROHS, IATF16949, REACH standards

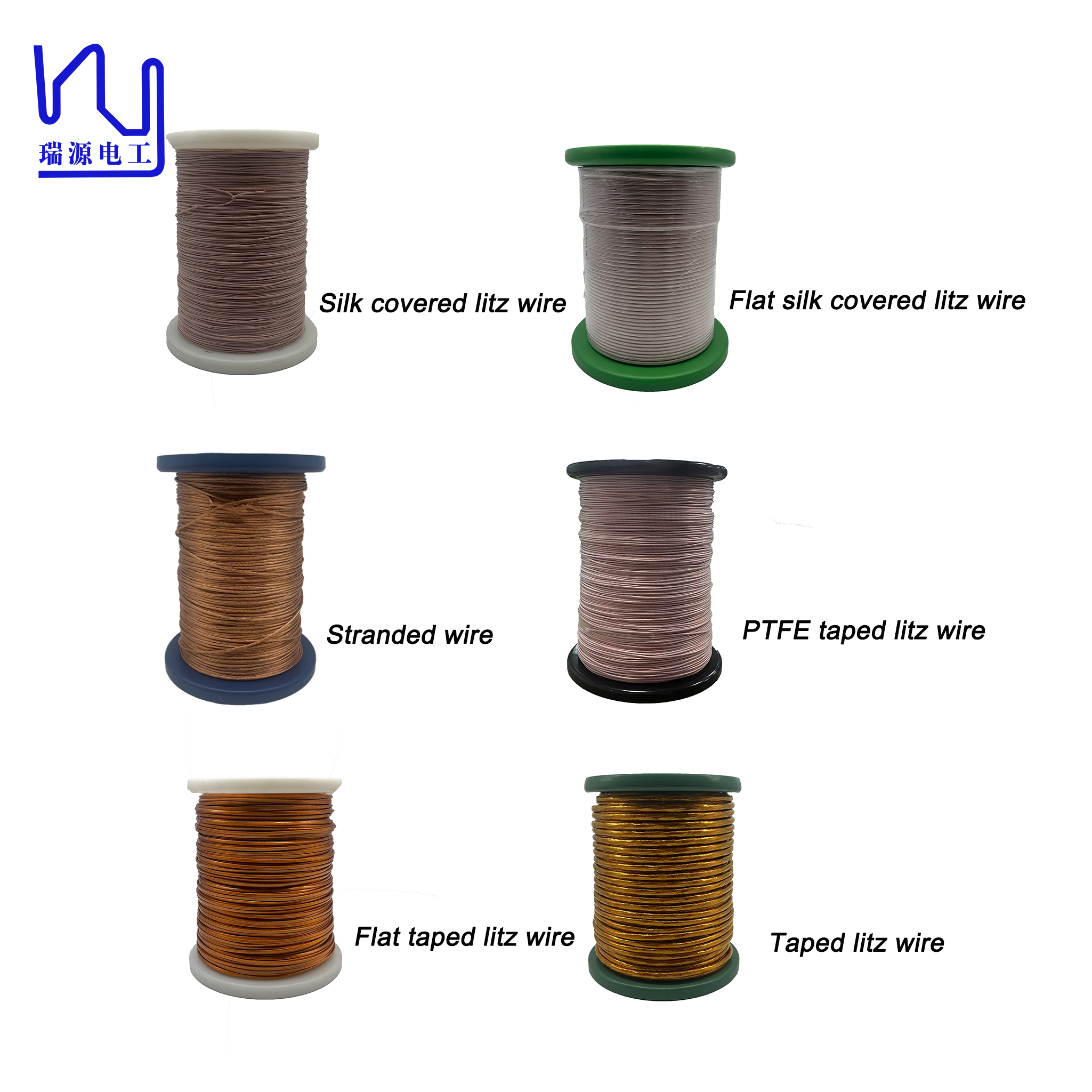

Various Litz Wire Types – Basic litz wire, served litz wire with nylon/polyester yarns, natural silk, taped litz wire with PET/PI/PTFE tape, extruded litz wire with triple insulation, profiled litz wire with textile yarns and tapes

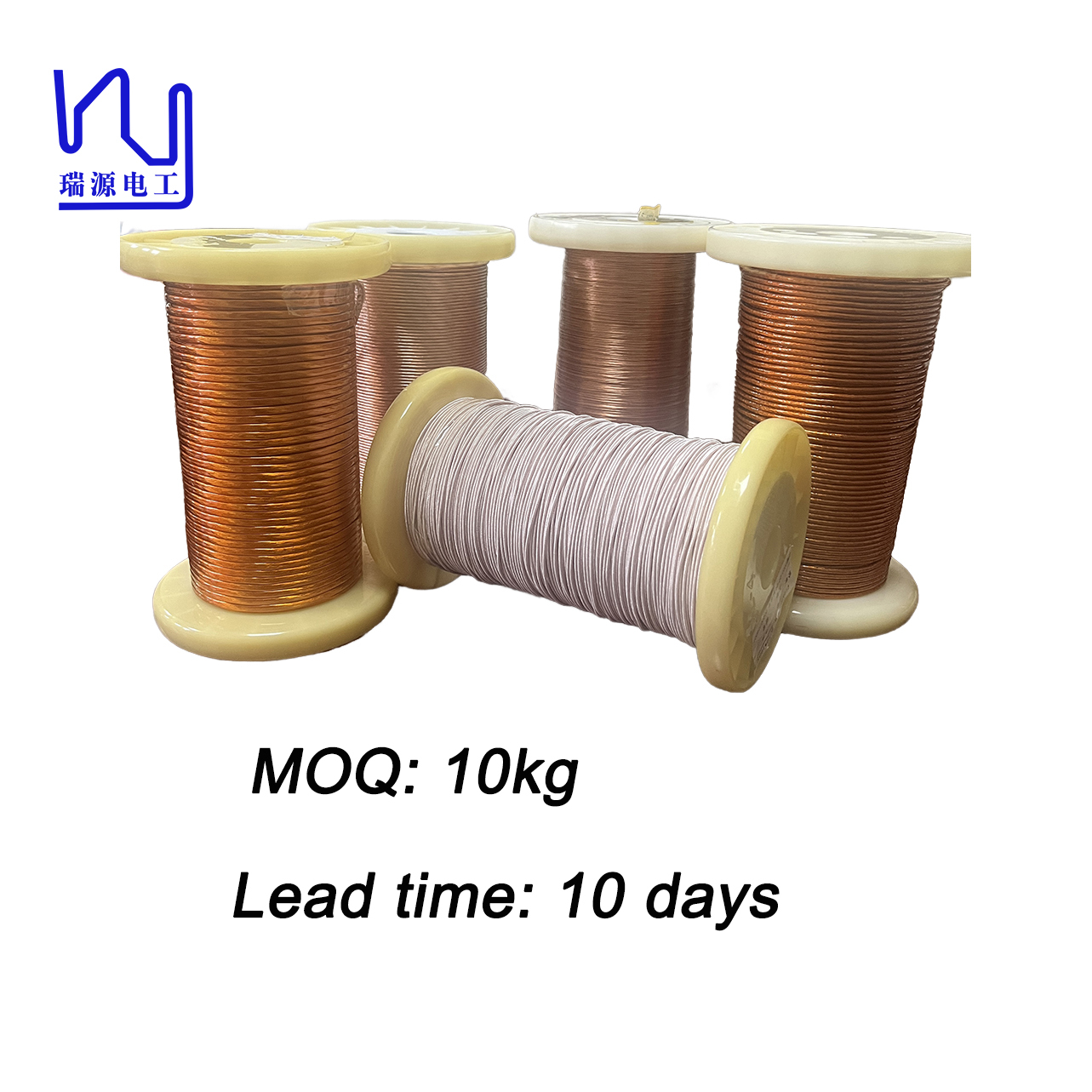

Sample Manufacturing – 5-10kg samples for prototyping and R&D

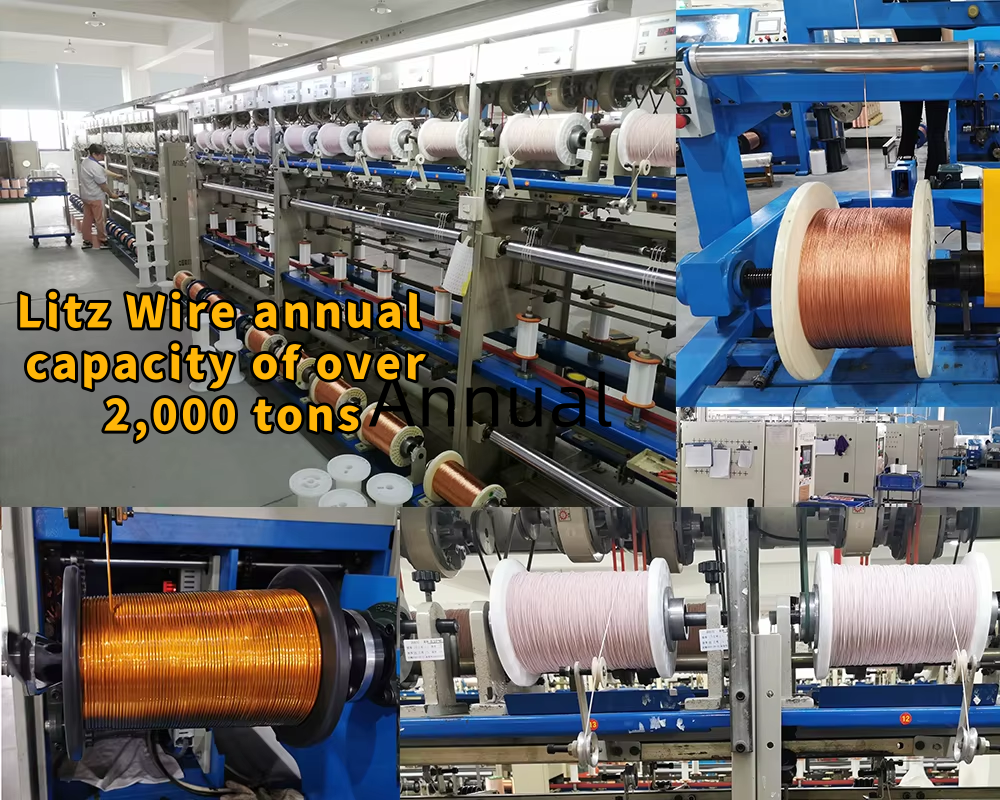

Annual Capacity – Over 3,000 tons to ensure timely delivery for bulk orders
Quality Guarantee – 2-year warranty on all products

Product Advantages

Increased filling factor of up to 20%
Constant winding performance with tight dimensional tolerance and excellent flexibility
Profiled dimensions customized to customer specifications
Profiling available with outer insulation

Technical Specifications

Product Name	0.10x3175(8.7x5.5mm) Profiled Polyimide Taped Copper Stranded Litz Wire With Higher Filling Factor
Max. O.D.	Width 8.57-8.71mm; Thickness 5.46-5.70mm
Resistance (at 20℃ Ω/M)	0.0006777
Breakdown Voltage	Minimum 3500V
Standard	JISC3202 and internal standard
Serving Material	Kapton tape

Applications

EV (Electric Vehicles)
OBC (Onboard charger)
DC/DC converter
Wireless charging
Charging piles
SMPS (Switch Mode Power Supplies)
HF transformers
HF transducers
HF chokes

Certifications

Packing & Shipping

Cartons, wooden pallet packaging or as specified by customer requirements.

Frequently Asked Questions

Can I get samples for testing before bulk order?

Yes, samples are available free of charge, though express shipping costs are the responsibility of the buyer.

What is your lead time?

Small sample orders: 3-5 working days; Large orders: within 15 working days after order confirmation.

What's your trade term?

EXW, CPT, FOB, CIF, DDU, DDP are all acceptable.

What's your payment term?

T/T, D/P, D/A, L/C, PayPal.

What's your express service?

FedEx, DHL, TNT, UPS with significant discounts up to 80%.

Please send inquiries directly for more information about our services!
