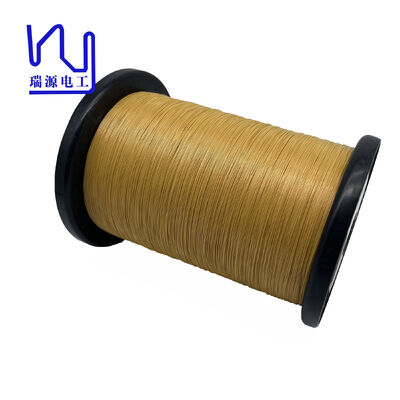

Custom 0.05mm*260 ETFE Coated Triple Insulated Litz Wire for Inductor

Basic Information
Place of Origin: Tianjin, China
Brand Name: Rvyuan
Model Number: custom
Minimum Order Quantity: 1000
Detail Information
Conductor Material: Copper Diameter: CUSTOM
Insulation Material: ETFE Rated Voltage: 180
Application: High Voltage Transformer/high Frequency Inductors Conductor Type: Solid
Single Wire Size: 0.05 Type: Insulated
Product Name: 0.05mm*260 ETFE Coated Teflon Triple Insulated Litz Wire Example: 0.05mm*260
Breakdown Voltage: 6000V Thermal Class: 180
Certificate: UL/SGS Insulation: FTIW
Outer Diameter: Max 1.35 Strands: Custom
Conductor Diameter: 0.05MM Overlap Rate: 50%
Highlight:

ETFE coated triple insulated wire

,

0.05mm Litz wire for inductor

,

260mm triple insulated Litz wire


Product Description

Custom 0.05mm*260 ETFE Coated Triple Insulated Litz Wire for Inductor
Product Specifications
Single wire diameter (mm)0.05
No. of strands260
Cover materialFTIW
Key Performance Advantages
  • Reduced Skin Effect: Litz wire construction minimizes skin effect at high frequencies, enabling more efficient current distribution across the wire for superior RF application performance.
  • Lower Losses: The combination of litz construction and specialized insulation results in reduced resistive losses compared to solid or standard insulated wires, ideal for high-efficiency applications.

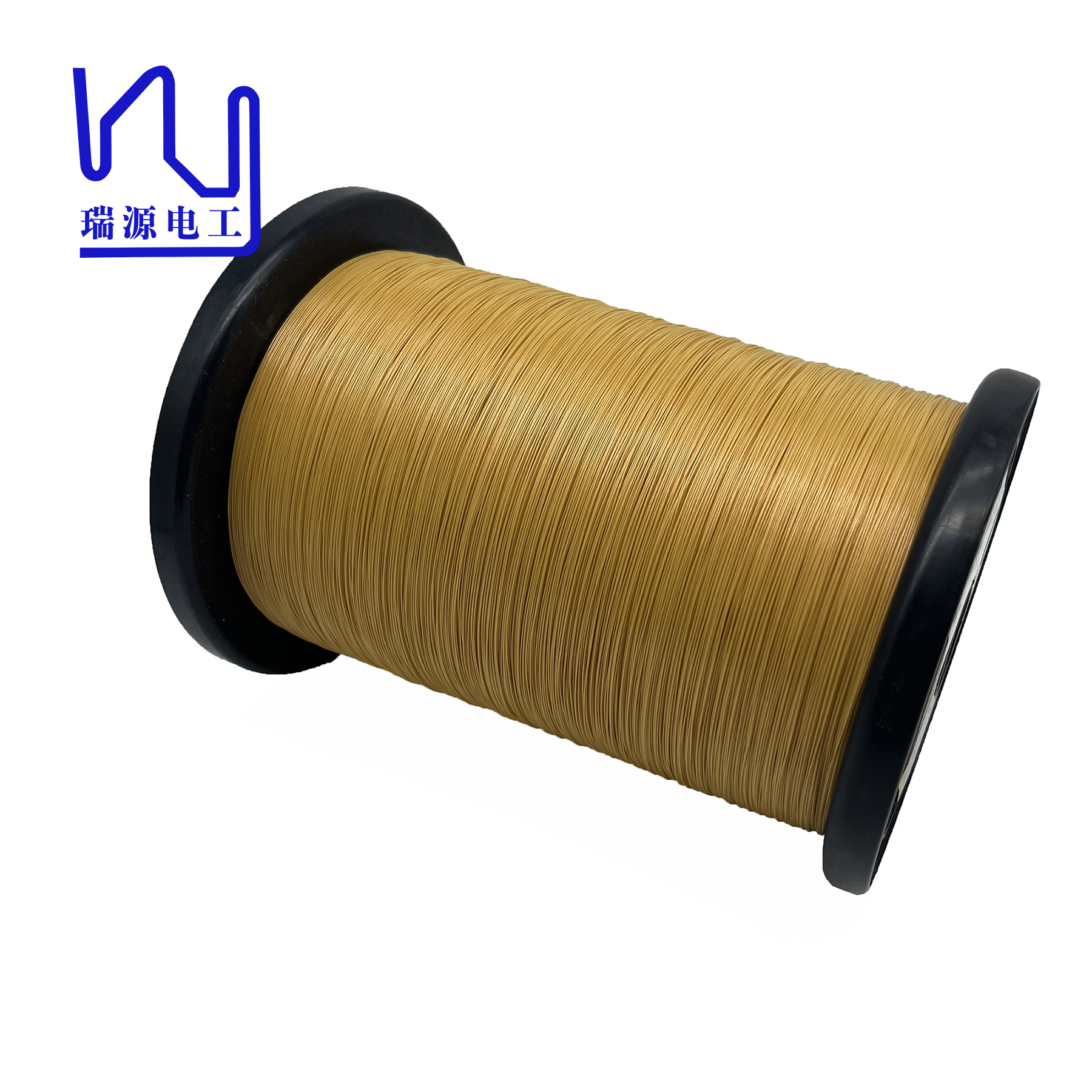

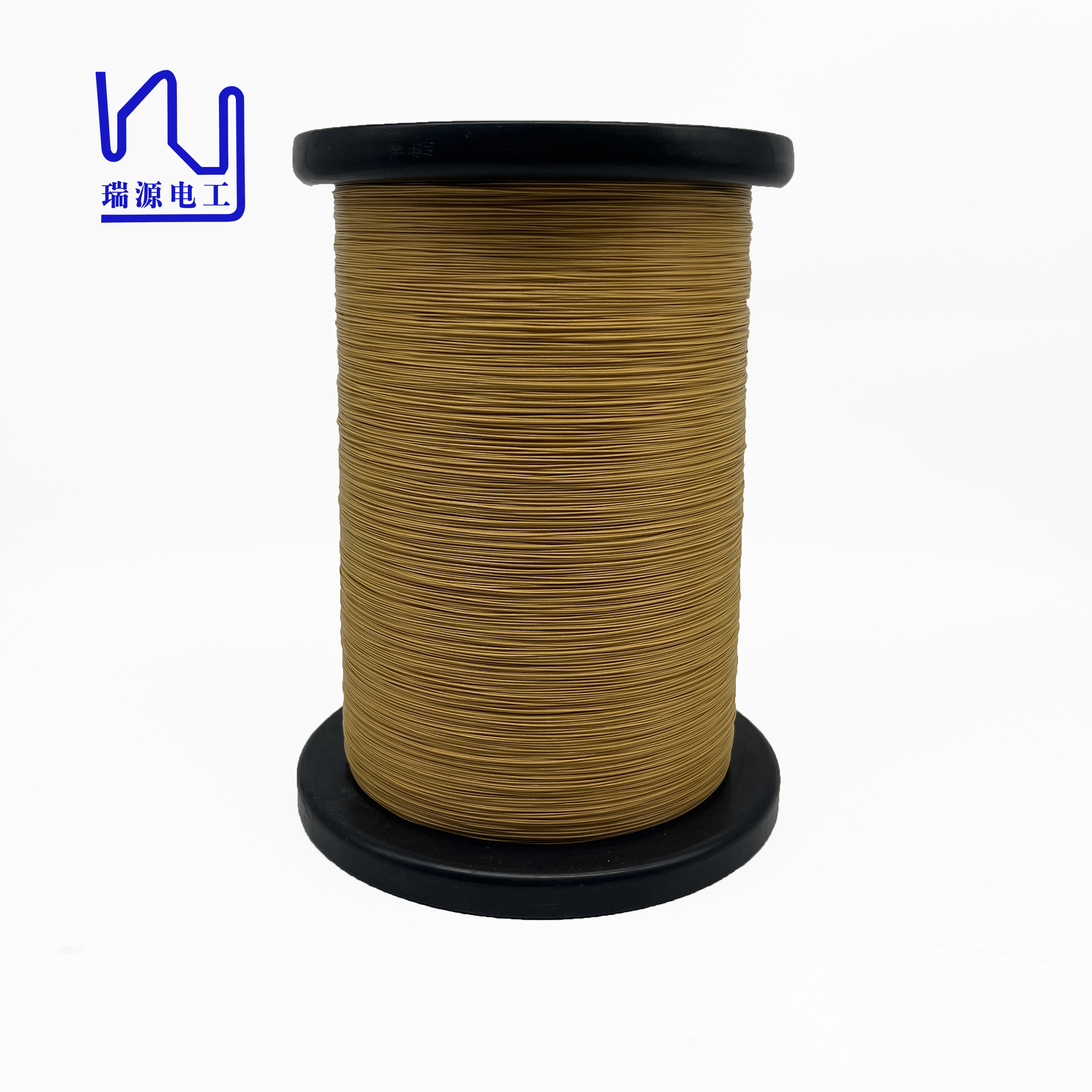

ETFE Coated Litz Wire close-up view Litz Wire cross-section and construction details
Quality Control Test Results
ItemStandardTest valueResult
Conductor outer diameter (mm)0.051-0.0580.052ok
Conductor diameter (mm)0.050±0.0030.050ok
Overall diameter (mm)Max 1.351.30ok
Resistance (Ω/Km at 20℃)Max. 40.634.82ok
Breakdown voltage (V)600013000ok
Applications
Litz Wire applications in transformers and inductors
Manufacturing Process

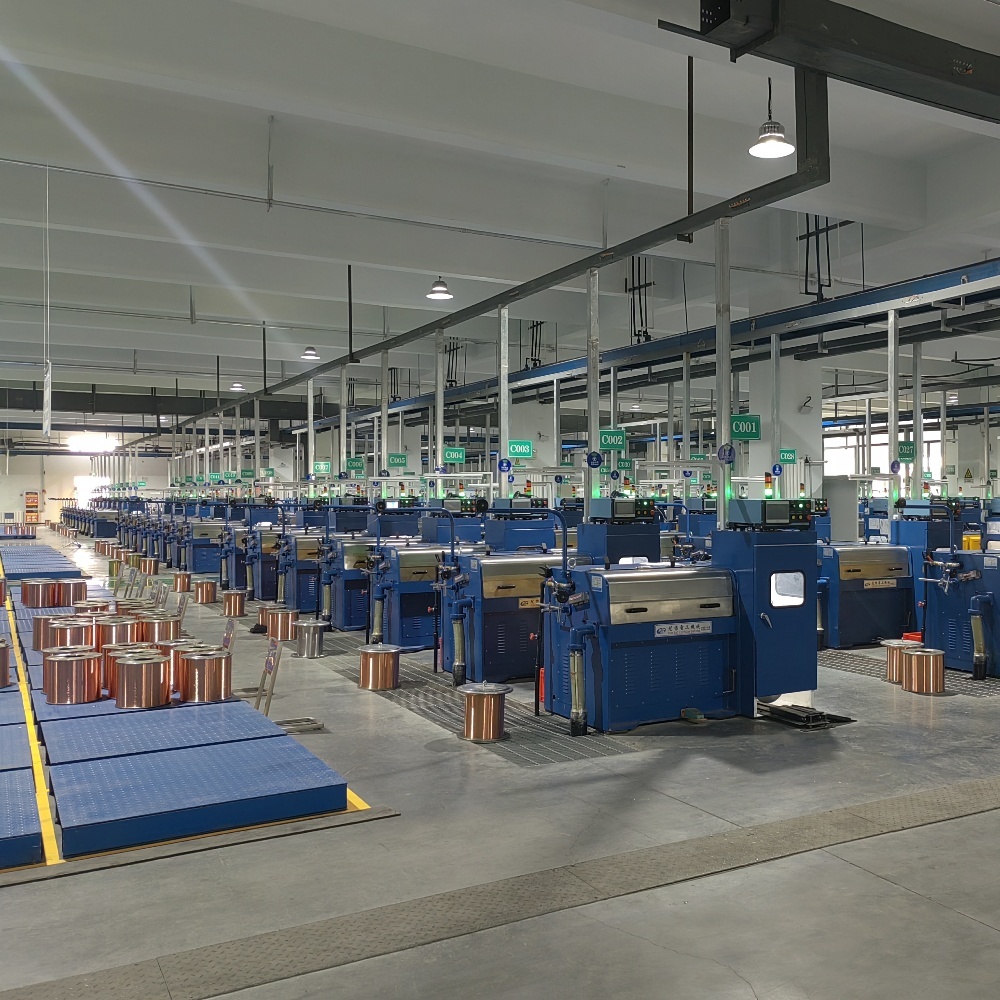

Ruiyuan manufacturing workshop overview

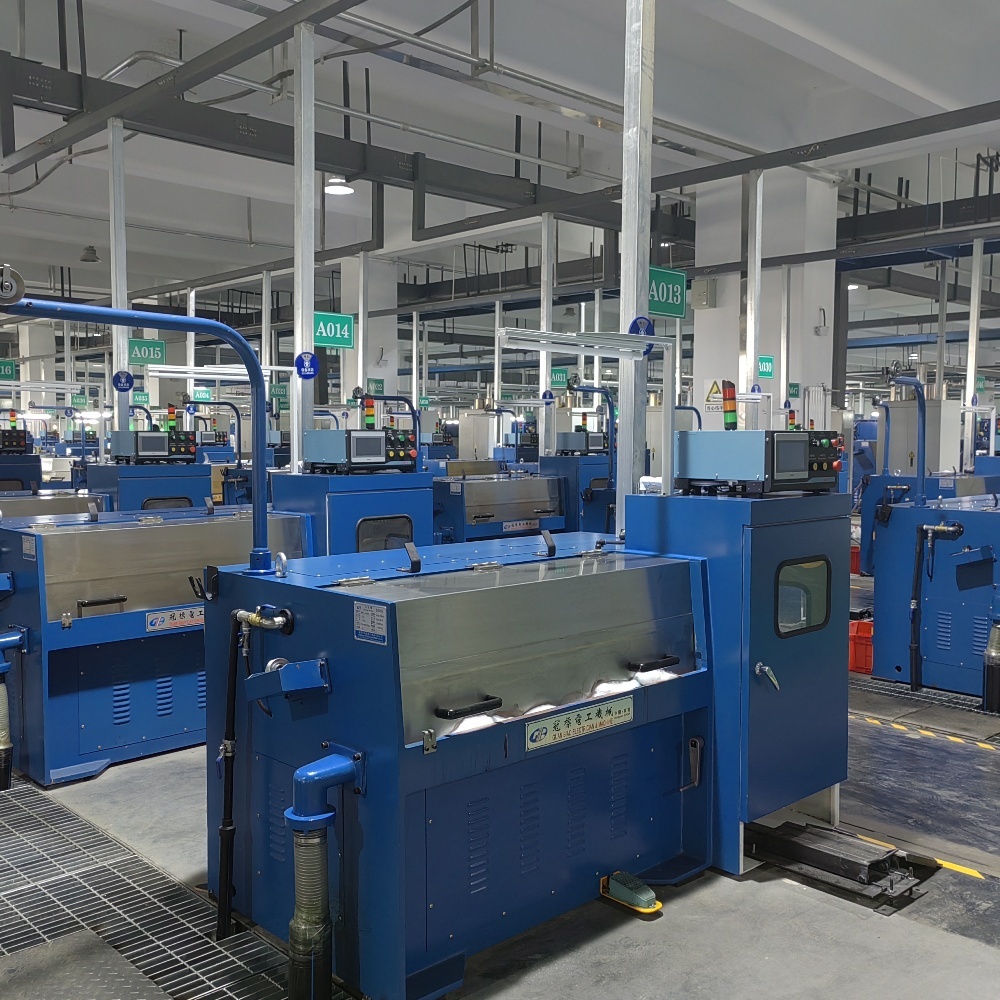

Single Wire Drawing
Precision single wire drawing process
Enameling
Wire enameling coating application
Multi-Strand Litz Construction
Multi-stranded wire formation into litz wire
PET/PI Film Wrapping
Litz wire wrapped in protective PET/PI film
Flat Taping Process
Flat taped litz wire production through molding
Packaging
The litz wire is packed in air bags and cartons for optimal protection during shipping.
Quality Testing Equipment
DC Resistance Tester
Precision DC resistance testing equipment
Laser Diameter Measuring Instrument
Laser-based diameter measurement system
Voltage Resistance Testing
High-voltage breakdown testing equipment
About RUIYUAN
Established in 2002, Ruiyuan has dedicated over 20 years to answering one fundamental question: 'How to Satisfy Customers?' This commitment has driven our expansion from fine enameled copper wire to comprehensive product lines including litz wire, USTC, rectangular enameled copper wire, triple insulated wire, and guitar pickup wire - totaling 6 main types with over 20 varieties of magnet wire.
We provide One Stop Purchase Service with cost-effective pricing, ensuring quality is never a concern. Our mission is to help reduce your costs, save your time, and establish long-term Win-Win cooperation.
For two decades, we've pursued our operational philosophy: 'Customer Oriented, Innovation brings more Value.' This isn't just a slogan - it's embedded in our DNA. Unlike ordinary magnet wire providers who offer only specified size ranges, we are solution providers who bring professional expertise in wires, insulation materials, and your specific applications.
Ruiyuan company facility and operations
Frequently Asked Questions
Can I get samples for testing before bulk order?
Yes, samples are available free of charge, though express shipping costs are the responsibility of the buyer.
What is your lead time?
Small sample orders: 3-5 working days; Large orders: within 15 working days after order confirmation.
What are your trade terms?
We accept EXW, CPT, FOB, CIF, DDU, and DDP terms.
What are your payment terms?
We accept T/T, D/P, D/A, L/C, and PayPal.
What express services do you use?
We work with FedEx, DHL, TNT, and UPS, offering significant discounts up to 80%.
