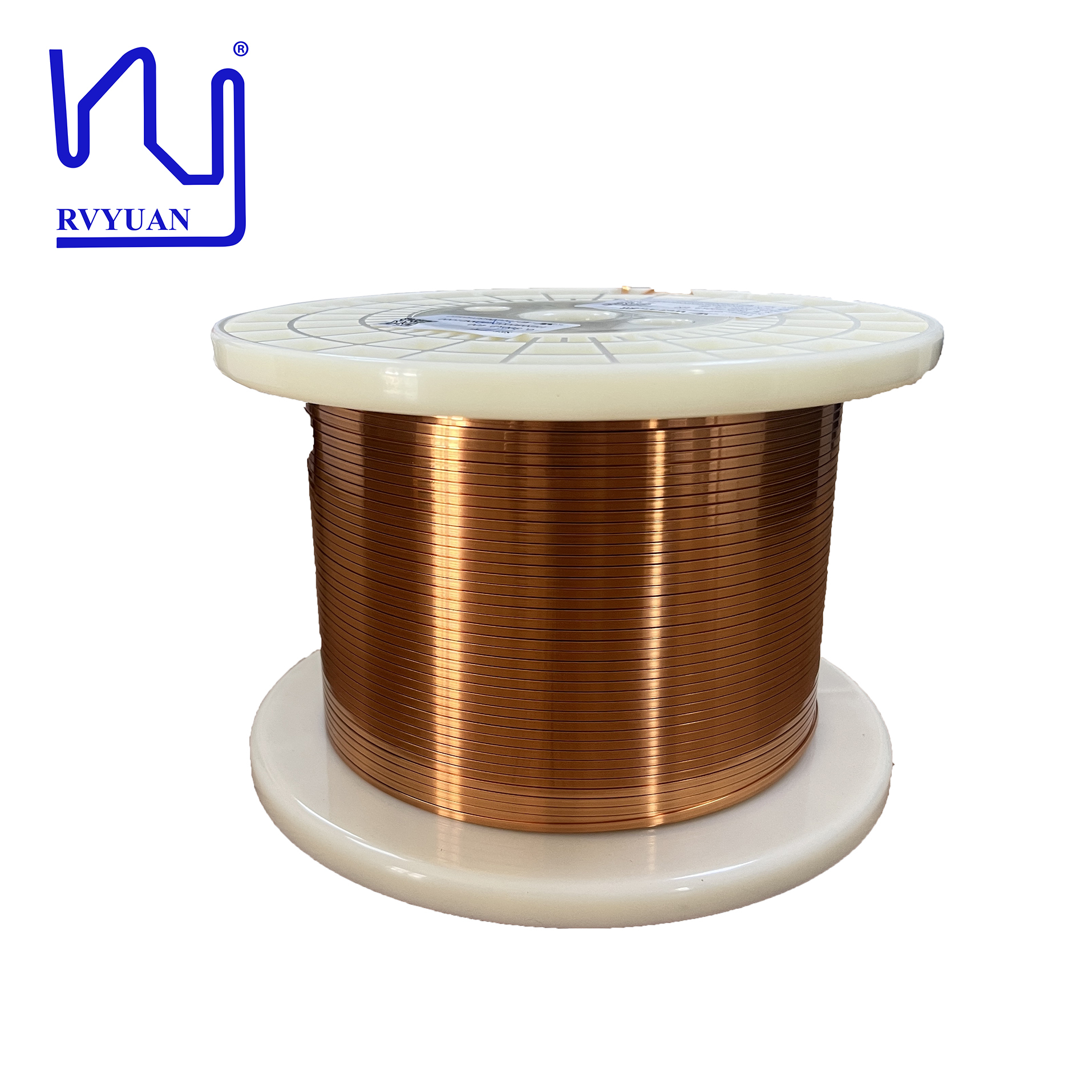

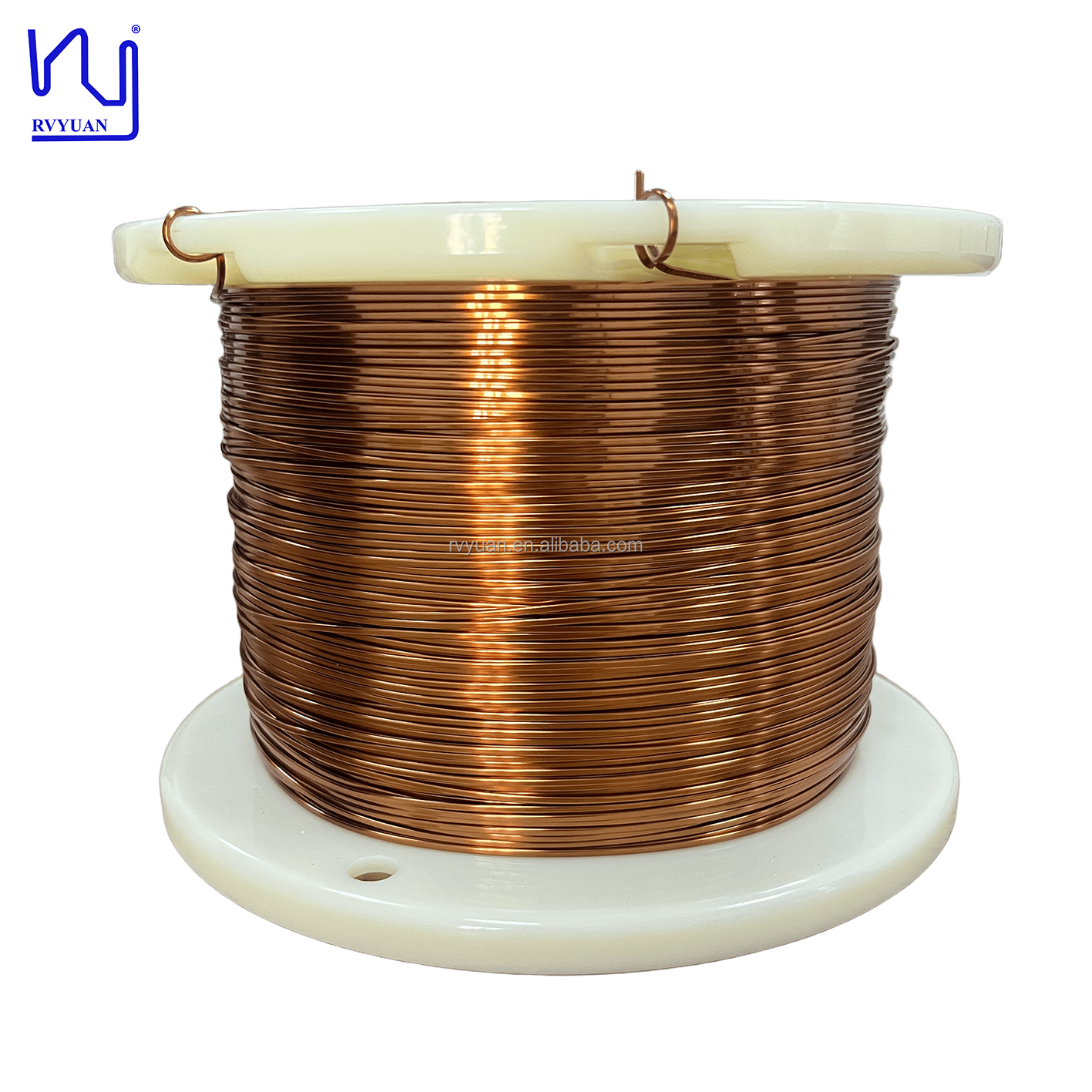

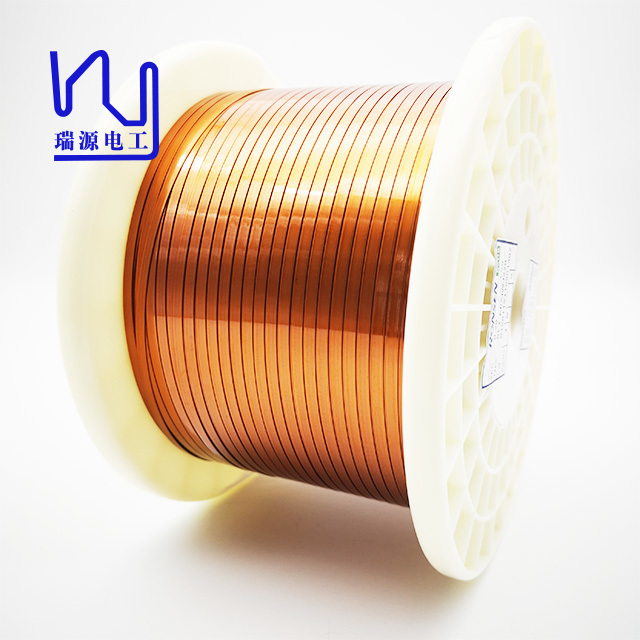

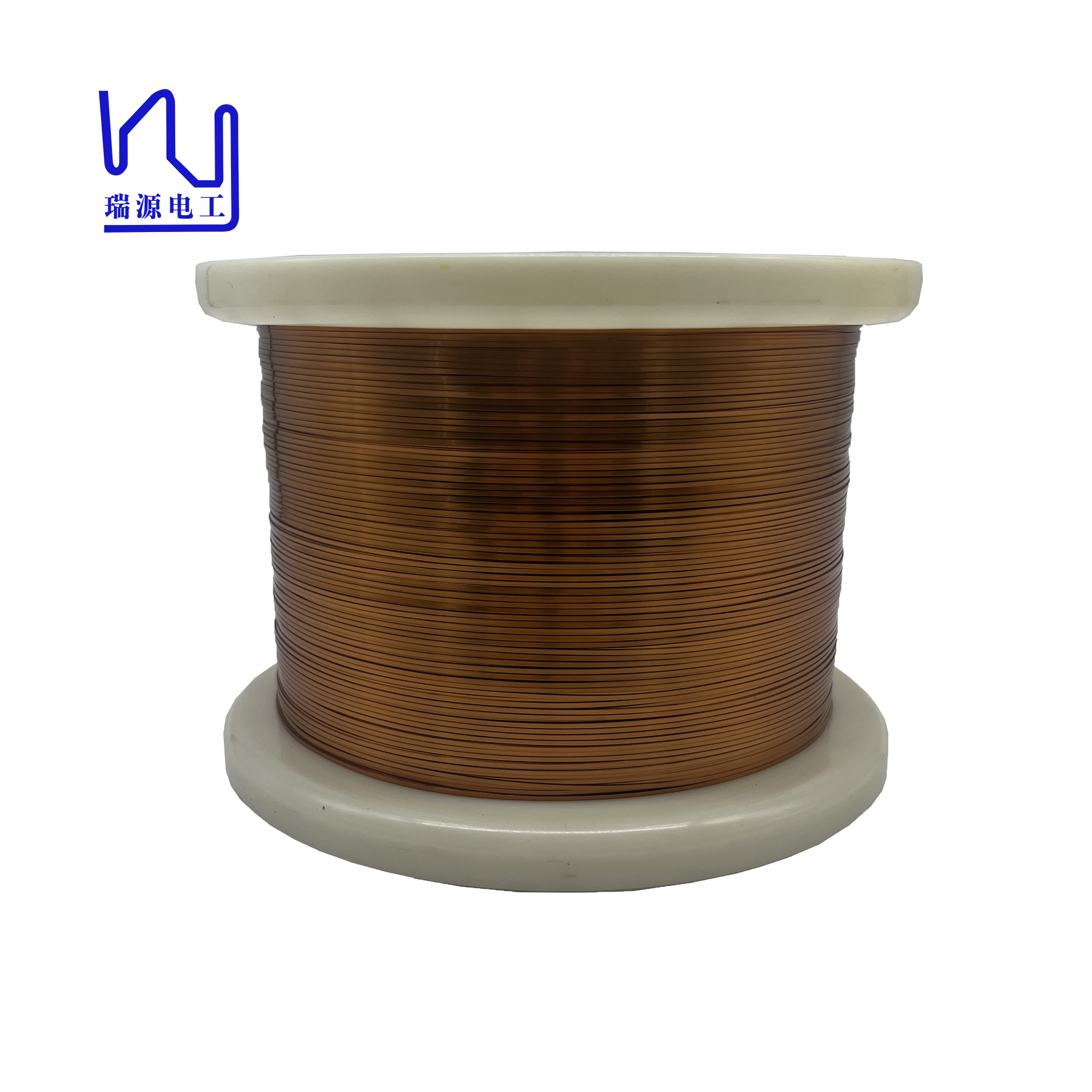

Enamel Coated Copper Flat Magnet Wire
0.04 - 1.8mm Super Flat / Rectangular Magnet Wire Insulated Solid - Compliant with IEC, GB, NEMA Standards
Product Overview
Flat rectangular magnet wire with enamel insulation for electrical applications
Specifications
Wire Type: Flat Wire
Insulation: AIW/EIW/UEW
Thermal Class: 155-220℃
Conductor Color: Red/Blue/Green
Conductor Material: Flat Copper
Width Range: 0.155-7.5mm
Key Features & Benefits
- High conductivity for efficient electrical performance
- Excellent shock resistance for durable operation
- Superior durability and long service life
- High mechanical strength
- Rust resistant construction
- Low maintenance requirements
- Cost-effective solution
Product Specifications Table
| Product |
Class |
Solderable |
Self Bonding |
Width (mm) |
Thickness (mm) |
Width-Thickness Ratio |
| AIWJ | 220℃ | x | x | 0.155-7.5 | 0.02-1.8 | 1.25 |
| EI/AIWJ | 220℃ | x | x | 0.155-7.5 | 0.02-1.8 | 1.25 |
| EI/AIWJ | 200℃ | x | x | 0.155-7.5 | 0.02-1.8 | 1.25 |
| UEWJ | 180℃ | 0 | x | 0.155-7.5 | 0.02-1.8 | 1.25 |
| EIWJ | 180℃ | x | x | 0.155-7.5 | 0.02-1.8 | 1.25 |
| SEIWJ | 180℃ | 0 | x | 0.155-7.5 | 0.02-1.8 | 1.25 |
| UEWJ | 155℃ | 0 | x | 0.155-7.5 | 0.02-1.8 | 1.25 |
| UEWJ | 130℃ | 0 | x | 0.155-7.5 | 0.02-1.8 | 1.25 |
| EI/SBWJ | 180℃ | x | 0 | 0.155-7.5 | 0.02-1.8 | 1.25 |
| SEI/SBWJ | 180℃ | 0 | 0 | 0.155-7.5 | 0.02-1.8 | 1.25 |
| EI/AI/SBWJ | 220℃ | x | 0 | 0.155-7.5 | 0.02-1.8 | 1.25 |
| AI/SBWJ | 220℃ | x | 0 | 0.155-7.5 | 0.02-1.8 | 1.25 |
| UE/SBWJ | 180℃ | 0 | 0 | 0.155-7.5 | 0.02-1.8 | 1.25 |
| UE/SBWJ | 155℃ | 0 | 0 | 0.155-7.5 | 0.02-1.8 | 1.25 |
| UE/SBWJ | 130℃ | 0 | 0 | 0.155-7.5 | 0.02-1.8 | 1.25 |
Quality Certifications
Manufacturing Process
1. Enamel Inspection
2. Middle Wire Drawing
3. Production
4. Annealing
5. Enamel Coating
6. Hanging Process
Company Profile
RUIYUAN WIRE
Established in 2002, Ruiyuan has specialized in high-quality wires for over 19 years. Our product range includes enameled round copper wire, rectangular enameled copper triple insulated wire, silk covered Litz wire, bonding wire, and special enameled wire.
All products are UL and RoHS certified, complying with industry standards IEC60317, JIS C 3202, NEMA, and NW82.
With a heritage of innovation and advancements in enameled wire technology, our company has grown through an unwavering commitment to integrity, service, and customer responsiveness. We look forward to being your most trusted partner.
Frequently Asked Questions
Can I get a sample for testing before bulk order?
Yes, samples can be provided free of charge, but express shipping costs are the responsibility of the buyer.
What is your lead time?
Small sample orders: 3-5 working days; Large orders: within 15 working days after order confirmation.
What are your trade terms?
EXW, CPT, FOB, CIF, DDU, DDP are all acceptable.
What are your payment terms?
T/T, D/P, D/A, L/C, PayPal.
What express services do you use?
FedEx, DHL, TNT, UPS with significant discounts up to 80%.
