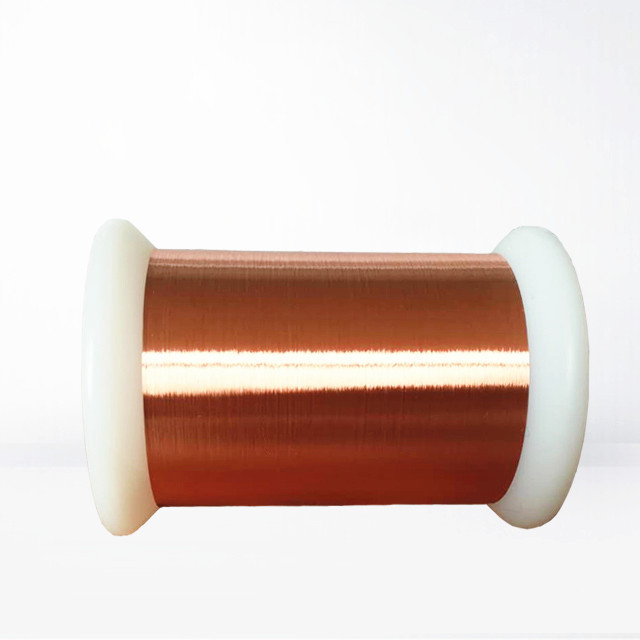

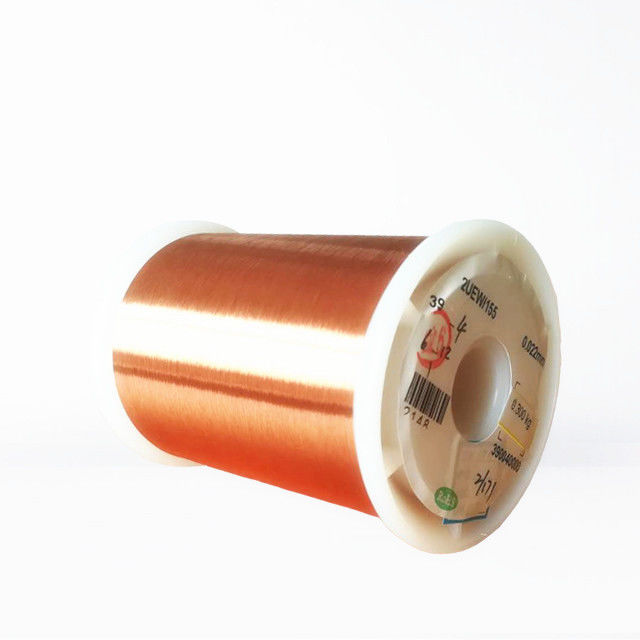

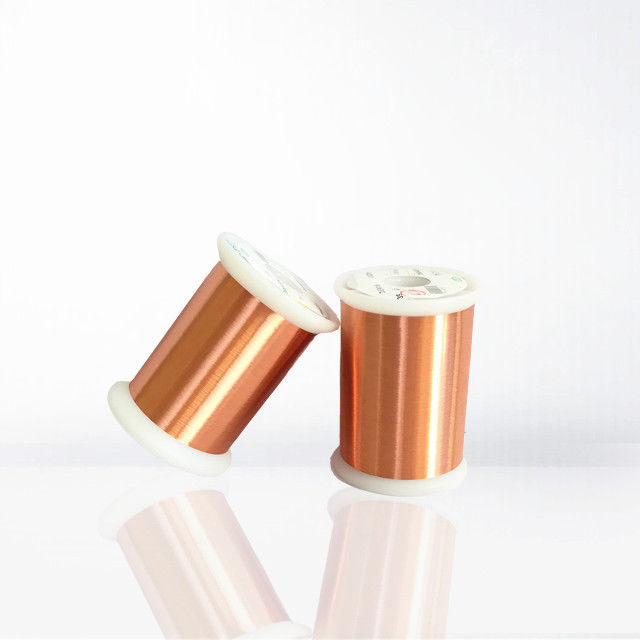

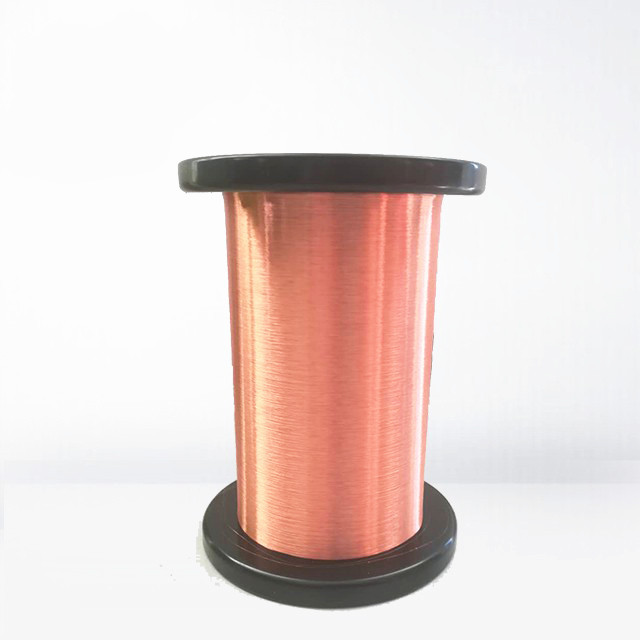

Insulated Ultra Thin Copper Wire Solderability For High Frequency Coils

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001/UL/SGS
Model Number:	0.012MM

Minimum Order Quantity:	1roll (30g -150g)
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation, T/T, L/C
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Standard:	IEC,NEMA,JIS	Diameter:	0.012-2.00MM
Insulation:	Polyurethane	Color:	Red/Green/Yellow
Thermal Rating:	155
Highlight:	round copper wire , thin coated copper wire

Product Description

INSULATED ULTRA THIN COPPER WIRE SOLDERABILITY FOR HIGH FREQUENCY COILS

FEATURES

With good solderability, reduces coil production costs due to elimination of mechanical or chemical stripping.
Superior ''Q'' characteristic at high frequencies.
Excellent film adhension and flexibility.
Extremely resistant to a variety of solvents including most varnishes and hardener catalysts.

SPECIFICATION

Nominal Diameter	Tolerance	Min. Increase of Diameter	Max. Overall Diameter	Breakdown Voltage	Elongation	Electrical Resistance
mm	mm	mm	mm	≥ V	≥%	Ω/km (20℃)
				Mandrel Method		Min.	Max.
0.012	----	0.013	0.015	50.000	5.00	142.64	157.65
0.013	----	0.015	0.017	70.000	5.00	118.41	133.98
0.014	----	0.016	0.018	70.000	5.00	102.64	120.45
0.015	----	0.017	0.020	80.000	5.00	89.83	104.41
0.016	----	0.018	0.021	90.000	5.00	74.67	97.56
0.017	----	0.019	0.022	90.000	5.00	66.60	85.75
0.018	----	0.020	0.023	100.000	5.00	59.77	75.95
0.019	----	0.021	0.024	100.000	5.00	53.95	67.75
0.020	0.001	0.022	0.024	100.000	8.00	51.83	60.81
0.050	±0.002	0.007	0.062	400.000	12.00	7981.00	9528.00
0.055	±0.002	0.007	0.068	400.000	12.00	6642.00	7815.00
0.060	±0.002	0.007	0.073	500.000	14.00	5614.00	6526.00
0.065	±0.002	0.007	0.078	500.000	14.00	4807.00	5531.00
0.070	±0.002	0.007	0.083	500.000	15.00	4163.00	4747.00
0.075	±0.002	0.007	0.088	550.000	15.00	3640.00	4119.00
0.080	±0.002	0.008	0.094	550.000	16.00	3209.00	3608.00
0.085	±0.002	0.008	0.099	550.000	16.00	2851.00	3187.00
0.090	±0.002	0.010	0.106	650.000	16.00	2550.00	2835.00
0.095	±0.002	0.010	0.111	650.000	17.00	2294.00	2538.00
0.100	±0.002	0.011	0.118	650.000	17.00	2074.00	2286.00
0.110	±0.002	0.011	0.129	----	17.00	1720.00	1882.00
0.120	±0.002	0.011	0.139	----	17.00	1450.00	1577.00
0.130	±0.002	0.011	0.149	----	18.00	1239.00	1340.00
0.140	±0.002	0.011	0.159	----	19.00	1070.00	1153.00
0.150	±0.002	0.011	0.169	----	20.00	934.10	1002.00
0.160	±0.002	0.012	0.180	----	21.00	822.30	879.40
0.170	±0.003	0.013	0.192	----	22.00	721.10	787.10
0.180	±0.003	0.014	0.204	----	22.00	644.40	700.70
0.190	±0.003	0.014	0.214	----	23.00	579.40	627.80
0.200	±0.003	0.014	0.224	----	23.00	523.70	565.70
