| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | 0.2 - 1.0mm |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Stock: | Available | Diameter: | 0.2mm-1.0mm |
|---|---|---|---|
| Conductor: | Round Copper | Solderability:: | Directly |
| High Light: | insulated magnet wire,tiw wire |
||

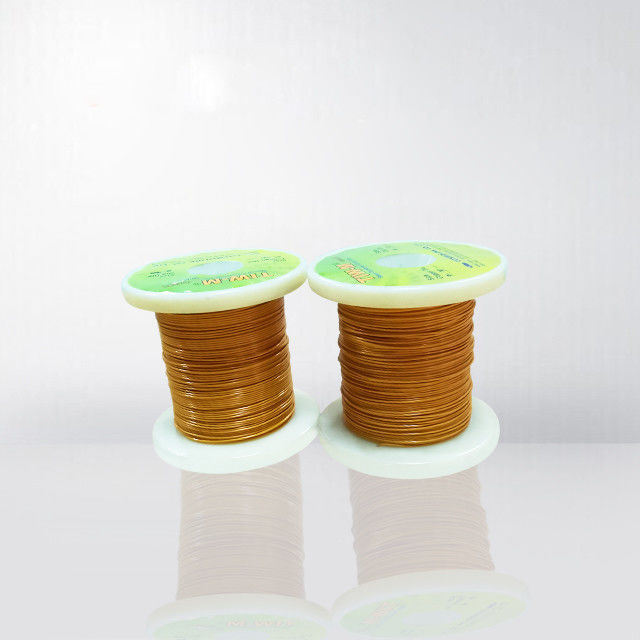

CLASS B F INDUSTRIAL GRADE TRIPLE INSULATED WIRE 0.2-1.0 MM ENAMELED COPPER WIRE FOR TRANSFORMER
Triple Insulated Wires have a prominent feature: no need of interlayer insulation tape or barrier tape between the primary and secondary coils of a transformer. This positive feature of TIW to downsize switching transformers, and promises high production efficiency and cost reduction. TIW paves the way to the design of the most modern switching transformers.
FEATURES AND BENEFITS
a) Excellent resistance to abrasion and solvent,
b) Excellent electricity performance
c) Excellent heat shock, adherence and flexibility,
d) High cut through
APPLICATIONS
MPS for units of Printer, Facsimile, Memory, Computer, Monitor, Inverter,,Game Machine,Battery Charger for assemblies of Digital Camera, Portable Telephone, 8mm VCR,AC Adapter, Personal Computer, DVD,Operating Frequencies: Typically 85 kHz to 200kHz but level with a maximum of 500kHz
SPECIFICATION
|
Nominal |
Tolerance |
Typical |
Maximum |
Maximum |
Unit Weight |
|
0.20 |
±0.008 |
0.420 |
0.460 |
607.6 |
0.409 |
|
0.21 |
±0.008 |
0.430 |
0.470 |
549.0 |
0.444 |
|
0.22 |
±0.008 |
0.440 |
0.480 |
498.4 |
0.478 |
|
0.23 |
±0.008 |
0.450 |
0.490 |
454.5 |
0.513 |
|
0.24 |
±0.008 |
0.460 |
0.510 |
416.2 |
0.550 |
|
0.25 |
±0.008 |
0.470 |
0.510 |
382.5 |
0.588 |
|
0.26 |
±0.010 |
0.480 |
0.520 |
358.4 |
0.628 |
|
0.27 |
±0.010 |
0.490 |
0.530 |
331.4 |
0.669 |
|
0.28 |
±0.010 |
0.500 |
0.540 |
307.3 |
0.713 |
|
0.29 |
±0.010 |
0.510 |
0.550 |
285.7 |
0.756 |
|
0.30 |
±0.010 |
0.520 |
0.560 |
262.9 |
0.802 |
|
0.32 |
±0.010 |
0.540 |
0.580 |
230.0 |
0.897 |
|
0.35 |
±0.010 |
0.570 |
0.610 |
191.2 |
1.050 |
|
0.37 |
±0.010 |
0.590 |
0.630 |
170.6 |
1.160 |
|
0.40 |
±0.010 |
0.640 |
0.680 |
145.3 |
1.353 |
|
0.45 |
±0.010 |
0.690 |
0.730 |
114.2 |
1.673 |
|
0.50 |
±0.010 |
0.740 |
0.780 |
91.43 |
2.028 |
|
0.55 |
±0.020 |
0.790 |
0.830 |
78.15 |
2.417 |
|
0.60 |
±0.020 |
0.840 |
0.880 |
65.26 |
2.842 |
|
0.65 |
±0.020 |
0.890 |
0.930 |
55.31 |
3.302 |
|
0.70 |
±0.020 |
0.940 |
0.980 |
47.47 |
3.796 |
|
0.75 |
±0.020 |
0.990 |
1.030 |
41.19 |
4.325 |
|
0.80 |
±0.020 |
1.040 |
1.080 |
36.08 |
4.890 |
|
0.85 |
±0.020 |
1.090 |
1.130 |
31.87 |
5.488 |
|
0.90 |
±0.020 |
1.140 |
1.180 |
28.35 |
6.123 |
|
0.95 |
±0.020 |
1.190 |
1.230 |
25.38 |
6.719 |
|
1.00 |
±0.030 |
1.240 |
1.280 |
23.33 |
7.495 |
