Name: Triple Insulated Wire 0.15mm Insulated TIW Wire
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: 0.15mm
Price: 24.06 USD
Availability: InStock

Detail Information

Product Name:	Triple Insulated Wire 0.15mm Insulated TIW Wire	Thermal Rating:	155
Single Wire Diameter:	0.15mm	Conductor Material:	Copper
Insualtion:	ETFE
Highlight:	0.15mm triple insulated wire , TIW wire with high insulation , triple insulated electrical wire

Product Description

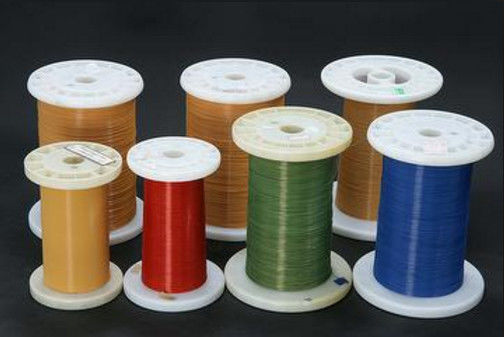

Triple Insulated Wire 0.15mm Insulated TIW Wire

Triple-insulated wire is a special type of conductor specifically designed for use in high-frequency transformers, inductors, and other electrical equipment. Its core feature is its three independent insulation layers. This design makes it superior to ordinary enameled or double-insulated wire in terms of safety and performance.

Main Applications

High-Frequency Transformers (especially switching power supply transformers) widely used in the windings of high-frequency transformers in switching power supplies (SMPS), adapters, chargers, and other equipment
Due to the triple insulation, there is no need for retaining tape or insulating sleeves between the primary and secondary windings, simplifying the winding process and improving space utilization

Product Specifications

Item	Standard	Test Result
Outer diameter of conductor (mm)	0.169mm (Max.)	0.163 \| 0.165 \| 0.163
Enamel coating thickness	0.008mm (min.)	0.013 \| 0.016 \| 0.014
Conductor	0.15±0.003mm	0.15 \| 0.149 \| 0.149
Elongation	15% (min.)	30.6 \| 30.6 \| 30.6
Overall dimension	0.350-0.365mm (max.)	0.359 \| 0.362 \| 0.359
Insulation thickness	0.1±0.01mm (min)	0.099 \| 0.101 \| 0.094
Pinhole	0 M/1 fault (max)	0 \| 0 \| 0
Resistance	1037Ω,km (max)	1007.3 \| 1001.6 \| 1004.8
Breakdown voltage	6KV (min)	16.6 \| 17 \| 17.6
Solderability (±10℃)	450℃ 3s smooth	ok \| ok \| ok

Customization & Support

We support small batch customization with a minimum order quantity of 1000 meters. Our professional team provides technical support and custom specifications are available upon request.

Tag:

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.15mm

Minimum Order Quantity:	3000 meter
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	7 days
Payment Terms:	T/T/Paypal
Supply Ability:	1Ton/Month
