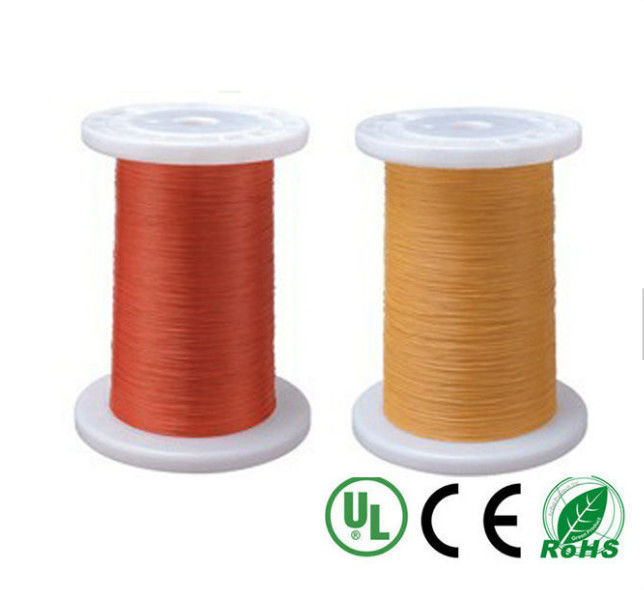

Name: UL Certificated Professional Stranded Triple Insulated Wire Copper Winding Wire TIW for transformers
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: 0.15mm
Price: 24.06 USD
Availability: InStock

Detail Information

Product Name:	UL Certificated Professional Stranded Triple Insulated Wire Copper Winding Wire TIW For Transformers	Thermal Rating:	155
Single Wire Diameter:	0.15mm	Conductor Material:	Copper
Insualtion:	ETFE
Highlight:	UL certified triple insulated wire , stranded copper winding wire , transformer TIW wire

Product Description

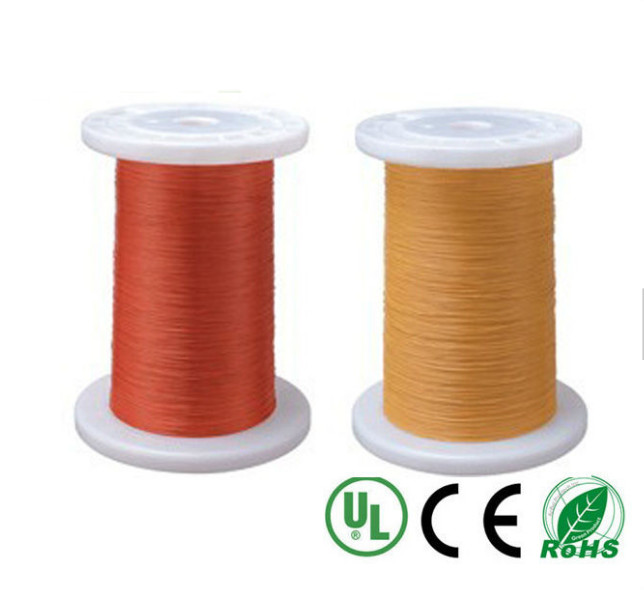

UL Certificated Professional Stranded Triple Insulated Wire Copper Winding Wire TIW for Transformers

UL Certificated Professional Stranded Triple Insulated Wire Copper Winding Wire TIW for transformers

Structure and Advantages of TIW Wire

Three-layer insulation structure: Typically from the inside out:

First layer: Base coating (e.g., polyurethane)
Second layer: Polymer film (e.g., polyester or polyamide)
Third layer: High-strength outer layer (e.g., nylon or special resin)

Advantages:

High dielectric strength: Can withstand thousands of volts without breakdown
No additional insulation required: Simplifies production processes and reduces labor and material costs
Good heat resistance: Typically withstands temperatures from 105°C to 130°C or even higher
High mechanical strength: Scratch-resistant and resistant to winding stress, reducing the risk of breakage during production

Product Specifications

Item	Standard	Test Result
Outer diameter of conductor (mm)	0.169mm(Max.)	0.163 \| 0.165 \| 0.163
Enamel coating thickness	0.008mm(min.)	0.013 \| 0.016 \| 0.014
Conductor	0.15±0.003mm	0.15 \| 0.149 \| 0.149
Elongation	15%(min.)	30.6 \| 30.6 \| 30.6
Overall dimension	0.350-0.365mm(max.)	0.359 \| 0.362 \| 0.359
Insulation thickness	0.1±0.01mm(min)	0.099 \| 0.101 \| 0.094
Pinhole	0 M/1 fault(max)	0 \| 0 \| 0
Resistance	1037Ω,km(max)	1007.3 \| 1001.6 \| 1004.8
Breakdown voltage	6KV(min)	16.6 \| 17 \| 17.6
Solderability(±10℃)	450℃ 3s smooth	ok \| ok \| ok

Customization & Support

We support small batch customization with a minimum order quantity of 1000 meters. Our professional team provides technical support and custom specifications are available upon request.

Tag:

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.15mm

Minimum Order Quantity:	3000 meter
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	7 days
Payment Terms:	T/T/Paypal
Supply Ability:	1Ton/Month
