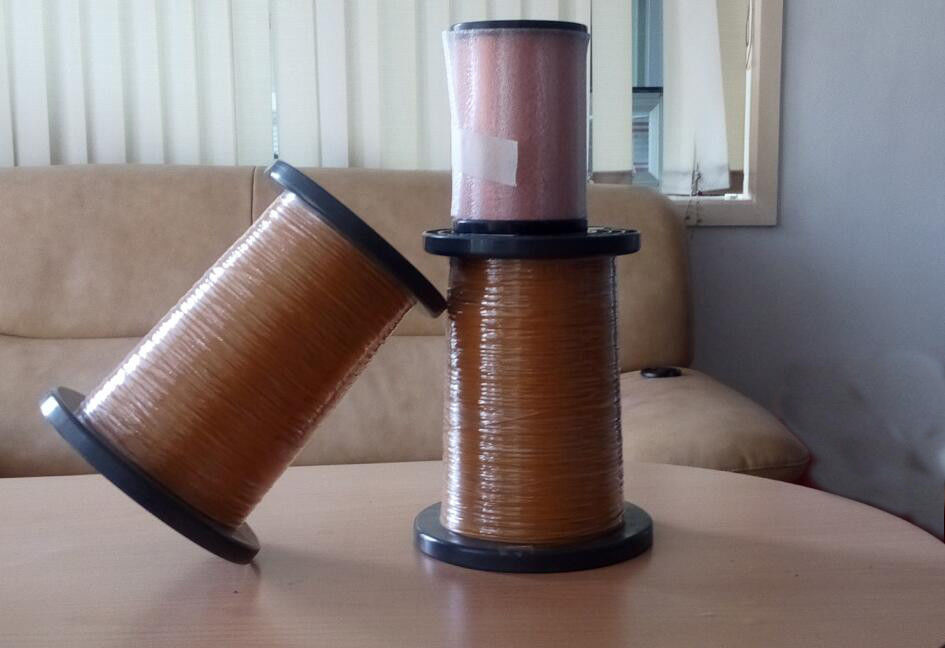

Name: Transformer Using TIW-B Triple Insulated Copper Winding Wire
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: 0.15mm
Price: 24.06 USD
Availability: InStock

Detail Information

Product Name:	Transformer Using TIW-B Triple Insulated Copper Winding Wire	Thermal Rating:	155
Single Wire Diameter:	0.15mm	Conductor Material:	Copper
Insualtion:	ETFE
Highlight:	TIW-B triple insulated copper wire , transformer winding wire , triple insulated copper winding

Product Description

Transformer Using TIW-B Triple Insulated Copper Winding Wire

Product Overview

High-performance triple insulated copper winding wire designed for transformers requiring enhanced safety and reliability in demanding applications.

Typical Application Areas

Consumer Electronics: Mobile phone chargers, LED driver power supplies
Industrial Equipment: Inverters, servo drives
Medical Equipment: Isolated power supply modules
New Energy: Photovoltaic inverters, electric vehicle charging modules
Communication Equipment: Network transformers, isolated DC-DC converters

Product Specifications

Item	Standard	Test Result 1	Test Result 2	Test Result 3
Outer diameter of conductor (mm)	0.169mm (Max.)	0.163	0.165	0.163
Enamel coating thickness	0.008mm (min.)	0.013	0.016	0.014
Conductor	0.15±0.003mm	0.15	0.149	0.149
Elongation	15% (min.)	30.6	30.6	30.6
Overall dimension	0.350-0.365mm (max.)	0.359	0.362	0.359
Insulation thickness	0.1±0.01mm (min)	0.099	0.101	0.094
Pinhole	0 M/1 fault (max)	0	0	0
Resistance	1037Ω,km (max)	1007.3	1001.6	1004.8
Breakdown voltage	6KV (min)	16.6	17	17.6
Solderability (±10℃)	450℃ 3s smooth	ok	ok	ok

Customization & Support

We support small batch customization with a minimum order quantity of 1000 meters. Our professional team provides technical support and custom specifications are available upon request.

Tag:

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.15mm

Minimum Order Quantity:	3000 meter
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	7 days
Payment Terms:	T/T/Paypal
Supply Ability:	1Ton/Month
