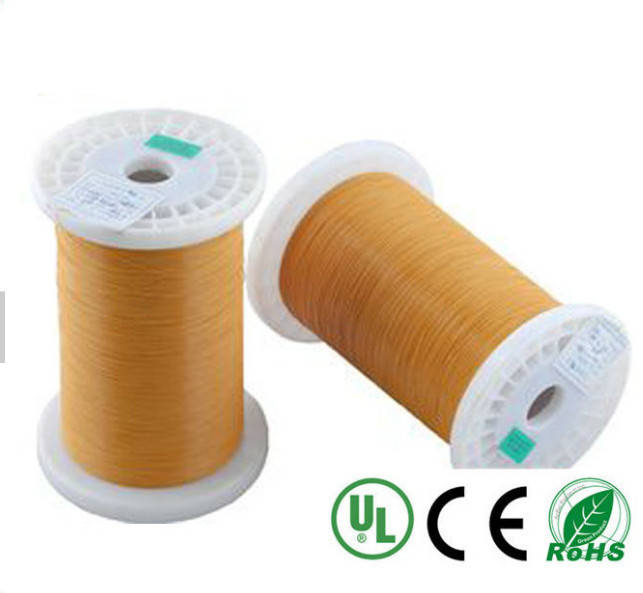

Name: TIW-B/F Triple Insulated Wire 0.15mm Insulated TIW Wire For Transformer
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: 0.15mm
Price: 24.06 USD
Availability: InStock

Detail Information

Product Name:	TIW-B/F Triple Insulated Wire 0.15mm Insulated TIW Wire For Transformer	Thermal Rating:	155
Single Wire Diameter:	0.15mm	Conductor Material:	Copper
Insualtion:	ETFE
Highlight:	0.15mm triple insulated wire , TIW transformer wire , triple insulated wire for transformers

Product Description

TIW-B/F Triple Insulated Wire 0.15mm Insulated TIW Wire For Transformer

Main Applications

High-Frequency Transformers: Widely used in the windings of high-frequency transformers in switching power supplies (SMPS), adapters, chargers, and other equipment. Due to the triple insulation, there is no need for retaining tape or insulating sleeves between the primary and secondary windings, simplifying the winding process and improving space utilization.
Applications with High Safety Isolation Requirements: Used in equipment requiring compliance with stringent safety standards (such as IEC, UL, EN, etc.), such as medical equipment, industrial control systems, and communication equipment. Capable of meeting reinforced or double insulation requirements, reducing design stresses related to clearances and creepage distances.
High-Density Winding Design: Due to the high insulation strength, the windings can be arranged more closely, facilitating transformer miniaturization and weight reduction.

Product Specifications

Item	Standard	Test Result
Outer diameter of conductor (mm)	0.169mm (Max.)	0.163 \| 0.165 \| 0.163
Enamel coating thickness	0.008mm (min.)	0.013 \| 0.016 \| 0.014
Conductor	0.15±0.003mm	0.15 \| 0.149 \| 0.149
Elongation	15% (min.)	30.6 \| 30.6 \| 30.6
Overall dimension	0.350-0.365mm (max.)	0.359 \| 0.362 \| 0.359
Insulation thickness	0.1±0.01mm (min)	0.099 \| 0.101 \| 0.094
Pinhole	0 M/1 fault (max)	0 \| 0 \| 0
Resistance	1037Ω,km (max)	1007.3 \| 1001.6 \| 1004.8
Breakdown voltage	6KV (min)	16.6 \| 17 \| 17.6
Solderability (±10℃)	450℃ 3s smooth	ok \| ok \| ok

Customization & Support

We support small batch customization with a minimum order quantity of 1000 meters. Our professional team provides technical support and custom specifications are available upon request.

Tag:

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.15mm

Minimum Order Quantity:	3000 meter
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	7 days
Payment Terms:	T/T/Paypal
Supply Ability:	1Ton/Month
