Round Triple Insulated Wire 0.2 - 1.0mm Self Bonding Copper Wire For Printer

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: 0.2mm-1.0mm
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation, T/T, L/C
Supply Ability: Satisfy your demand
Detail Information
Diameter: 0.2mm-1.0mm Conductor: Round Copper
Stock: Available Thermal Class: 130/155/180/200/220
High Light:

insulated magnet wire

,

insulated copper wire


Product Description

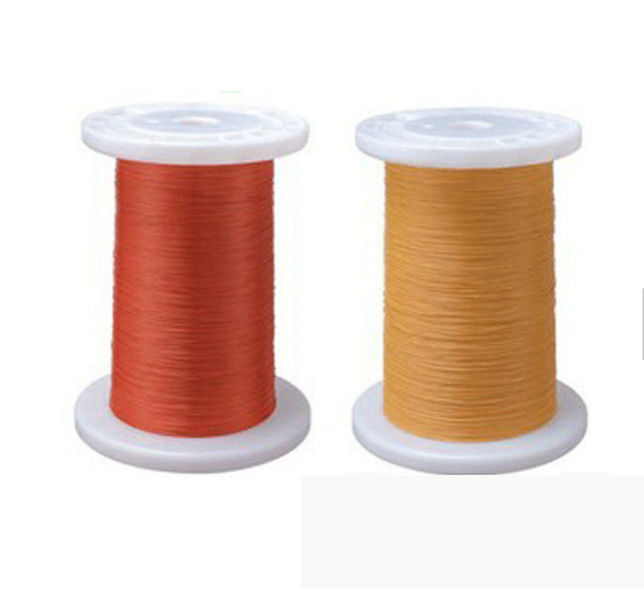

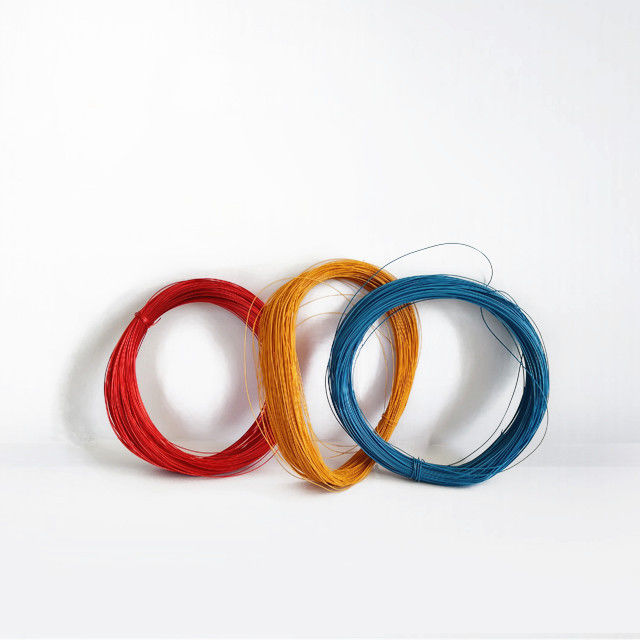

ROUND TRIPLE INSULATED WIRE 0.2*1.0MM SELF BONDING COPPER WIRE FOR PRINTER
Unlike enameled wires, 3 layers of insulation of patented design are extruded over the copper conductor. IEC60950 requires some Reinforced Insulation between the primary and secondary coils. Thus enamelled wire transformers can never omit the insulation tape or barrier tape: enamel coatings give poor electric insulation. In contrast, TIW can form primary and secondary coils without a need of barrier tape or interlayer tape in-between. Each TIW wire is equipped with a three-fold insulation around the conductor, which has been authorized as Reinforced Insulation. As a result, the creepage distance can never be limited and no insulation barrier is needed, when specifying distances between termination pins and coils.
FEATURES AND BENEFITS

  • Certified as Reinforced Insulation; tree layers can resist up to 3,000 ACV for one minute.

  • Falling into Thermal Resistance A(105°C) to E(120°C) Click "Proof of Safety & Reliability" for higher temp conditions.

  • Soldered without any surface layer bared (stripped).

  • Smoothly coiled by automatic coiling machines.

  • Offering a wide size choice of 0.2 to 1.0mm (conductor diameter)

Applications:
MPS for units of Printer, Facsimile, Memory, Computer, Monitor, Inverter,Game Machine,Battery Charger for assemblies of Digital Camera, Portable Telephone, 8mm VCR,AC Adapter, Personal Computer, DVD,Operating Frequencies: Typically 85 kHz to 200kHz but level with a maximum of500kHz

Round Triple Insulated Wire 0.2 - 1.0mm Self Bonding Copper Wire For Printer 0
SPECIFICATION

Nominal
conductor
diameter
(mm)

Tolerance
(mm)

Typical
overall
diameter
(mm)

Maximum
overall
diameter
(mm)

Maximum
conductor
resistance
(/km)

Unit Weight
(kg/km)

0.20

±0.008

0.420

0.460

607.6

0.409

0.21

±0.008

0.430

0.470

549.0

0.444

0.22

±0.008

0.440

0.480

498.4

0.478

0.23

±0.008

0.450

0.490

454.5

0.513

0.24

±0.008

0.460

0.510

416.2

0.550

0.25

±0.008

0.470

0.510

382.5

0.588

0.26

±0.010

0.480

0.520

358.4

0.628

0.27

±0.010

0.490

0.530

331.4

0.669

0.28

±0.010

0.500

0.540

307.3

0.713

0.29

±0.010

0.510

0.550

285.7

0.756

0.30

±0.010

0.520

0.560

262.9

0.802

0.32

±0.010

0.540

0.580

230.0

0.897

0.35

±0.010

0.570

0.610

191.2

1.050

0.37

±0.010

0.590

0.630

170.6

1.160

0.40

±0.010

0.640

0.680

145.3

1.353

0.45

±0.010

0.690

0.730

114.2

1.673

0.50

±0.010

0.740

0.780

91.43

2.028

0.55

±0.020

0.790

0.830

78.15

2.417

0.60

±0.020

0.840

0.880

65.26

2.842

0.65

±0.020

0.890

0.930

55.31

3.302

0.70

±0.020

0.940

0.980

47.47

3.796

0.75

±0.020

0.990

1.030

41.19

4.325

0.80

±0.020

1.040

1.080

36.08

4.890

0.85

±0.020

1.090

1.130

31.87

5.488

0.90

±0.020

1.140

1.180

28.35

6.123

0.95

±0.020

1.190

1.230

25.38

6.719

1.00

±0.030

1.240

1.280

23.33

7.495
